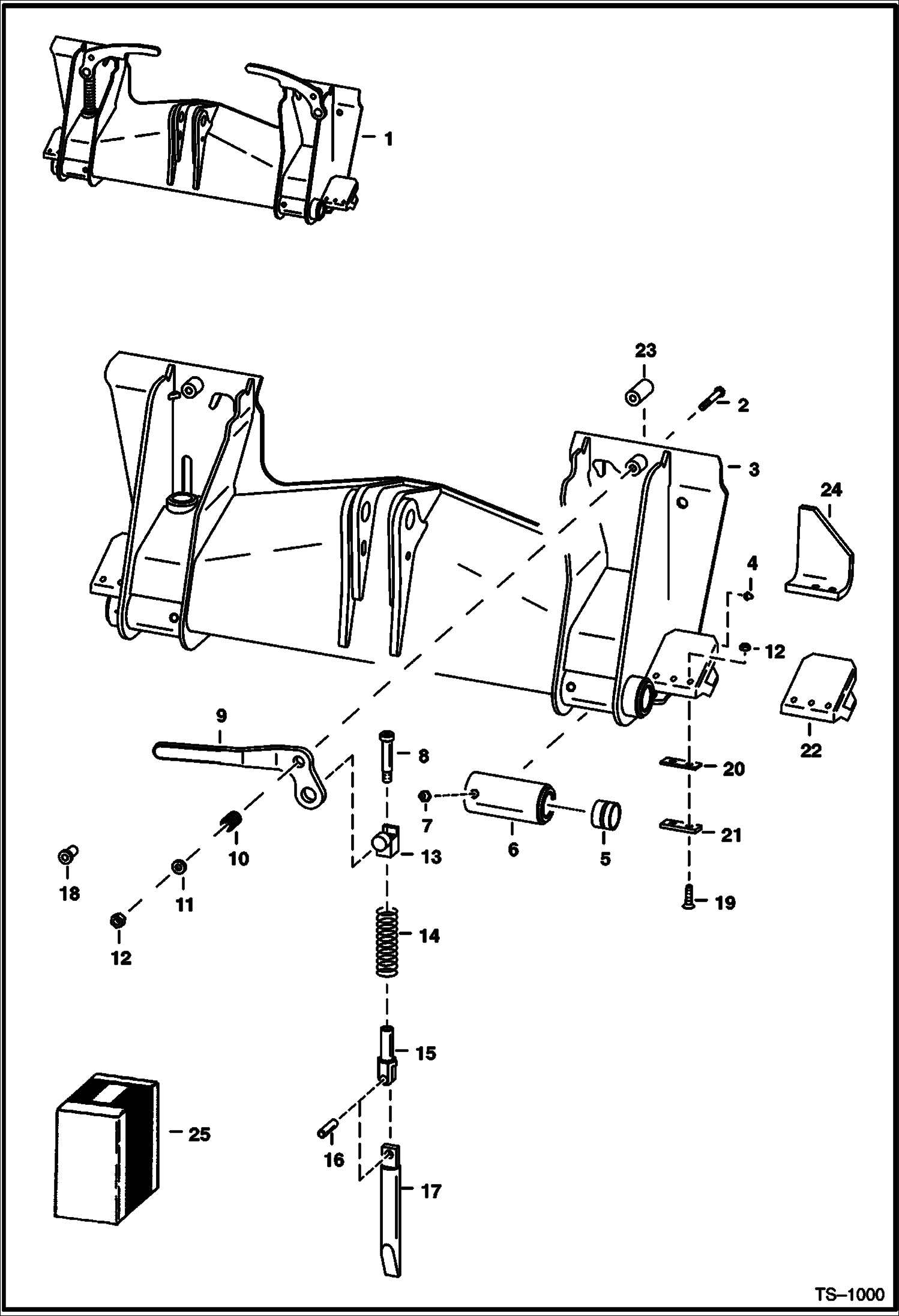

Запчасти Bobcat 800s BOB-TACH MAIN FRAME

1

6577986

BOB-TACH See Illustration DECALS/ B20242 Ref. 2-24 - Also Order 6561383 Decal - Was SALES - D

2

17C644

BOLT See Ref. 10 & 11

2

17C660

BOLT See Ref. 10 & 11 - 3.75'' (95,3mm) long - in kit

3

FRAME NLA

4

10H35

FITTING, GREASE 10

5

6730997

BUSHING, WELD-ON Press Fit - Was 711273 - A

6

6578703

BUSHING Weld - On - W/Ref. 5 - Was 6578704 - A

7

743332

FITTING, GREASE 5

8

6728473

BOLT, SHOULDER pre-applied thread locker - Was 38C1036 - A

9

6702904

LEVER, BOB-TACH RH

9

6702903

LEVER, BOB-TACH LH

10

6704453

SPRING Use W/17C-644 bolt

10

6713040

SPRING Use W/Ref. 2 (17C660 Bolt) - in kit

11

6557831

WASHER Use W/17C-644 bolt

11

619021

WASHER, 5 Use W/Ref. 2 (17C660 Bolt) - in kit

12

85D6

NUT, 5

13

6704240

PIVOT ASSY. 0.75'' long pin - not in kit - Was 6576456 - A

13

6731119

PIVOT, WEDGE 50 mm (1.95'') long pin - in kit

14

6578253

SPRING, COMPRESSION Was 6562018 - A

15

6704248

PIVOT, WEDGE Was 6576454 - A

16

14J5032

PIN, STRAIGHT

17

6737191

WEDGE Was 6704242 - A

18

6575636

BUSHING Lever

19

9G620

BOLT 5

20

6579106

SHIM .125

20

6707514

SHIM .06

21

6579104

SHIM .250

22

STOP NLA - R.H. Plate - Weld On - Order 6713526 - Was 6704604 - A

22

STOP NLA - L.H. Plate - Weld On - Order 6713526 - Three Hole - Was 6704603 - A

22

6713526

STOP Weld On - Two Hole

23

6702958

BUSHING, WELD-ON

24

STOP NLA - R.H. Plate - Order 6713526

24

STOP NLA - L.H. Plate - Order 6713526

25

6724775

LEVER KIT RH - Bob-Tach - Ref. 2 & 8-17

25

6724776

LEVER KIT LH - Bob-Tach - Ref. 2 & 8-17
