Запчасти Bobcat 800s AIR CLEANER POWER UNIT

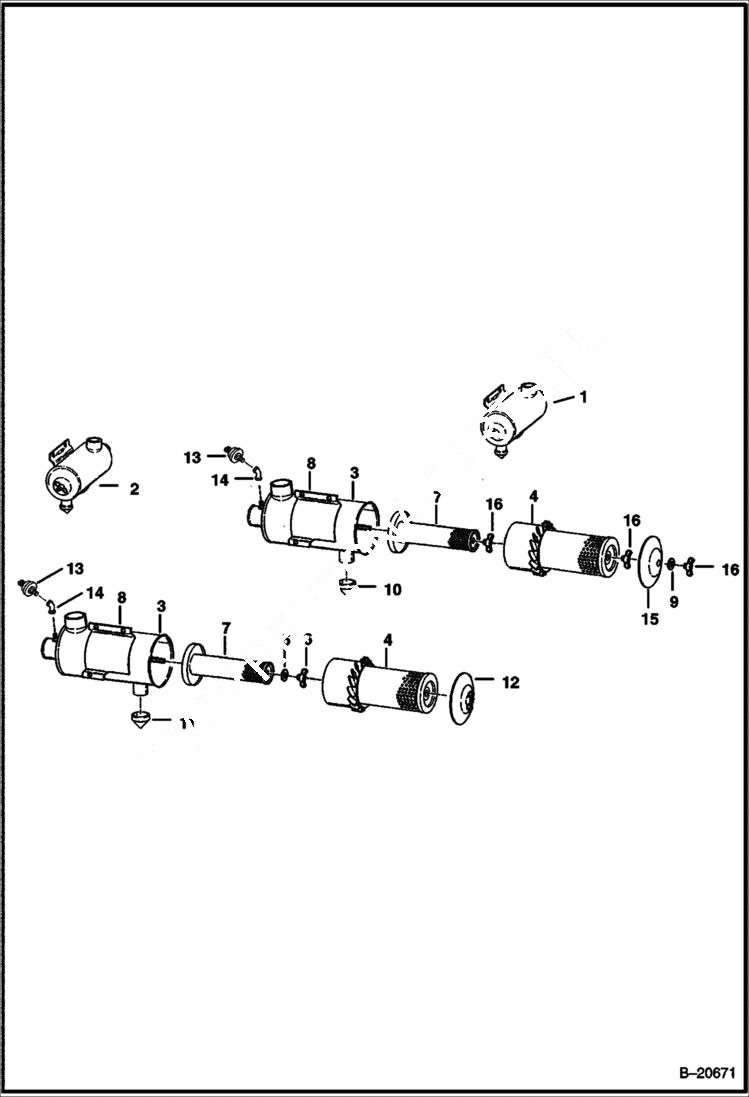

Схема запчастей Bobcat 800s - AIR CLEANER POWER UNIT

Артикул

Название

Примечание

Количество

1

6661400

AIR CLEANER W/ 1.5 in. Evacuator Valve - Ref. 4, 7, 8, 9, 10, and 13-16

2

AIR CLEANER NLA - W/ 2'' Evacuator Valve - Ref. 3 - 8 & 11 - 14 - Order 6661400 Air Cleaner - Was 6653506 - A

3

TANK NLA

4

6598492

ELEMENT

5

SHIM NLA - Was 888527 - A

6

3291290

NUT

7

6598362

ELEMENT

8

866028

CLAMP

9

6661244

WASHER

10

6655938

VALVE, EVACUATOR 38 mm (1.5'') ID

11

6655937

VALVE, EVCACUATOR 2'' (50,8 mm) ID

12

6630941

COVER W/Wing Nut

13

6665371

SWITCH See Illustration ENGINE ELECTRICAL CIRCUITRY/ E2266 condition indicator

14

6725502

ELBOW See Illustration ENGINE ELECTRICAL CIRCUITRY/ E2266 Was 23F000001B - A

15

6661242

COVER

16

6661243

WING NUT

Выбрано товаров: 16
