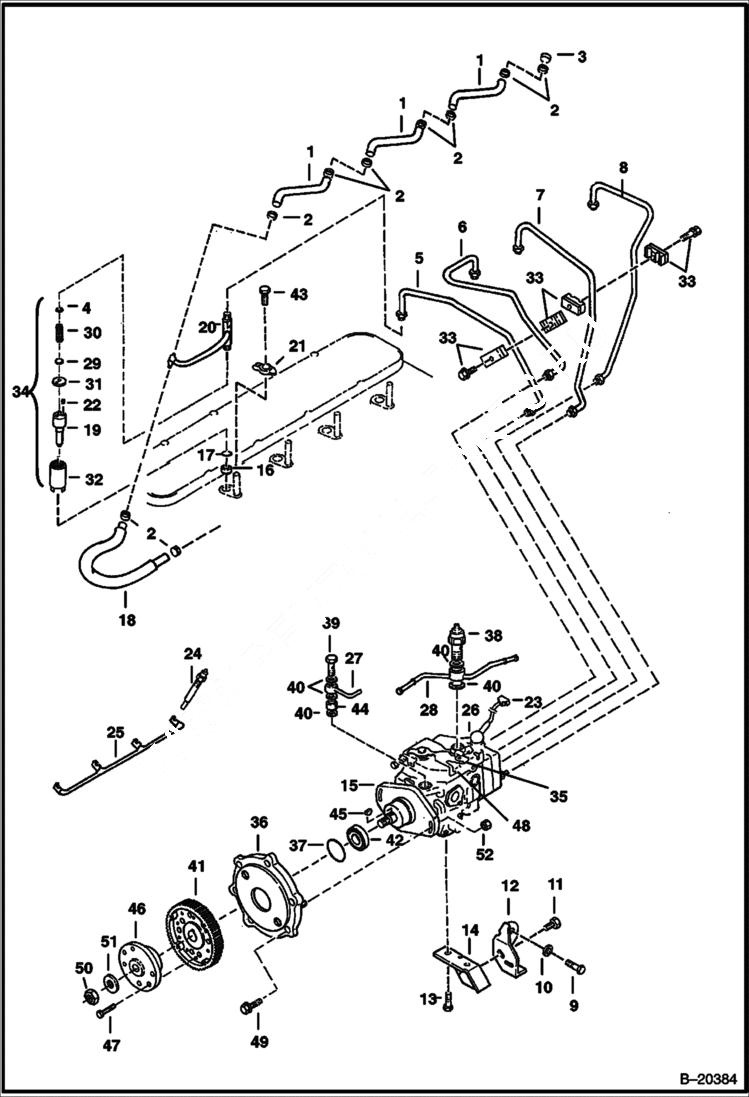

Запчасти Bobcat 800s FUEL INJECTION SYSTEM POWER UNIT

1

6631822

HOSE

2

6631849

CLAMP

3

6658203

CAP

4

6648013

SHIM .500 mm

4

6648014

SHIM .525 mm

4

6648015

SHIM .550 mm

4

6648016

SHIM .575 mm

4

6648017

SHIM .600 mm

4

6648018

SHIM .625 mm

4

6648019

SHIM .650 mm

4

6648020

SHIM .675 mm

4

6648021

SHIM .700 mm

4

6648022

SHIM .725 mm

4

6648023

SHIM .750 mm

4

6648024

SHIM .775 mm

4

6648025

SHIM .800 mm

4

6648026

SHIM .825 mm

4

6648027

SHIM .850 mm

4

6648028

SHIM .875 mm

4

6648029

SHIM .900 mm

4

6648030

SHIM .925 mm

4

6648031

SHIM .950 mm

4

6648032

SHIM .975 mm

4

6648033

SHIM 1.000 mm

4

6648034

SHIM 1.025 mm

4

6648035

SHIM 1.050 mm

4

6648036

SHIM 1.075 mm

4

6648037

SHIM 1.100 mm

4

6648038

SHIM 1.125 mm

4

6648039

SHIM 1.150 mm

4

6648040

SHIM 1.175 mm

4

6648041

SHIM 1.200 mm

4

6648042

SHIM 1.225 mm

4

6648043

SHIM 1.250 mm

4

6648044

SHIM 1.275 mm

4

6648045

SHIM 1.300 mm

4

6648046

SHIM 1.325 mm

4

6648047

SHIM 1.350 mm

4

6648048

SHIM 1.375 mm

4

6648049

SHIM 1.400 mm

4

6648050

SHIM 1.425 mm

4

6648051

SHIM 1.450 mm

4

6648052

SHIM 1.475 mm

4

6648053

SHIM 1.500 mm

5

6658204

PIPE injection - No. 1

6

6658205

PIPE injection - No. 2

7

6658206

PIPE injection - No. 3

8

6658207

PIPE injection - No. 4

9

3676976

BOLT

10

3674002

WASHER

11

6661091

BOLT

12

6631790

BRACKET

13

6631881

BOLT

14

6631791

BRACKET

15

PUMP, FUEL INJ NLA - Was 6658210 - A

15

6658210REM

PUMP, FUEL INJ

16

6631775

SEAL

17

6655312

O-RING

18

6631826

HOSE

19

6631857

NOZZLE

20

6658200

HOLDER nozzle - W/Ref. 32

21

6631813

BRACKET

22

6658189

PIN

23

6660220

WIRE

24

6631808

GLOW PLUG

25

6631789

CONNECTOR glow plug

26

6630546

SOLENOID fuel shut-off

27

6646744

LINE

28

6646745

LINE

29

6658190

SEAT

30

6646747

SPRING

31

6646748

SPACER

32

6646749

NUT retaining

33

3674076

CLIP

34

6646906

INJECTOR REF. 4, 19, 22, 29 & 30-32 - Also Order Ref. 16 & 17

35

6648012

LEVER

36

6650621

BRACKET

37

6650622

O-RING

38

6651849

BOLT

39

6651850

BOLT

40

6651851

GASKET

41

6658695

GEAR

42

6652518

SEAL

43

6658198

BOLT

44

6660949

SPACER

45

6668723

KEY

46

6669667

COUPLER

47

6669668

BOLT

48

6670557

SPRING

49

6673936

BOLT

49

6673937

BOLT

49

6661091

BOLT

50

6673943

NUT

51

6673942

WASHER

52

6673944

NUT
