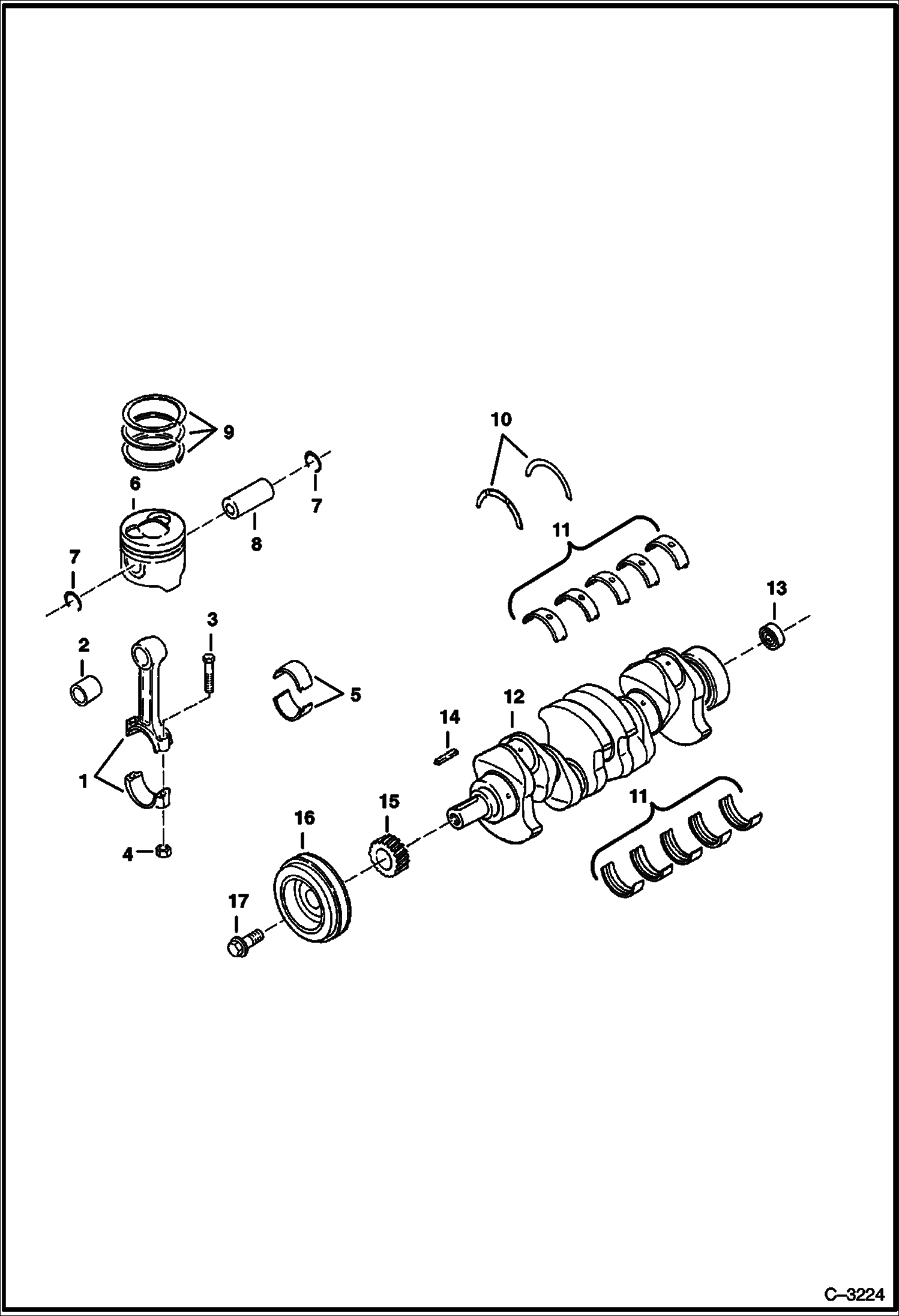

Запчасти Bobcat 800s PISTON & CRANKSHAFT POWER UNIT

1

6655864

ROD connecting - W/Ref. 2-4

2

6631859

BUSHING

3

6631748

BOLT

4

6631735

NUT

5

6655313

BEARING conn. rod

6

6655863

PISTON For A or C Piston

7

6631793

SNAP RING

8

6631860

PIN

9

6631854

RING SET std.

10

6655932

BEARING thrust

11

6631841

KIT main bearing - W/Ref. 10

12

CRANKSHAFT NLA - Was 6631769 - A

12

6679766

CRANKSHAFT

13

6631878

BEARING

14

6512743

KEY For Ref. 12 (NLA/6631769)

14

6679944

KEY For Ref. 12 (6679766)

15

6631804

GEAR

16

6658209

PULLEY

16

6664474

PULLEY 3-groove

17

6660666

BOLT
