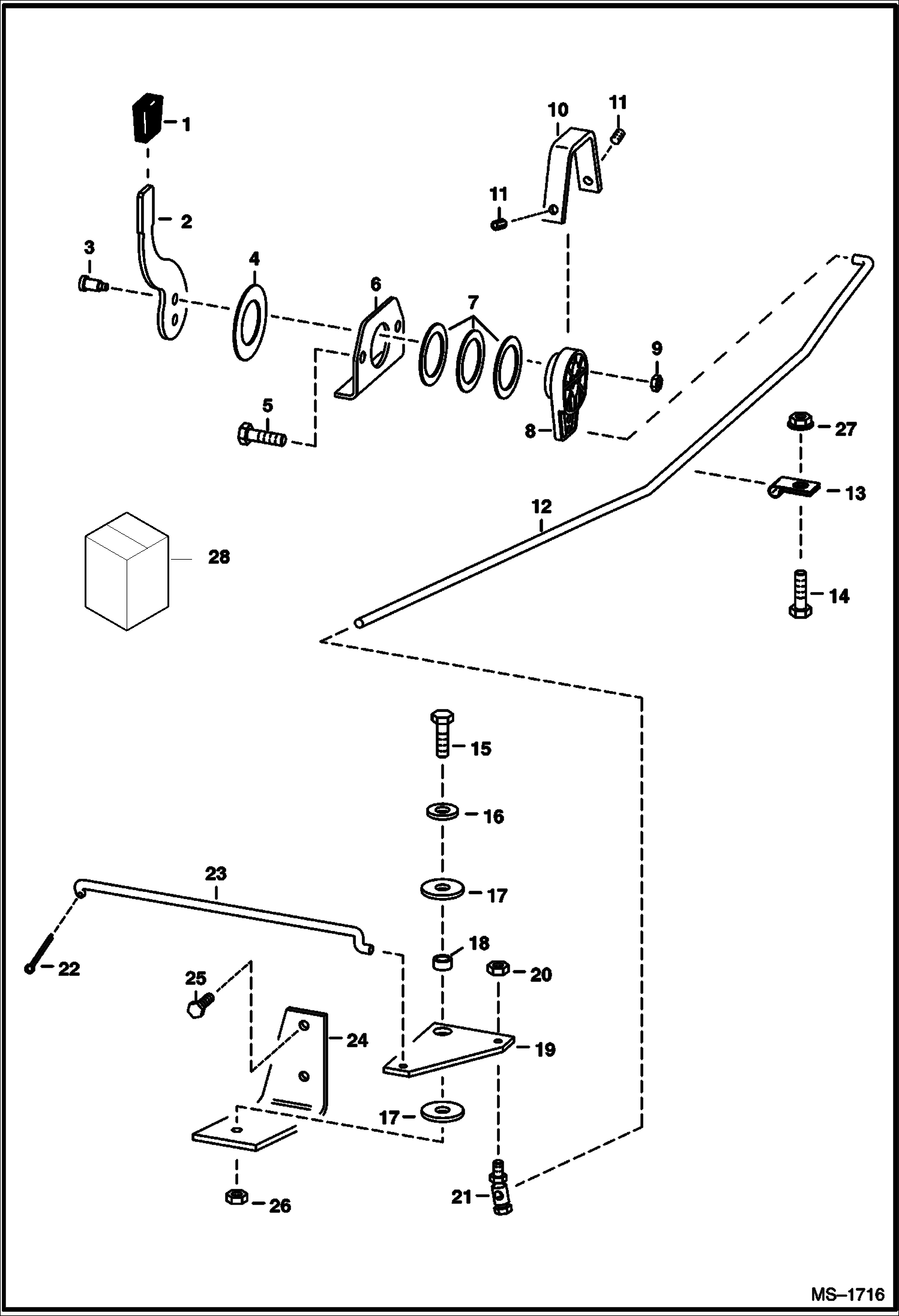

Запчасти Bobcat 800s THROTTLE POWER UNIT

1

6564452

GRIP

1

HOUSING ASSY Ref. 2-25 - Was 6702139 - A

2

6705452

LEVER

3

38C610

BOLT shoulder

4

6567962

WASHER

5

17C624

BOLT 5 Was 84G003724B - B,D

6

6576262

MOUNT

7

6630945

WASHER

8

LEVER NLA - 2-hole rod attachment - Order 6734416 lever - Was 6709022 - A

8

6734416

LEVER 3-hole rod attachment

9

85D5

NUT 5

10

6576261

COVER

11

6706572

SET SCREW

12

6579741

ROD

13

30H19

CLIP

14

17C512

BOLT 5

15

84G3720

BOLT

16

25E18

WASHER

17

6700170

WASHER plastic

18

6564343

SPACER

19

6701187

BELLCRANK

20

85D4

NUT 5

21

6557291

BALL JOINT

22

6631418

RING, RETAINING

23

6579740

ROD

24

6579743

MOUNT

25

1CM820

BOLT

26

85D6

NUT, 5

27

61D5

NUT
