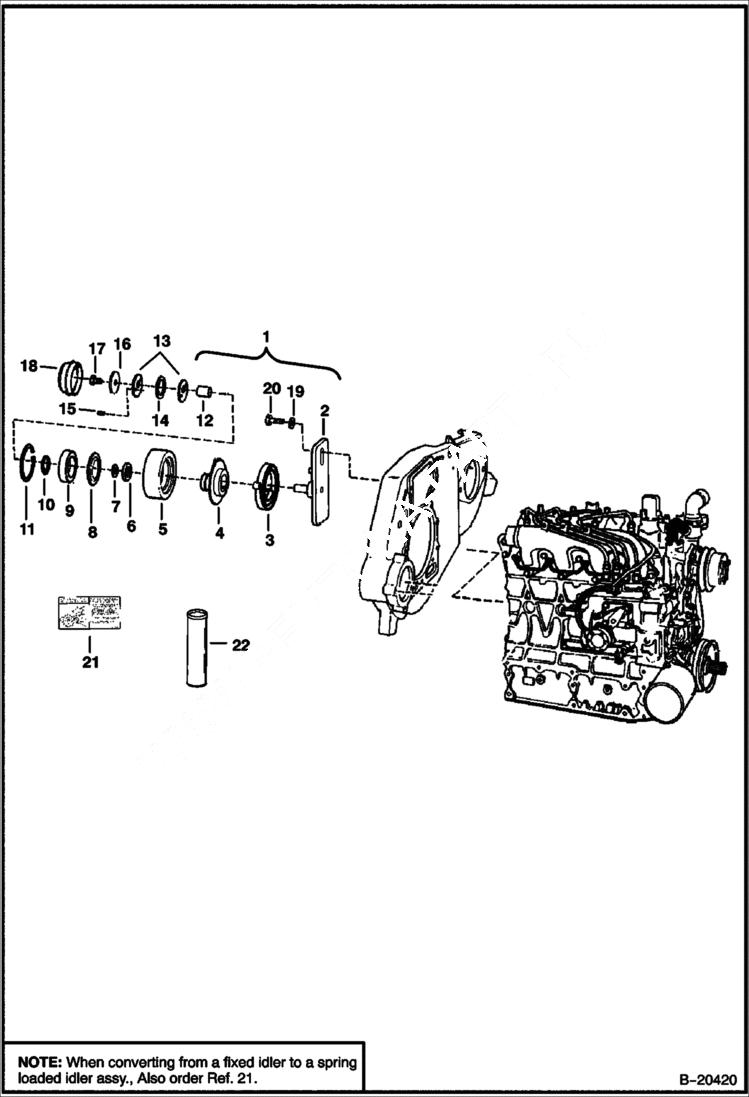

Запчасти Bobcat 800s ENGINE & ATTACHING PARTS (Spring Loaded Idler) POWER UNIT

1

6901216

IDLER, BELT DRIVE ASSY REF. 2 - 18 - Also Order Ref. 21 - SEE NOTE - Was 6711698 - A

1

6714212

PULLEY ASSY. Ref. 4 - 12

2

6735883

BRACKET Was 6708767 - A

3

6705491

SPRING torsion

4

6711699

HUB ASSY.

5

6704391

PULLEY idler

6

6661112

SEAL

7

6703168

BEARING thrust

8

6664209

SEAL

9

6668114

BEARING ball

10

6658536

RING

11

6658847

RING

12

6704393

BEARING bronze sleeve

13

6705231

WASHER

14

6710585

WASHER wave spring

15

6713370

PIN Was 14J001808B - A

16

6705232

WASHER

17

17C610

BOLT

18

6708770

CAP dust

19

6704484

WASHER thrust

20

17C620

BOLT

21

6711905

DECAL belt tension - SEE NOTE - Was 6709030 - B,D

22

6903122

GREASE, MULTI PURPOSE #2 - 10 Use W/Ref. 1 - Was 6599719 - A
