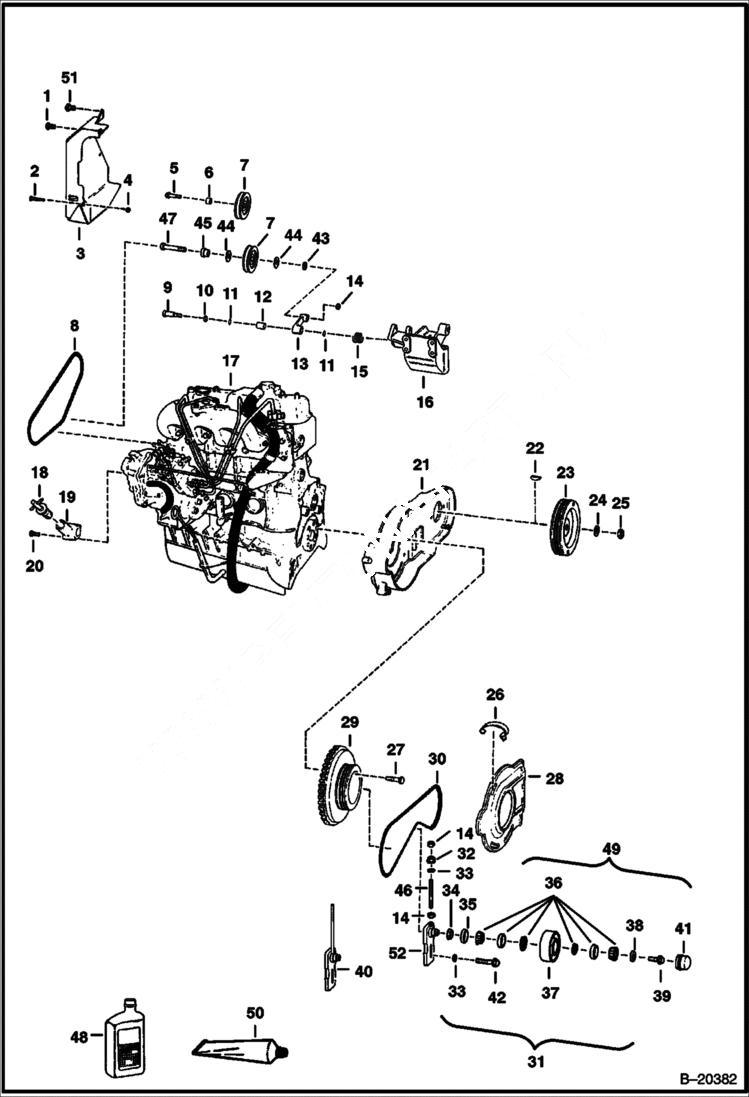

Запчасти Bobcat 800s ENGINE & ATTACHING PARTS (Belt Drive System) POWER UNIT

1

1CM812

BOLT

2

35C528

SCREW

3

6579759

SHIELD

4

61D5

NUT

5

35C628

BOLT

6

6578452

SPACER

7

6662997

PULLEY, FAN DRIVE IDLER cooling fan drive idler

8

6701265

BELT, FAN cooling fan drive

8

6659248

BELT cooling fan drive - 853 HHH

9

38C820

SCREW

10

6655781

BEARING thrust

11

6704820

O-RING

12

BEARING NLA - bronze - Was 6655780 - A

12

6670682

BEARING nylon

13

6725212

ARM W/Ref. 12 - Was 6703507 - A

14

61D6

NUT 5

15

6700722

SPRING

16

6706165

MOUNT

17

ENGINE See Illustration ENGINE & GASKET KITS/ B13269

18

6649962

OIL FILL CAP oil fill

19

6568956

OIL FILL TUBE

20

1CM650

SCREW Was 1CM-656 - D

21

6578951

MOUNT

22

6J807

KEY, WOODRUFF

22

6682261

KEY square key

23

6705807

PULLEY hyd. pump - 4 groove

24

6576033

WASHER

25

92D12

NUT

26

6701160

CLIP

27

6665036

BOLT

28

6705808

SHIELD

29

6705805

FLYWHEEL 4 groove

29

6513662

RING GEAR

30

6662855

BELT, DRIVE pump drive - 4 groove

30

6660766

BELT, DRIVE Pump Drive - 3 Groove

31

IDLER ASSY See BTI322 NLA - fixed - Order 6901216 (Idler assy) - Ref. 14, 34-39, 46 and 52 - 4 groove - Was 6708606 - A

32

57D6

NUT 5

33

616783

WASHER

34

6661070

SLEEVE wear - Also order Ref. 35

35

6661066

SEAL Also Order Ref. 34

36

BEARING NLA - Order Ref. 49

37

6707191

PULLEY Also Order Ref. 49 - 4 groove

38

6704484

WASHER

39

35C612

BOLT

40

BRACKET See BTI322 NLA - Order 6901216 (idler assy) - 4 groove - Was 6705859 - A

41

6660967

CAP grease

42

17C620

BOLT

43

6704444

WASHER

44

6660995

GREASE RING grease

45

6704443

BUSHING spacer

46

6708598

ROD

47

17C636

BOLT

48

6661405

OIL quart can - For Use W/Ref. 31

49

6722248

REPAIR KIT bearing - Ref. 34-36 & 41

50

6633583

SEALANT, POLYURETHANE 300 ML Use W/Ref. 34 & 40 and W/Ref. 37 & 41

51

1CM870

BOLT

52

BRACKET See Illustration ENGINE & ATTACHING PARTS/ B20420 NLA - Order 6711698 - Was 6708567 - A
