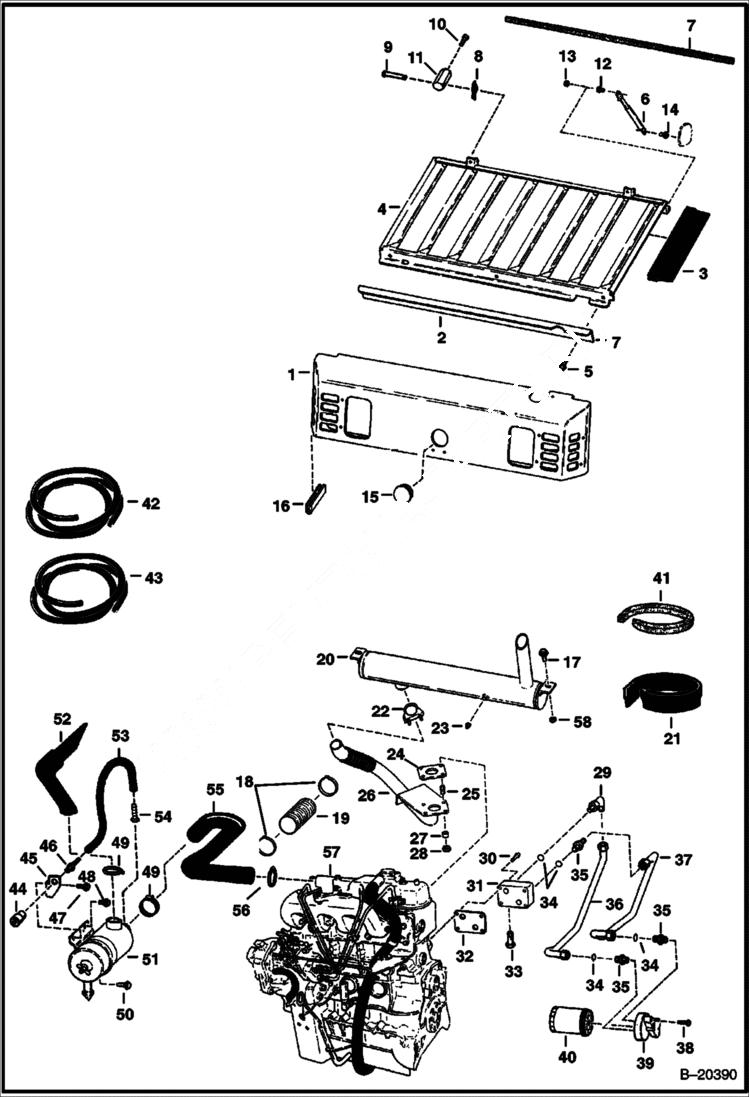

Запчасти Bobcat 800s ENGINE & ATTACHING PARTS (Air Cleaner, Muffler & Grill) (W/O B.O.S.S Option) POWER UNIT

1

6703868

HOOD steel

2

6708981

BRACKET Was 6703471 - A

3

MOULDING NLA - 19''(482,6 mm) long - Order Ref. 21

4

6705132

GRILL

5

84G3112

BOLT 5

6

6674285

GAS SPRING Was 6673758 - A

7

MOULDING NLA - 34.5''(876mm)long-Order Ref. 41

8

6631418

RING, RETAINING

9

6567743

PIN

10

17C608

BOLT

11

6579326

MOUNT

12

6649244

BALL STUD

13

61D5

NUT

14

6705052

BALL STUD weld on

15

6718796

PLUG Was 6660646 - A

16

MOULDING NLA - 3.5'' (89 mm)long - Order Ref. 42

17

35C612

BOLT

18

6664004

CLAMP

19

6706394

SHIELD 203 mm (8'') long

20

6661769

MUFFLER, INSULATED spark arrestor

21

6646705

SEAL bulk - sold per foot

22

6677363

CLAMP, FULL CIRCLE Was 657904B - A

23

866104

PLUG brass 3/8'' (9,5 mm)

24

6705793

GASKET

25

6631734

STUD

26

6660665

PIPE exhaust

27

6625291

SPACER

28

2DM10

NUT

29

17K7

ELBOW

30

29CM845

BOLT

31

6654909

PORT BLOCK

32

6658690

GASKET

33

6631836

RELIEF VALVE

34

79K10

O RING 10

35

15K7

FITTING W/Ref. 34

36

6704546

TUBE

37

6702256

TUBE

38

17C620

BOLT

39

6702762

FILTER HEAD

40

6659329

ELEMENT engine oil

41

6511855

SEAL self adhesive - bulk - sold per foot

42

6512686

MOULDING bulk - Sold Per Foot

43

6557720

HOSE bulk - Sold Per Foot

44

6515007

GAUGE dust

45

6704823

BRACKET

46

6505813

CONNECTOR barbed

47

84G3710

SCREW

48

84G3708

SCREW

49

42HL300

CLAMP Was 6598799 - A

50

84G3712

BOLT 5

51

AIR CLEANER See Illustration AIR CLEANER/ B20671

52

6718237

HOSE Was 6703332 - A

53

HOSE NLA - 11'' (279,4 mm) long - Order Ref. 43

54

6563452

FITTING barbed

55

6705282

HOSE W/Ref. 18 & 19

56

42H32

HS CLAMP5 Was 42H000024B - B

57

ENGINE See Illustration ENGINE & GASKET KITS/ B13269

58

85D6

NUT, 5
