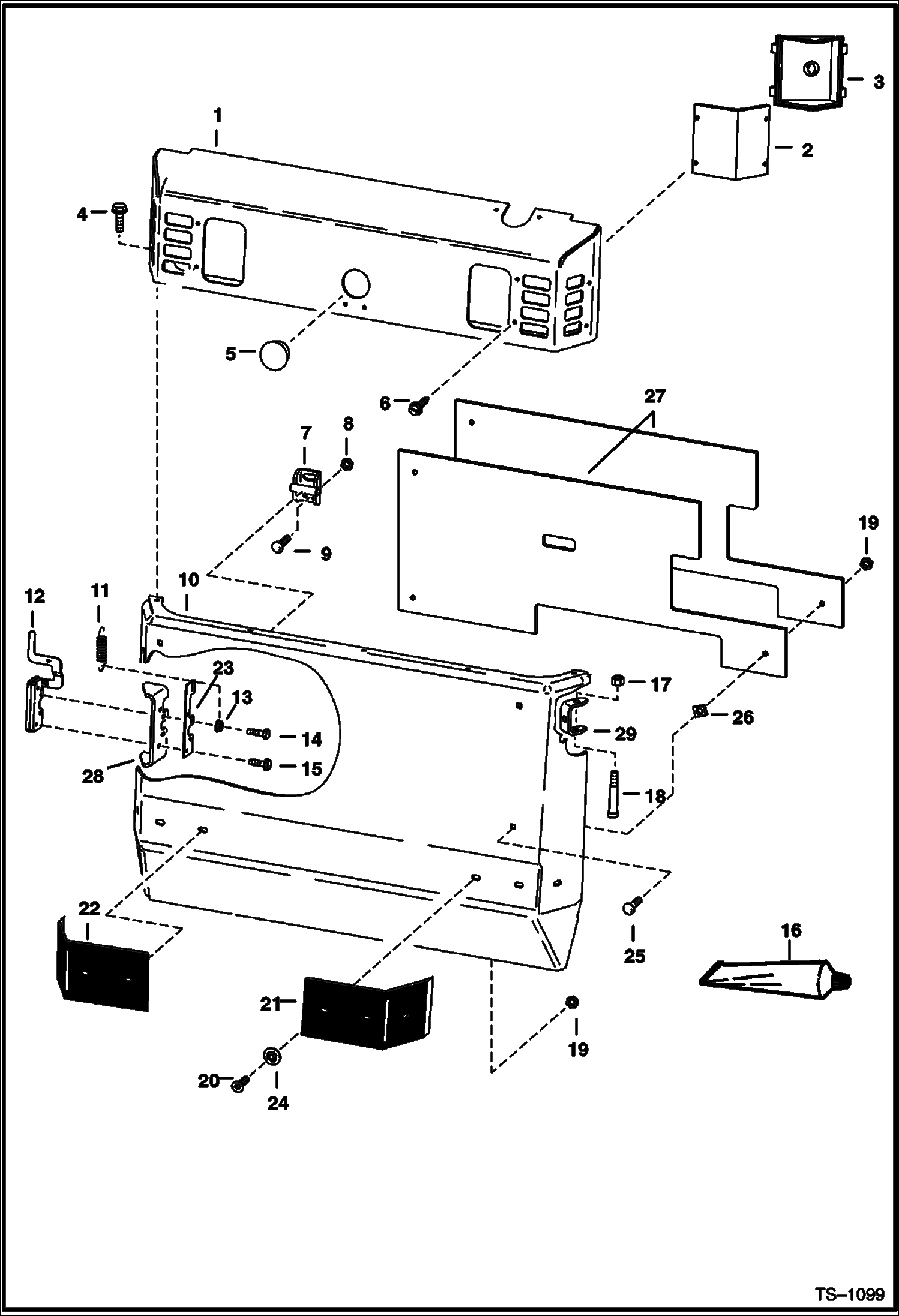

Запчасти Bobcat 800s REAR DOOR MAIN FRAME

1

6703868

HOOD See Illustration HOOD KIT/ MS1695 - steel - for field kit

2

6703797

LENS

3

6704362

HOUSING light

4

84G3716

SCREW 5

5

6718796

PLUG Was 6660646 - A

6

6706517

SCREW self tapping - Was 6704400 - A

7

6715157

STRIKER ASSY. Was 6579969 - A

8

83D8

NUT 5

9

37C820

BOLT Was 10C000820B - B

10

6708624

REAR DOOR Was 6704639 - A

11

6563128

SPRING

12

6649420

LATCH, REAR DOOR

13

57D4

NUT

14

17C424

BOLT

15

31C420

BOLT 5 Was 35C000416B

16

6649835

ADHESIVE Use W/Ref. 21 & 22

17

59D6

NUT Was 85D000008B

18

38C856

BOLT Was 17C000868B

19

83D6

NUT 5

20

9G628

BOLT 5 Was 25G000624B

21

6577400

BUMPER bond - W/Ref. 16

22

6577401

BUMPER bond - W/Ref. 16

23

6704464

GUIDE latch

24

6704332

WASHER

25

37C624

BOLT

26

1612281

SPRINGNUT

27

6712177

WEIGHT Was 6704638 - A

28

6700279

BRACKET latch

29

6577395

HINGE
