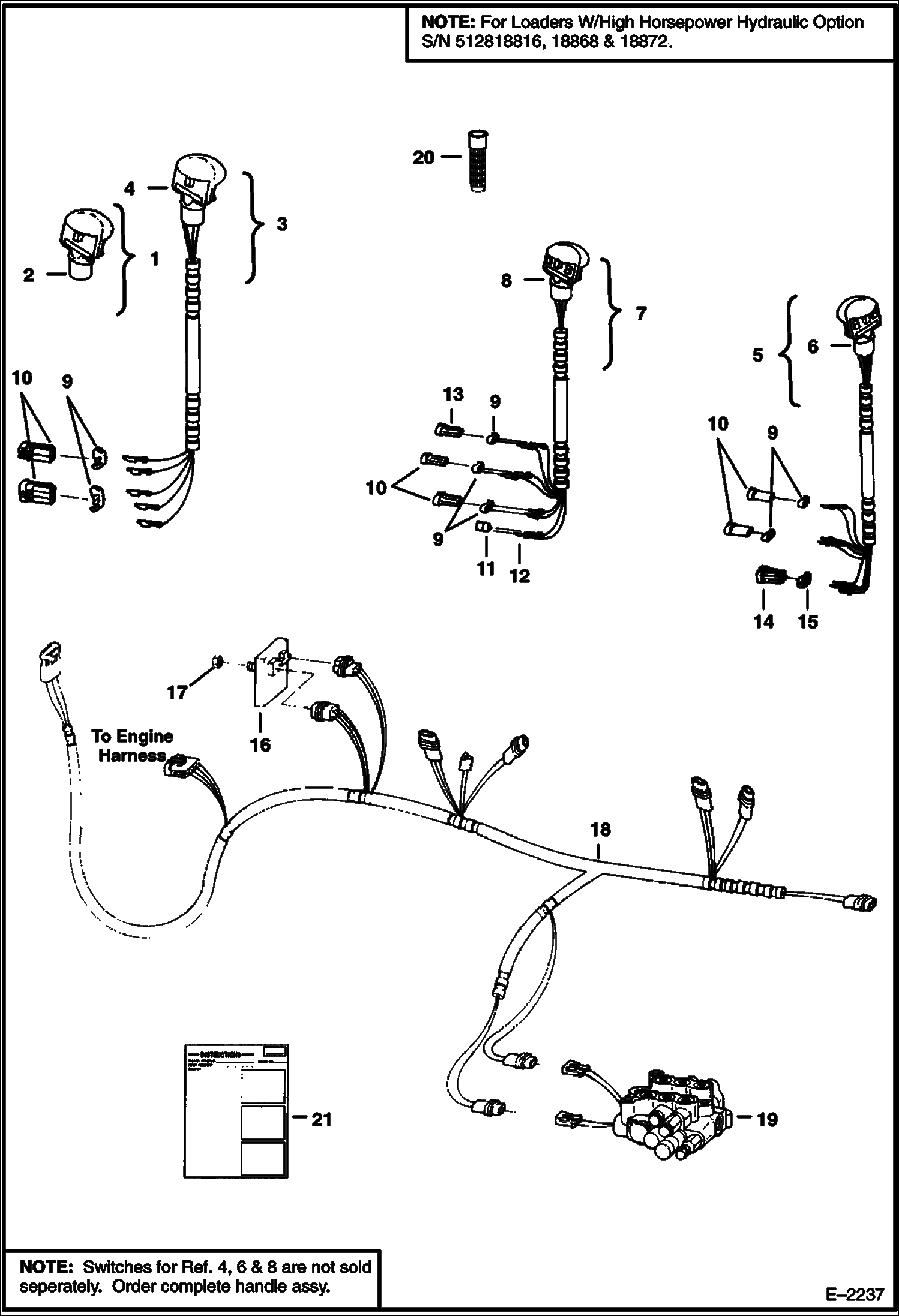

Запчасти Bobcat 800s CONTROLS ELECTRICAL CIRCUITRY (S/N 5128 16001-18873, 5084 18001-18085 & 5097 18001-18112 - SEE NOTE) ELECTRICAL SYSTEM

1

6706565

KIT L.H. blank handle - Ref. 2 & 21

2

6680415

HANDLE LH blank - Was 6705920 - A

3

6706566

KIT two switch handle - Ref. 4, 9, 10 & 21

4

6680414

HANDLE ASSY. W/ Ref. 9 and 10- two switch - Was 6705921 - A

4

6640690

PIN

4

6641176

SEAL

5

6706567

KIT R.H. multi switch handle - Ref. 6, 9, 10, 14, 15 & 21

6

6680413

HANDLE ASSY R.H. multi switch - Also Order Ref. 9, 10, 14 & 15 - Was 6706340 - A

6

6640690

PIN

6

6641176

SEAL

7

6706568

KIT L.H. multi switch handle - Ref. 8, 9, 10, 11, 13 & 21

8

6680412

HANDLE ASSY W/Ref. 9-13 - L.H. multi switch - Also Order Ref. 9-13 - Was 6707976 - A

8

6640690

PIN

8

6640691

PIN

8

6641176

SEAL

8

6662257

PIN

8

6680447

DECAL Was 6677370 - A

9

6641180

LOCK Use W/ 2-pin connector

9

6640700

LOCK 3-pin

10

6641179

CONNECTOR 2-pin

10

6640699

CONNECTOR 3-pin

11

6664599

CONNECTOR 3-pin triangle

12

6664800

LOCK 3-pin triangle

13

6641178

CONNECTOR 2-pin

14

6641173

CONNECTOR 6-pin

15

6641181

LOCK 6-pin

16

6669529

MODULE aux. control - Was 6706215 - A

17

85D4

NUT 5

18

6708076

HARNESS

18

6708075

HARNESS See Illustration HIGH HORSEPOWER HYDRAULICS/ E2270 HIGH HORSEPOWER HYDRAULIC OPTION

19

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ MS1729 See Illustration HYDRAULIC CONTROL VALVE/ MS1726

20

6702621

GRIP

21

6722759

INSTRUCTIONS
