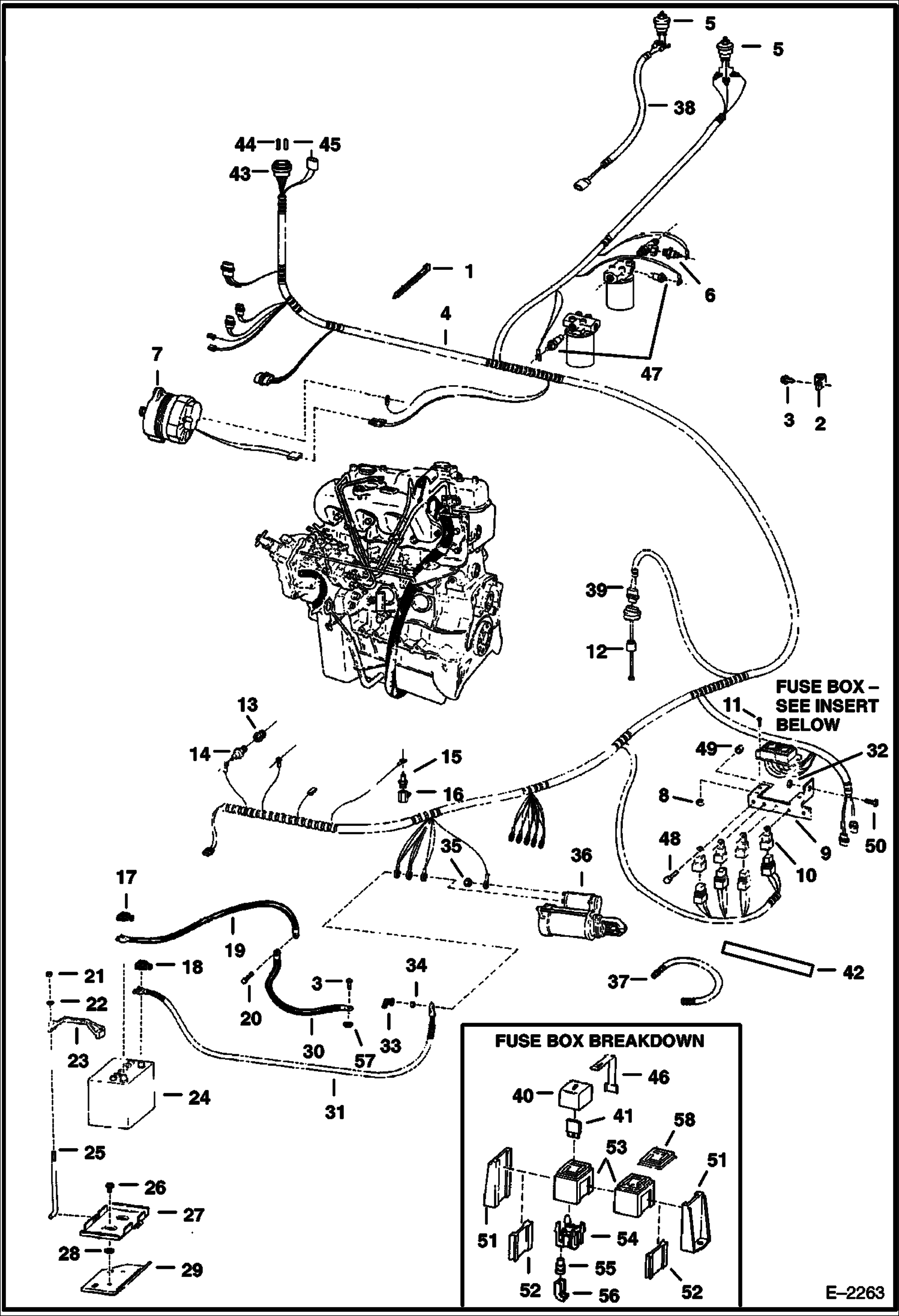

Запчасти Bobcat 800s ENGINE ELECTRICAL CIRCUITRY (W/O B.O.S.S. Option) ELECTRICAL SYSTEM

1

6610510

TIE

2

30H60

CLIP Was 30H000050B - B

3

84G3712

BOLT 5

4

6707709

HARNESS engine - W/Ref. 43-46 - Was 6706222 - B,D

4

6707709

HARNESS

4

6707709

HARNESS

4

6709895

HARNESS

4

6709895

HARNESS

4

6709895

HARNESS

5

6661341

SWITCH hyd. chg. press. - 2 pin terminal

5

6661341

SWITCH

5

6661341

SWITCH

5

6667292

SWITCH hyd. chg. press. - 3 terminal con.

5

6667292

SWITCH

5

6667292

SWITCH

6

6632633

SWITCH hyd temp

7

ALTERNATOR See Illustration ALTERNATOR/ C3312

8

50D12

NUT

9

6707799

BRACKET

10

6670312

SWITCH, MAGNETIC relay - Was 6665005 - A

11

45G1212

BOLT

12

SENSOR NLA - W/O Ring - Order 6674209 Sensor - fuel - Was 6669642 - A

12

79K14

O RING 10 Was 25K040102B - B

12

6674209

SENSOR Fuel - W/ Gasket

12

6717579

GASKET

13

6564767

ADAPTER

14

6658818

SENDER eng temp - threaded connector

15

6631010

SWITCH, PRESS OIL ENG eng. oil pressure

16

6707040

ELBOW Was 6658634 - B,D

17

6599652

BOOT

18

2356058

BOOT

19

6579806

CABLE ground

20

5CM1016

BOLT

21

59D5

NUT 5

22

25E15

WASHER

23

6569203

CLAMP

24

6665032

BATTERY, DRY 700 AMP

24

6630153

BATTERY CAP

25

6576280

BOLT

26

84G3716

SCREW 5

27

6712536

PAN Was 6577809 - A

28

6555455

WASHER

29

6579989

BRACKET

30

6563025

CABLE ground

31

CABLE NLA - pos. - 34'' (863,6 mm) long - W/30'' (762 mm) of Ref. 37 - Order 6576188 cable - Was 6579809 - A

31

6576188

CABLE pos. - 40'' (1016 mm) long

32

83D6

NUT 5

33

6560172

COVER

34

4DM10

NUT

35

4DM5

NUT

36

STARTER See Illustration STARTER/ D2119

37

6563505

CONDUIT bulk - Sold Per Foot

38

6704931

HARNESS Use W/6661341 Switch only

38

6704931

HARNESS

38

6704931

HARNESS Use W/6661341 Switch only

39

6646383

CONNECTOR fuel sender - W/O terminals

39

6632946

TERMINAL female

40

6665358

COVER , FUSE fuses

41

6707620

FUSE, 10A MINI 5

41

6707621

FUSE, 15A MINI 5

41

6707623

FUSE, 25A MINI 5

41

6674099

BREAKER, 25A

42

6707787

DECAL fuse location

43

6664585

CONNECTOR Also Order Ref. 44 & 45 as needed - Was 6665682 - A

44

6664828

SOCKET

45

6664041

SOCKET

46

6708437

CLIP spring

47

6632053

SWITCH See Illustration HYDROSTATIC OIL FILTER/ B20148 FILTER

48

17C410

BOLT 10

49

85D4

NUT 5

50

35C616

BOLT 5

51

6665369

MOUNT fuse

52

6665411

WEDGE red

53

6665356

BLOCK fuse - W/Ref. 58

54

6665357

LOCK yellow

55

6650107

SEAL

56

PIN female - Order 6668719 pin for 16 ga. wire - Order 6668720 pin for 14 ga. wire - Was 6648311 - A

57

6E6

WASHER

58

6671528

SEAL green square - Was 6671156 - B
