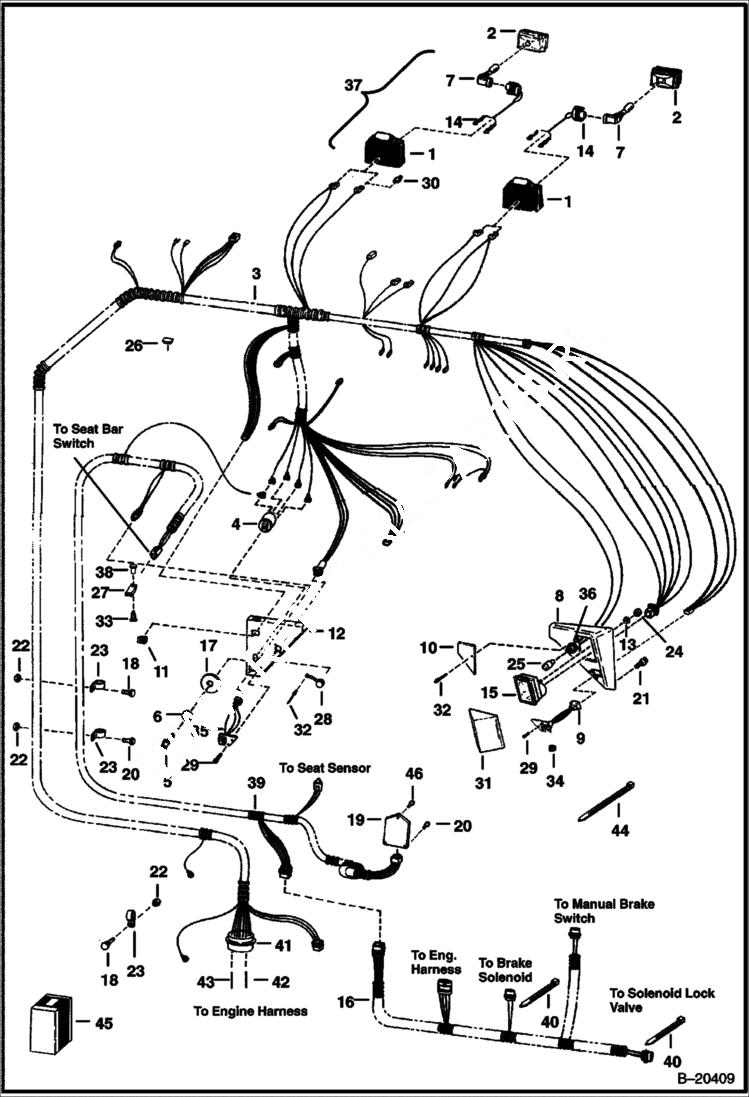

Запчасти Bobcat 800s CAB ELECTRICAL CIRCUITRY (W/B.O.S.S. Option) ELECTRICAL SYSTEM

1

6578824

HOUSING rubber

2

6649478

BULB HOUSING

3

6707671

HARNESS

4

SWITCH See BTI289 NLA - ignition - Order Ref. 40 - Was 6519592 - A

4

6665606

SWITCH ignition - W/Ref. 5 & 6

5

6512809

KEY ignition - For Ref. 4, (NLA/6519592 Switch)

5

KEY NLA - for 6665606 switch - includes two keys W/ring - Order 6693241 - Was 6709527 - A

5

6693241

KEY 10 ignition - single key W/O ring

6

6598721

NUT For Ref. 4 (NLA/6519592 Switch)

6

6674202

NUT For Ref. 4 (6665606 Switch)

7

6667934

BULB Was 6650111 - A

8

6702660

PANEL R.H.

9

6667903

SWITCH, AUX aux. controls module - W/Ref. 34 - Was 6700603 - A

10

6702678

PLATE service codes

11

6665410

SWITCH Headlight

12

6708427

PANEL L.H. - Was 6707660 - A

12

PANEL See Illustration EUROPEAN ACCESSORIES/ MS1733 NLA - LH - Europe - Was 6708428 - A

13

17E8

WASHER

14

6578528

HARNESS light

15

DISPLAY LCD monitor - mounted w/nuts - NLA - order 7131641 kit - Was 6665923

15

7131641

KIT, DISPLAY LCD LCD monitor - screw mounted - includes screws, display & instructions

15

LCD monitor NLA - LCD monitor mounted w/screws

15

6691063

SCREW

15

6904890

INSTRUCTIONS

16

6706876

HARNESS

16

6706876

HARNESS

16

6706876

HARNESS

16

6710313

HARNESS

16

6710313

HARNESS

16

6710313

HARNESS

17

6707664

PLATE ignition key - For Ref. 4 (NLA/6519592 Switch)

17

6709027

PLATE For Ref. 4 (6665606 Switch) - Was 6708693 - A

18

10C412

BOLT

19

CONTROLLER See Illustration * SEAT SENSOR OVERRIDE/ B15147A See Illustration SEAT SENSOR OVERRIDE/ B15147 NLA - WAS 6668767 - A

19

6680411

CONTROLLER Use in kit 6717700 & 6717702 - Was 6673002

20

35C410

BOLT 5

21

6702642

SCREW

22

61D4

NUT 5

23

30H54

CLIP

24

12D8

NUT

25

6578357

BULB

26

6707674

PLUG round - plugs 1.28'' (32,5mm) diameter hole in cab

27

6665000

CLIP

28

6651703

CAP

29

6669225

BOLT Was 58G000408B - A

30

6519548

CONNECTOR

31

6700487

SHIELD snap in place

32

6704892

RIVET

33

6665321

RIVET plastic male

34

6660594

BUTTON on/off

35

6667905

SWITCH traction override - Was 6706995 - A

35

6673005

SWITCH traction/seat sensor override

36

6649331

SOCKET light - W/ 6'' leads

37

6577801

LIGHT Ref. 1, 2, 7 & 14

38

6665322

RIVET plastic female

39

6706828

HARNESS

39

6706828

HARNESS

39

6706828

HARNESS

39

6710312

HARNESS

39

6710312

HARNESS

39

6710312

HARNESS

40

6665527

TIE never modify

41

6664584

CONNECTOR Also Order Ref. 42 & 43 - Was 6665683 - A

42

6664827

PIN

43

6664040

PIN

44

6610510

TIE

45

6724282

SWITCH KIT Ref. 4, 5 & 17

46

17C410

BOLT 10
