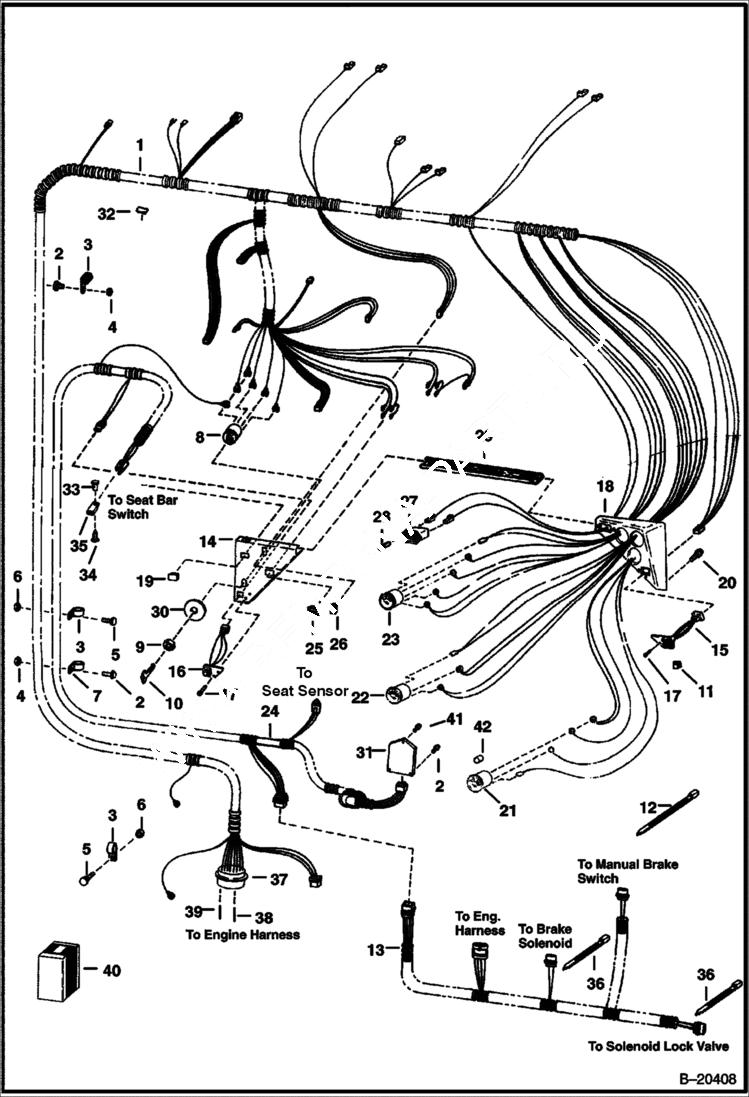

Запчасти Bobcat 800s CAB ELECTRICAL CIRCUITRY (W/O B.O.S.S. Option) ELECTRICAL SYSTEM

1

6707665

HARNESS

2

35C410

BOLT 5

3

30H56

CLIP

4

83D4

NUT 10

5

10C412

BOLT

6

61D4

NUT 5

7

30H29

CLAMP

8

SWITCH See BTI289 NLA - ignition - Order Ref. 40 - Was 6519592 - A

8

6665606

SWITCH ignition

9

6598721

NUT For Ref. 8 (NLA/6519592 Switch)

9

6674202

NUT For Ref. 8 (6665606 Switch)

10

6512809

KEY ignition - For Ref. 8 (NLA/6519592 Switch)

10

KEY NLA - for 6665606 switch - includes two keys W/ring - Order 6693241 - Was 6709527 - A

10

6693241

KEY 10 ignition - single key W/O ring

11

6660594

BUTTON on/off

12

6610510

TIE

13

6706876

HARNESS

13

6706876

HARNESS

13

6706876

HARNESS

13

6710313

HARNESS

13

6710313

HARNESS

13

6710313

HARNESS

14

6708425

PANEL L.H. - Was 6707658 - A

14

6708426

PANEL See Illustration EUROPEAN ACCESSORIES/ MS1733 L.H. - EUROPE

15

6667903

SWITCH, AUX aux. controls module - W/Ref. 11 - Was 6700603 - A

16

6667905

SWITCH traction override-Was 6706995 - A

16

6673005

SWITCH traction/seat sensor override

17

6669225

BOLT Was 58G000408B - B

18

6706896

PANEL R.H.

19

6665314

PLUG Was 6719038 - A

20

6702642

SCREW

21

GAUGE NLA - eng temp - Order 6669663 gauge & 6679027 clamp - Was 6658817 - A

21

6669663

GAUGE eng temp - W/O clamp

22

VOLTMETER NLA - W/clamp - Order 6669664 voltmeter & 6679027 clamp - Was 6658819 - A

22

6669664

VOLTMETER W/O clamp

23

FUEL GUAGE NLA - W/clamp - Order 6669665 gauge & 6679027 clamp - Was 6658820 - A

23

6669665

FUEL GUAGE W/O clamp

24

6706828

HARNESS

24

6706828

HARNESS

24

6706828

HARNESS

24

6710312

HARNESS

24

6710312

HARNESS

24

6710312

HARNESS

25

6665318

SWITCH glow plug

26

6636018

LIGHT indicator

27

6664886

HOURMETER

28

65G608

SCREW

29

6578780

CROSSMEMBER

30

6707664

PLATE brake start - For Ref. 8 (NLA/6519592 Switch)

30

6709027

PLATE brake start - For Ref. 8 (6665606 Switch) - Was 6708693 - A

31

CONTROLLER See Illustration * SEAT SENSOR OVERRIDE/ B15147A See Illustration SEAT SENSOR OVERRIDE/ B15147 NLA - WAS 6668767 - A

31

6680411

CONTROLLER Use in kit 6717700 & 6717702 - Was 6673002

32

6707674

PLUG round-plugs 1.28'' (32.5mm) dia. - hole in cab

33

6665321

RIVET plastic male

34

6665322

RIVET plastic female

35

6665000

CLIP

36

6665527

TIE never modify

37

6664584

CONNECTOR Also Order Ref. 38 & 39 - Was 6665683 - A

38

6664827

PIN

39

6664040

PIN

40

6724282

SWITCH KIT Ref.8, 10 and 30

41

17C410

BOLT 10

42

6599696

SOCKET & BULB assy.

42

895771

#161 BULB
