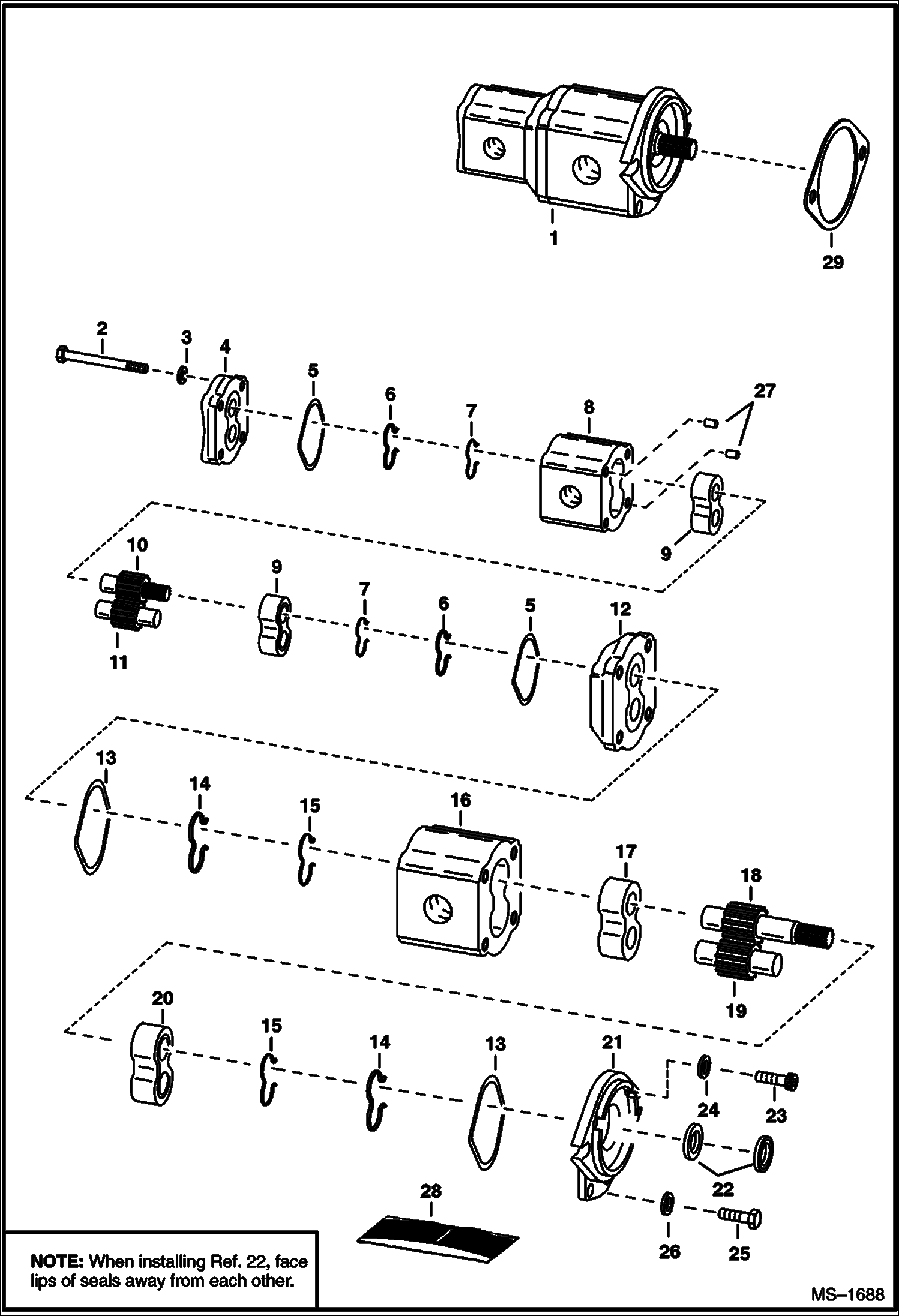

Запчасти Bobcat 800s HIGH HORSEPOWER HYDRAULICS (Double Gear Pump) HIGH FLOW HYDRAULICS

1

6665552

PUMP double - Ref. 2 - 27 -Model B5501-34110 - Was 6660378 - A

2

BOLT NSS

3

WASHER NSS

4

COVER NLA - Was 6660595 - A

5

O-RING NSS - seal

6

SEAL NSS

7

RING NSS

8

BODY NSS

9

BEARING NSS

10

GEAR NSS - drive

11

GEAR NSS

12

COVER NLA - Was 6670665 - A

13

O-RING NSS - seal

14

SEAL NSS

15

RING NSS

16

BODY NSS

17

BEARING NSS

18

GEAR NSS - drive

19

GEAR NSS - idler

20

BEARING NSS - Was 6658118 - A

21

COVER NLA - Was 6670666 - A

22

SEAL NSS

23

BOLT NSS - Was 6669471 - A

24

SEAL NSS

25

BOLT NSS - Was 6669472 - A

26

WASHER NSS

27

DOWEL NSS

28

6660596

SEAL KIT Ref. 5 - 7, 13 - 15, 22 & 24 - For .787'' dia. shaft

28

6666835

SEAL KIT Ref. 5 - 7, 13 - 15, 22 & 24 - For .875'' (22,2 mm) dia. shaft

29

6660339

GASKET
