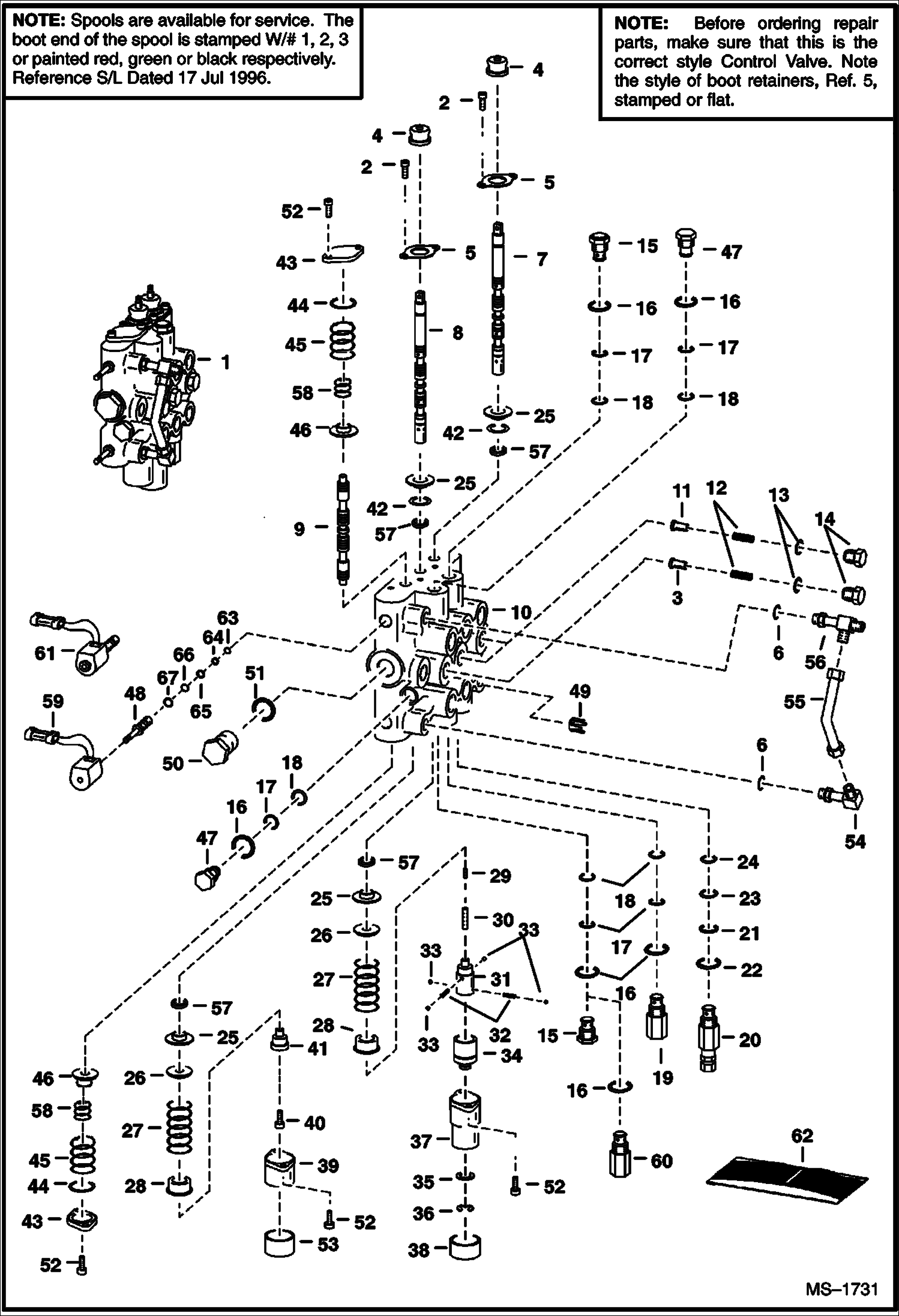

Запчасти Bobcat 800s HIGH HORSEPOWER HYDRAULICS (Hydraulic Control Valve) (For Proportional Auxiliaries) (S/N 5128 18892 & Above & 5097 18113 & Above - SEE NOTE) HIGH FLOW HYDRAULICS

1

VALVE See BTI295 NLA - Ref. 2 - 57 - W/Short Spools - W/Fittings -Standard Loaders - Was 6596325 - A

2

29G412

BOLT

3

6595131

SPRING

4

6587763

BOOT rubber

5

6589564

RETAINER

6

79K6

O RING 10

7

6666588

SPOOL lift - # 1 or Red - SEE NOTE

7

6666589

SPOOL lift - # 2 or Green-SEE NOTE

7

6666590

SPOOL lift - # 3 or Black - SEE NOTE

8

6666591

SPOOL tilt - # 1 or Red - SEE NOTE

8

6666592

SPOOL tilt - # 2 or Green - SEE NOTE

8

6666593

SPOOL tilt - # 3 or Black - SEE NOTE

9

6588074

SPOOL auxiliary - SEE NOTE

10

BODY NSS

11

6592115

SEAT load check

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check

15

6667549

VALVE anti-cavity check - W/Ref. 16-18 - Was 6665533 - A

16

79K10

O RING 10

17

80K14

BACK-UP WASHER Was 73K000014B - B

18

58K014

O-RING 10 back-up washer required

18

6677106

O-RING Back-Up Washer not required

19

6599161

RELIEF VALVE port relief - W/Ref. 16-18

20

6665699

VALVE main relief - 2850-3350 PSI - W/Ref. 21-24

21

58K017

O-RING 10

22

6665569

WASHER back-up

23

58K015

O-RING 10 Was 25K20016 - B,D

24

6665570

RING glide

25

6595663

BUSHING

26

7211397

WASHER, SPRING Was 6587523 - A

27

6587580

SPRING

28

6592100

COLLAR

29

PLUG NLA - plastic - order 6596807 plug & 54K020002B o-ring - Was 6592752 - B

29

6596807

PLUG plastic - 0.46'' long

29

54K20002

O'RING 10

30

6586918

SCREW

31

6587575

ADAPTER

32

6592107

SPRING

33

6592105

BALL

34

6531270

SLEEVE, DETENT

35

6592098

WASHER

36

799119

RING

37

6589226

COVER, END 0.63'' flange

38

6660644

CAP

39

7101345

BONNET, DETENT HYD VALVE Was 6587633 - C

40

30G416

BOLT

41

6592109

ADAPTER

42

1K127

O-RING 10 Was 93K127 - A

43

6588781

END CAP

44

58K124

O RING 10

45

6596332

SPRING 1.05'' (26,7 mm) O.D.

46

7108780

SLEEVE Was 6595951 - A

47

6592720

PLUG W/Ref. 16-18

48

6666616

STEM

49

6532633

RESTRICTOR 0.153

50

24K8

PLUG W/Ref. 51

51

79K12

O RING 10

52

29G416

BOLT

53

6683274

SEAL, SPOOL 10 See BTI374

54

6558510

ELBOW W/Ref. 6

55

6577690

TUBE

56

TEE NLA - W/ Ref. 6 - W/O Flared End O-Rings - Was 6587889 - A

56

6805243

TEE W/ Ref. 6 - W/ Flared End O-Rings

56

97K6

O RING Flared End

57

6683274

SEAL, SPOOL 10 See BTI374 - spool - Was 6665846 - A

58

6595131

SPRING .72'' OD

59

6717706

COIL, 10 VOLT 10 volt - Was 6666547

59

6676566

NUT

60

6664373

VALVE optional - port relief & anti-cav. - W/Ref. 16 - 2500 PSI - use in tilt cylinder base end port

61

6665084

SOLENOID 10 volt - W/Ref. 48 & 59

61

6586459

SEAL KIT Ref. 63 - 67

62

6816250

KIT, SEAL one spool - Ref. 2, 4 & 57 - Was 6596310 - A

62

6816715

KIT, SEAL See BTI374 - Ref. 4, 6, 13, 16-18, 21-24, 29, 42, 44, 52, 53, 57, 64, 65 & 67 - Was 6596311 - A

62

6632279

KIT, SEAL Ref. 21-24

62

6809425

SEAL KIT Ref. 13 and 16-18 - Was 6586461 - A

63

77K11

O'RING

64

80K11

BK UP RG back-up

65

80K12

BK UP RG back-up

66

77K12

O'RING

67

79K7

O RING 10
