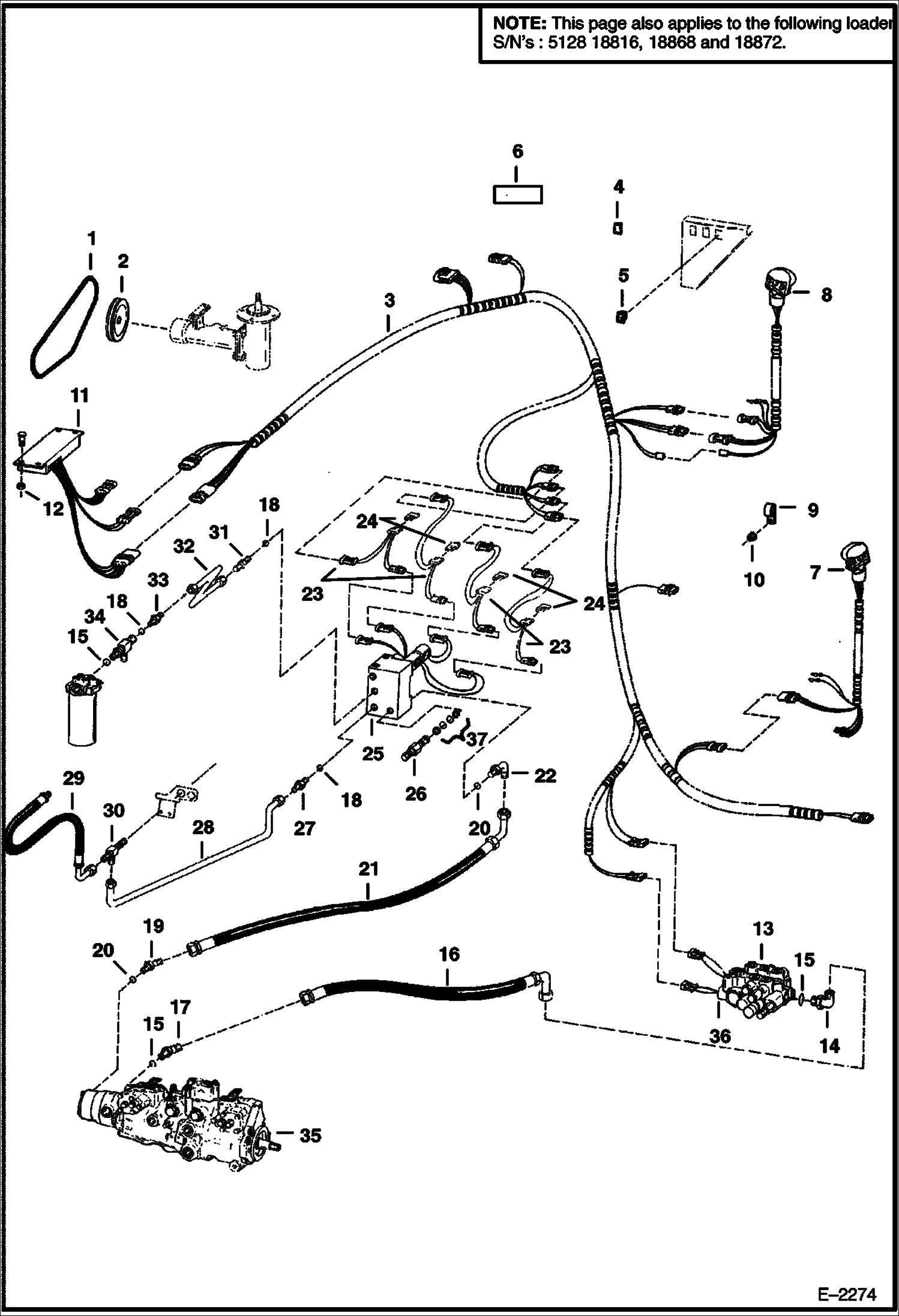

Запчасти Bobcat 800s HIGH HORSEPOWER HYDRAULICS (Hydrostatic Circuitry) (For Proportional Auxiliaries) (S/N 5128 18892 & Above & 5097 18813 & Above - SEE NOTE) HIGH FLOW HYDRAULICS

1

6659248

BELT

2

6703483

PULLEY, FAN DRIVE IDLER

3

6710331

HARNESS Was 6708183 - A

4

6515510

COVER switch

5

6665320

SWITCH

6

6706508

DECAL

7

6706735

KIT See Illustration CONTROLS ELECTRICAL CIRCUITRY/ E2277 R.H. MULTI SWITCH HANDLE - Was 6706567 - B,D

8

6706568

KIT See Illustration CONTROLS ELECTRICAL CIRCUITRY/ E2277 L.H. MULTI SWITCH HANDLE

9

30H42

CLAMP

10

89D6

NUT

11

6668773

MODULE Was 6667956 - A

12

85D4

NUT 5

13

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ MS1729

14

17K8

FITTING W/Ref. 15

15

79K12

O RING 10

16

6706937

HOSE

17

18K8

FTG W/Ref. 15

18

79K6

O RING 10

19

18K7

FITTING W/Ref. 20

20

79K10

O RING 10

21

6706434

HOSE

22

17K7

ELBOW W/Ref. 20

23

6703898

HARNESS

24

6703899

DIODE

25

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ TS1144 CONTROL

26

VALVE NLA - Releif - Pressure present at factory - Was 6658838 - A

26

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

27

6659459

CHECK VALVE inline - W/Ref. 18

28

6706178

TUBE

29

6706151

HOSE See Illustration AUXILIARY HYDRAULICS/ TS1221

30

6706172

TEE

31

731794

CONNECTR W/Ref. 18

32

6706316

TUBE

33

755056

CONNECTR W/Ref. 18

34

6700599

ELBOW W/Ref. 15

35

PUMP See Illustration HYDROSTATIC PUMP/ E2011

36

6717706

COIL, 10 VOLT 10 VOLT - Was 6666547 - A

36

6676566

NUT

37

6659574

SEAL KIT Relief Valve
