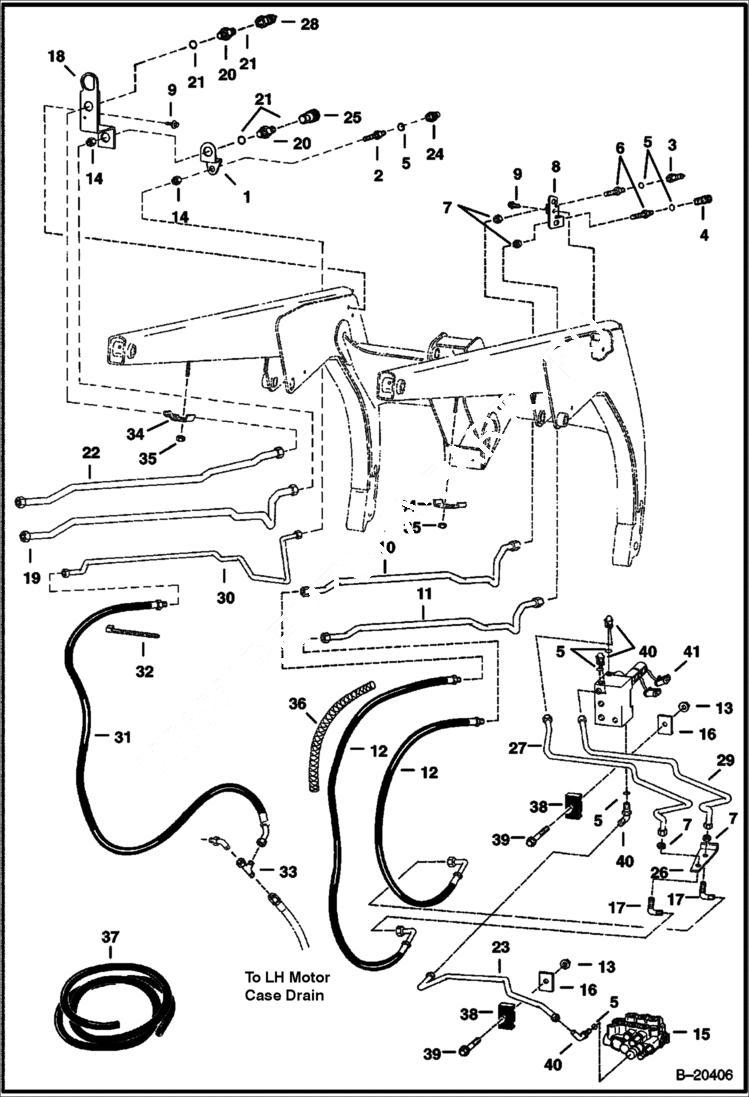

Запчасти Bobcat 800s HIGH HORSEPOWER HYDRAULICS (Auxiliary Hydraulics) (W/FF Couplers) HIGH FLOW HYDRAULICS

1

6711913

BRACKET

2

6726479

ADAPTER Was 6711628 - A

3

6667804

COUPLER, FF MALE

3

6669657

SEAL KIT

4

6667803

COUPLER, FF FEMALE

5

79K6

O RING 10

6

45K5

FITTING

7

86F5

NUT

8

6711674

MOUNT

9

84G3112

BOLT 5

10

6711917

TUBE

11

6711918

TUBE

12

6706423

HOSE

13

57D4

NUT

14

86F8

NUT 5

15

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ MS1729

16

6579255

WASHER

17

88F5

ELBOW

18

6711912

BRACKET

19

6711915

TUBE See Illustration AUXILIARY HYDRAULICS/ TS1221 Ref. 3

20

45K8

ADAPTOR W/Ref. 21

21

79K12

O RING 10

22

6711914

TUBE

23

6706315

TUBE

24

6667806

COUPLER male

25

6672960

COUPLER, FF FEMALE See Illustration FRONT AUXILIARY KIT/ MS1734 - straight - Was 6667807 - A

26

6706359

MOUNT

27

6707038

TUBE

28

6674688

COUPLER, FF MALE See Illustration FRONT AUXILIARY KIT/ MS1734 - straight - Was 6667808 - A

28

6679841

SEAL Was 6672026 - A

29

6707039

TUBE

30

6711916

TUBE

31

6706424

HOSE

32

6624289

STRAP, TIE

33

21K5

TEE

34

6703216

CLAMP

35

59D6

NUT

36

COVER NLA - 35''(889,0 mm) long - Order Ref. 37

37

6651436

HOSE COVER bulk - Sold Per Foot

38

6578870

CLAMP

39

31C420

BOLT 5

40

17K5

ELBOW W/Ref. 5

41

6662695

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ TS1144 CONTROL
