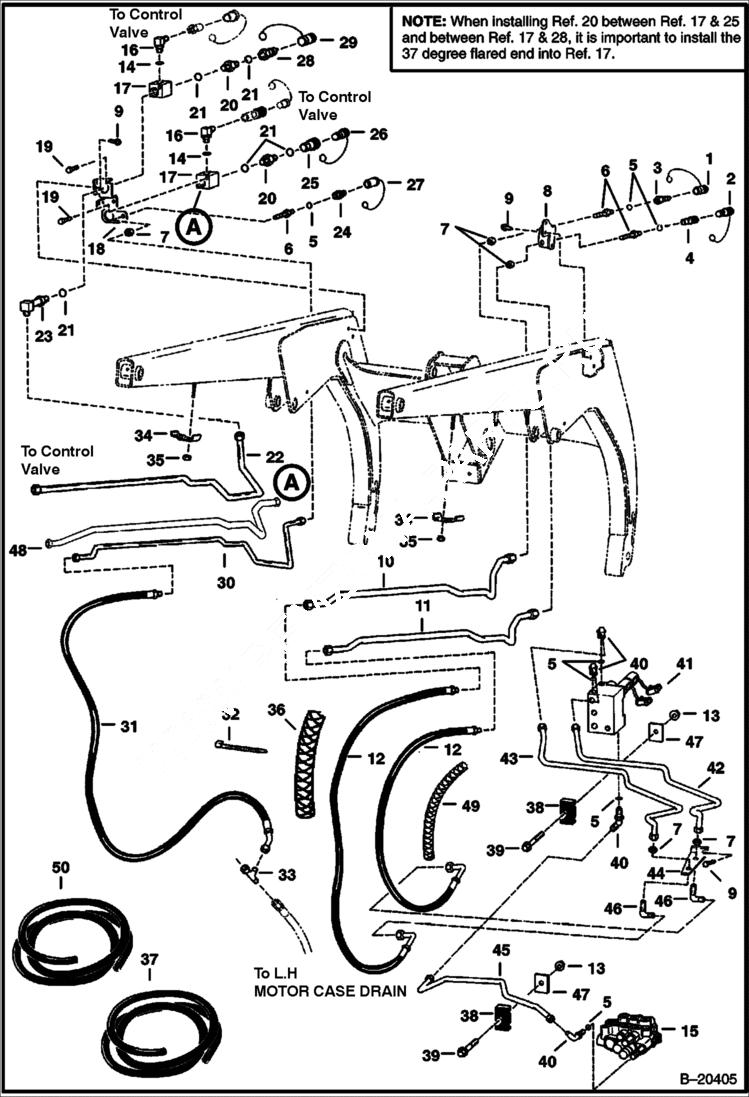

Запчасти Bobcat 800s HIGH HORSEPOWER HYDRAULICS (Auxiliary Hydraulics) (W/Poppet Couplers) HIGH FLOW HYDRAULICS

1

1513549

CAP

2

1519324

PLUG

3

6648969

QUICK COUPLER male

4

6648967

QUICK COUPLER female

4

6655795

SEAL KIT

5

79K6

O RING 10

6

45K5

FITTING

7

86F5

NUT

8

6706750

BRACKET

9

84G3716

SCREW 5 Was 84G003112B - B

10

6703413

TUBE

11

6703412

TUBE

12

HOSE NLA - Use W/ Ref. 36 - Was 6706423 - A

12

6714877

HOSE Use W/ Ref. 36

13

57D4

NUT

14

79K10

O RING 10

15

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ MS1729

16

6704013

ELBOW W/Ref. 14

17

6704010

BLOCK

18

6706752

BRACKET

19

17C612

BOLT 5

20

15K8

FITTING W/Ref. 21

21

79K12

O RING 10

22

6704109

TUBE

23

6519187

ELBOW W/Ref. 21

24

6658253

QUICK COUPLER male - thread together - shown

24

6658252

QUICK COUPLER female-thd. together- not shown

25

6648968

QUICK COUPLER female

25

6655796

SEAL KIT

26

6515598

PLUG

27

3679001

CAP

28

6648970

QUICK COUPLER male

29

6515599

CAP

30

6704110

TUBE

31

6706424

HOSE

32

6624289

STRAP, TIE

33

21K5

TEE

34

6703216

CLAMP

35

59D6

NUT

36

COVER NLA - 35''(889,0 mm) long - Order Ref. 37

37

6651436

HOSE COVER bulk - Sold Per Foot - 2.38'' (60.5mm) ID

38

6578870

CLAMP

39

31C420

BOLT 5

40

17K5

ELBOW W/Ref. 5

41

6662695

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ TS1144 CONTROL

42

6707039

TUBE

43

6707038

TUBE

44

6706359

MOUNT

45

6706315

TUBE

46

88F5

ELBOW

47

6579255

WASHER

48

6704108

TUBE See Illustration AUXILIARY HYDRAULICS/ TS1221 Ref. 3

49

COVER NLA - 54'' (1371.6MM) long - Order Ref. 50

50

6665875

COVER bulk - Sold Per foot - 1.12'' (28.5mm) ID
