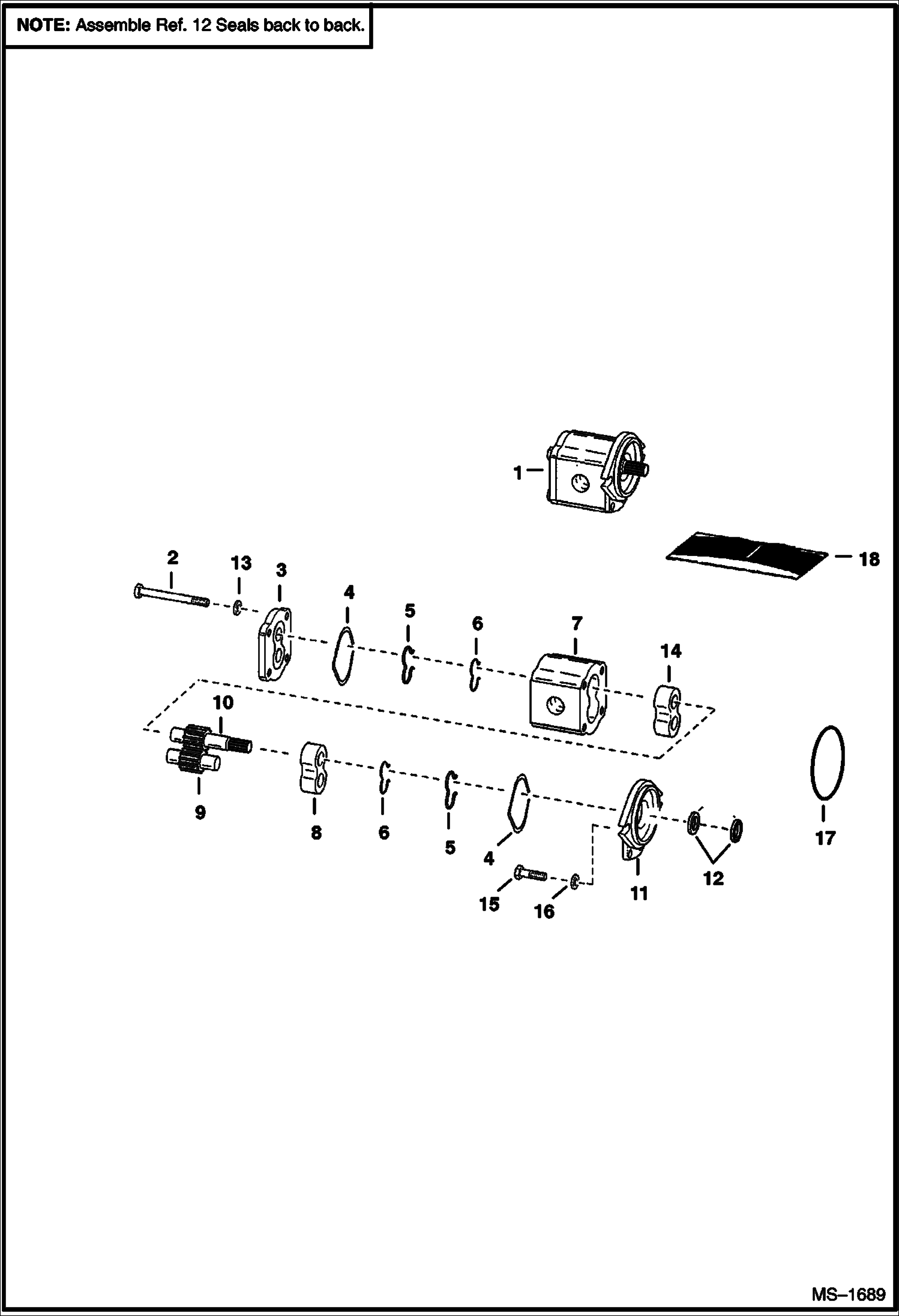

Запчасти Bobcat 800s GEAR PUMP HYDROSTATIC SYSTEM

1

PUMP NLA - W/Ref. 2-14 - Order 6673916, 6717662 Tee, (2) of 19J000012B Clamp, 58K000214B O-Ring, 24KN00005B Plug, and (4) of 17C000620 Bolt - Was 6665551 - A

1

6673916

PUMP

2

BOLT NSS

3

COVER NLA - Was 6658123 - A

4

O-RING NSS - seal

5

SEAL NSS

6

RING NSS

7

BODY NSS

8

BEARING NSS

9

GEAR NSS - idler

10

GEAR NSS - drive

11

COVER NLA - Was 6658122 - A

12

SEAL NSS - Assemble seals back to back

13

WASHER NSS

14

BEARING NSS

15

17C616

BOLT 5

16

28E6

WASHER

17

6645080

O-RING

18

6666834

SEAL KIT Ref. 4-6 & 12
