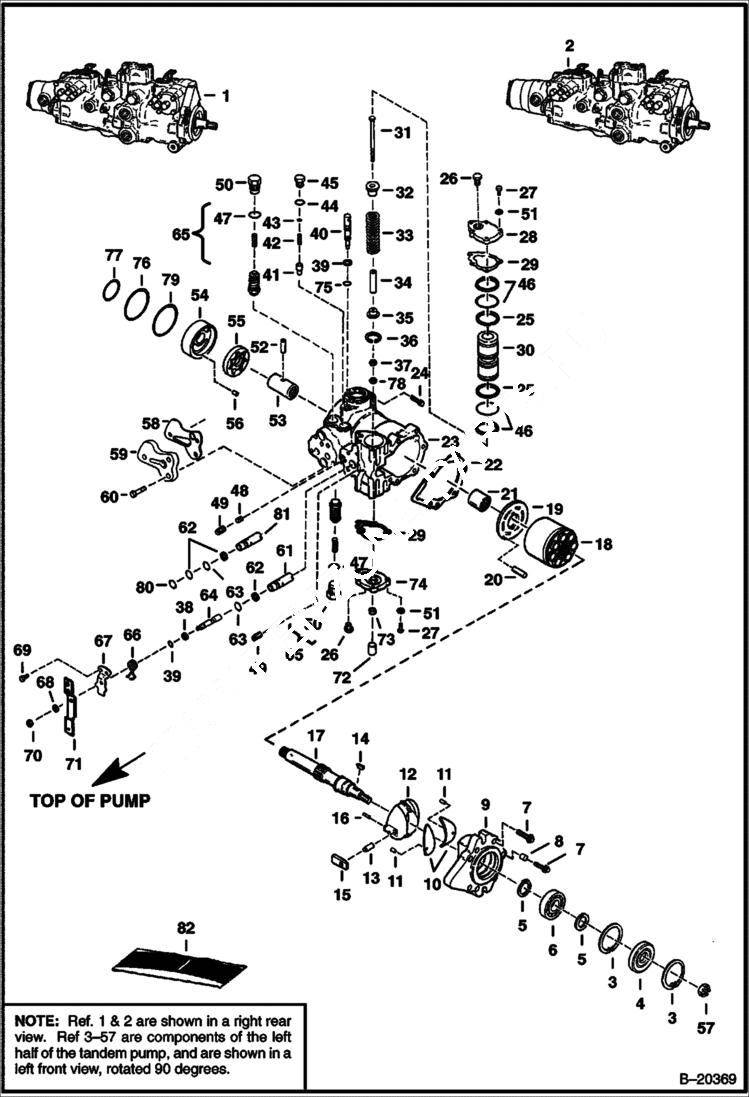

Запчасти Bobcat 800s HYDROSTATIC PUMP HYDROSTATIC SYSTEM

1

PUMP NLA - W/gear pump - M91-46921 - 4 ports one side - Order 6666335 REM - Was 6666335 - A

1

6666335REM

PUMP, REMAN HYD COMPLETE W/ Gear Pump

1

6666561REM

PUMP, HYD COMPLETE, W/O GEAR PUMP remanufactured - Also Order 6717662 TEE, (2) of 19J000012B Clamp, 58K000214B, and (4) of 19C000620B Bolt - W/ Gear Pump - A

2

6666336

PUMP W/double gear pump - M91-46134 - Order 6669079REM - 4 ports one side - for high horse power option - Was 6662962 - B,D

2

6669079REM

PUMP, HYD COMPLETE, W/O GEAR PUMP M911-46133R-W/ double Gear Pump - A

3

669863

RING, SNAP

4

6687191

SEAL, OIL Was 6645090 - A

5

658128

RING, SNAP

6

654299

BEARING

7

6653741

SCREW

8

6634592

PIN

9

6656076

COVER front

10

6634613

BEARING journal - Was 6666889 - B,D

11

6666890

PIN Was 791355B

12

6634382

SWASHPLATE

13

6632464

PIN

14

6J807

KEY, WOODRUFF

14

6682261

KEY Hex

15

6631428

SLEEVE

16

6673049

PIN Was 6634591 - A

17

SHAFT NLA - half Moon - Was 6666221 - A

17

6666221

SHAFT hex key groove

18

6670274

BLOCK Was 6634311 - A

19

PLATE NLA - Valve - Order 6665122 and 6666596 Plate - A

19

6665122

PLATE Valve

20

6634553

PIN

21

6631022

BEARING

22

6640612

GASKET

23

6664370

HOUSING Was 6656074 - B,D

24

93G832

BOLT

25

6659256

BEARING

26

6645086

PLUG

27

6660434

SCREW

28

6645072

COVER servo

29

6634425

GASKET

30

6634429

PISTON servo

31

6677160

SCREW Was 6631470 - A

32

6631444

GUIDE

33

6631430

SPRING

34

6631446

STOP

35

6631445

GUIDE

36

6631469

SNAP RING

37

6653728

NUT

38

6645079

O-RING

39

6631467

BACK-UP RING

40

6632462

VALVE bypass

41

6518656

VALVE charge relief

42

6518657

SPRING

43

6598058

SHIM KIT .005, .010, .020, .050, .100

44

79K10

O RING 10

45

6631465

PLUG

46

6634488

KIT

47

79K12

O RING 10

48

6657320

ORIFICE Screened - 0.157

48

6669257

ORIFICE 0.054

49

6518510

PLUG Was 6657320 - B,D

50

6660418

PLUG

51

6518479

WASHER

52

6657325

PIN

53

6631438

COUPLING

54

6664369

COVER

55

6661633

ROTOR ASSY.

56

6660435

PIN

57

92D12

NUT Was 86D000012B - A

58

6660779

SEAL

59

6660778

ADAPTER

60

6660780

SCREW

61

6657315

SLEEVE, WEAR -0.05

62

25K20020

O RING 10

63

6631468

WASHER

64

SPOOL NLA - Order (2) of 6666211 Spool, use one on each half of tandem pump - Was 6634428 - A

64

6666211

VALVE SPOOL metered

65

6653221

CHECK VALVE W/Ref. 47 & 50-5000 PSI(345 Bar)

65

6662847

RELIEF VALVE W/Ref. 47 & 50-4350 PSI(300 Bar)

65

6662846

RELIEF VALVE W/Ref. 47 & 50-3986 PSI(280 Bar)

66

6631449

SPRING

67

6631453

BRACKET

68

6653735

WASHER

69

6653733

SCREW

70

6653734

NUT

71

6657319

HANDLE

72

COVER NLA - Was 6631451 - A

73

6631458

NUT

74

6645071

COVER

75

58K012

O-RING 10

76

6657323

O-RING

77

6657322

O-RING

78

6648256

NUT locking

79

6655042

O-RING square

80

6631471

WASHER

81

SLEEVE NLA - repair - Was 6667897 - A

82

6664371

KIT, SEAL See Illustration HYDROSTATIC PUMP/ E2011 W/REF. 4, 17, 19, 22, 29, 38, 39, 43, 46, 47, 57, 58 & 64 and W/REF. 4, 22, 25, 29, 38, 39, 44, 46, 47, 58, 62, 63, 75, 76, 77 & 79 ON THIS PAGE- WAS
