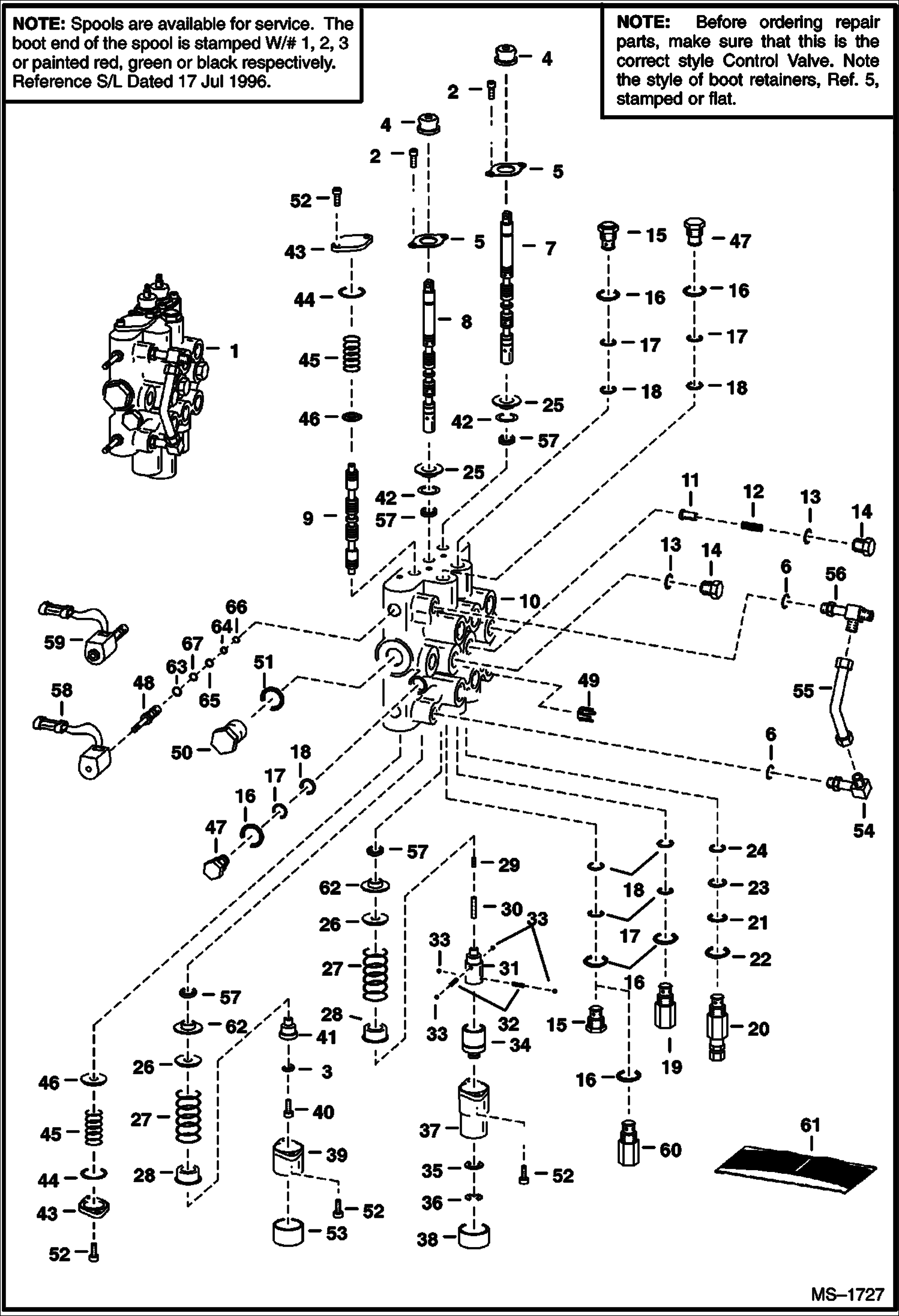

Запчасти Bobcat 800s HYDRAULIC CONTROL VALVE (S/N 5128 16001-18873, 5084 18001-18085 & 5097 18001-18112 - SEE NOTE) HYDRAULIC SYSTEM

1

VALVE See BTI295 NLA - REF. 2 - 57 - W/LONG SPOOLS - W/FITTINGS - Standard Loaders - WAS 6595980 - A

2

6588163

SCREW

3

22E4

WASHER

4

6587763

BOOT rubber

5

6589564

RETAINER flat

6

79K6

O RING 10

7

6666576

SPOOL lift - #1 or red - 9.55'' (241,3 mm) long - SEE NOTE

7

6666577

SPOOL lift - #2 or green - 9.55'' (241,3 mm) long - SEE NOTE

7

6666578

SPOOL lift - (3) black - 9.55'' (241,3 mm) long - SEE NOTE

8

6666579

SPOOL tilt - # 1 or Red - 9.55'' (241,3 mm) long - SEE NOTE

8

6666580

SPOOL tilt - # 2 or Green - 9.55'' (241,3 mm) long - SEE NOTE

8

6666581

SPOOL tilt - # 3 or Black - 9.55'' (241,3 mm) long - SEE NOTE

9

6588074

SPOOL auxiliary - SEE NOTE

10

BODY NSS

11

6592115

SEAT load check

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check

15

6667549

VALVE anti-cavity check - W/Ref. 16-18 - Was 6665533 - A

16

79K10

O RING 10

17

80K14

BACK-UP WASHER Was 73K000014B - B

18

58K014

O-RING 10 back-up washer required

18

6677106

O-RING Back-up Washer Not Required

19

6599161

RELIEF VALVE port relief - W/Ref. 16-18

20

VALVE NLA - Main Releif - W/ Ref. 21-24 - Pressure Present at Factory - Was 6661113 - A

20

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

21

58K017

O-RING 10

22

6665569

WASHER back-up

23

25K20016

O RING 10

24

6665570

RING glide

25

6589565

BUSHING seal

26

7211397

WASHER, SPRING Was 6587523 - A

27

6587580

SPRING

28

6592100

COLLAR

29

PLUG NLA - plastic - Order 6596807 plug & 54K020002B O-ring - Was 6592752 - A

29

6596807

PLUG plastic - 0.46'' long

29

54K20002

O'RING 10

30

6586918

SCREW

31

6587575

ADAPTER

32

6592107

SPRING

33

6592105

BALL

34

6531270

SLEEVE, DETENT

35

6592098

WASHER

36

799119

RING

37

6589226

COVER, END 0.63'' flange

38

6660644

CAP

39

7101345

BONNET, DETENT HYD VALVE Was 6587633 - A

40

6588166

SCREW

41

6592109

ADAPTER

42

1K127

O-RING 10 Was 93K127 - A

43

6588981

END CAP .62'' thick

44

58K124

O RING 10

45

6588197

SPRING

46

6537096

WASHER

47

6592720

PLUG W/Ref. 16-18

48

6665758

VALVE W/Ref. 63

49

6532633

RESTRICTOR 0.153

50

24K8

PLUG W/Ref. 51

51

79K12

O RING 10

52

6588982

SCREW 1'' long

53

6662848

CAP

54

6558510

ELBOW W/Ref. 6

55

6577690

TUBE

56

TEE NLA - W/O Flared End O-Rings - W/ Ref. 6 - Was 6587889 - A

56

6805243

TEE W/ Ref. 6 - W/ Flared End O-Rings

56

97K6

O RING Flared End

57

6683274

SEAL, SPOOL 10 See BTI374 - spool - Was 6665846 - A

58

6717708

COIL, 14 VOLT 14 volt - Was 6665759 - A

59

6653395

VALVE, SOLENOID 12 volt - W/Ref. 48 & 58

59

6586459

SEAL KIT W/Ref. 63 - 67-Was 6534559 - A

60

6664373

VALVE optional - port relief & anti-cav. - W/Ref. 16 - 2500 PSI - use in tilt cylinder base end port

61

6816250

KIT, SEAL one spool - Ref. 2, 4 and 57 - Was 6803605 - A

61

6816715

KIT, SEAL See BTI374 - Ref. 4, 6, 13, 16-18, 21-24, 29, 42, 44, 57 & 63-67 - Was 6596311 - A

61

6632279

KIT, SEAL main relief - Ref. 21-24

61

6809425

SEAL KIT Ref. 13 and 16-18 - Was 6586461 - A

62

6595663

BUSHING

63

79K7

O RING 10

64

80K11

BK UP RG Back-up

65

80K12

BK UP RG Back-up

66

77K11

O'RING

67

77K12

O'RING
