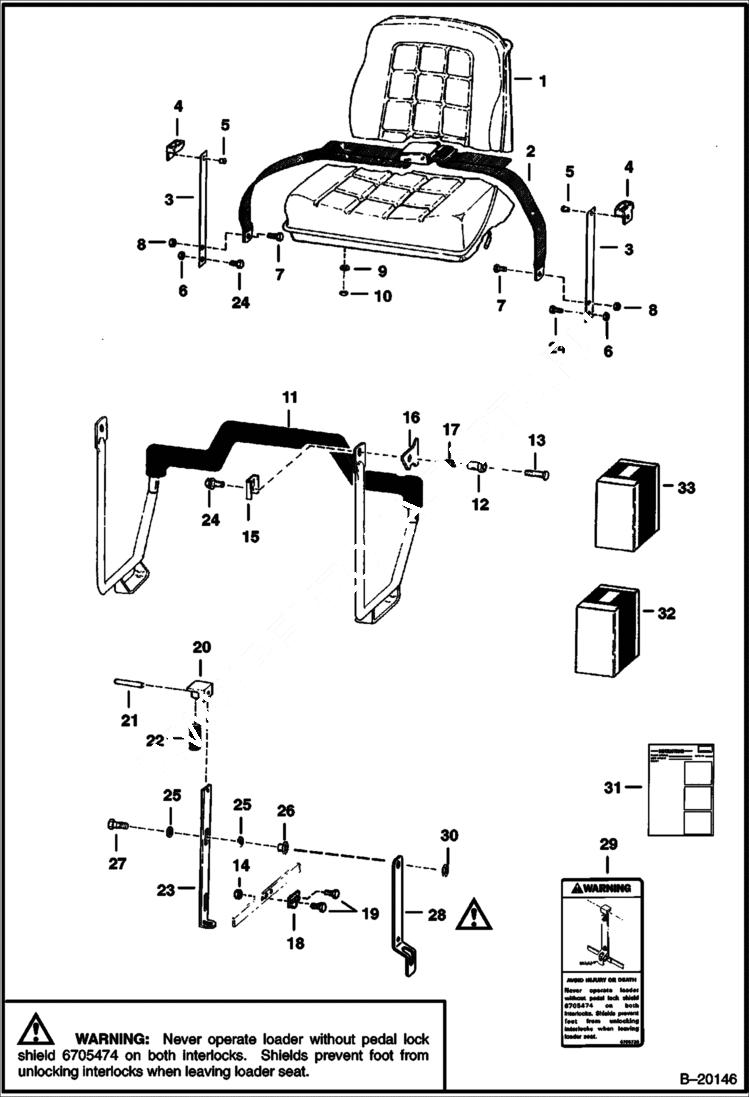

Запчасти Bobcat 800s SEAT & SEAT BAR MAIN FRAME

1

SEAT See Illustration SEAT/ B7185

2

SEAT BELT NLA - Order Ref. 33 - Was 6564774 - A

2

SEAT BELT NLA - W/ Spring Plates - Order 6675074 Seat Belt & (2) Of Ref. 3 (6725373 Spring Plate) - Was 6667875 - A

2

SEAT BELT NLA - W/ Spring Plates - Order 6675074 Seat Belt & (2) Of Ref. 3 (6725373 Spring Plate) - Was 6725403 - A

2

6675074

SEAT BELT W/O spring plates

3

GUIDE ASSY. NLA - W/Ref. 4 & 5 - 13.75 in. Used W/ NLA/6564774 - Was 6565354 - A

3

GUIDE ASSY. NLA - W/Ref. 4 & 5 - 12.25 in. Use W/ (NLA/6667875) Seat Belt - Order 6711908 Spring Plate, Ref. 4 & (2) Of Ref. 5 - Was 6711907 - A

3

6711908

SPRING PLATE Use W/Ref. 2 (NLA/6667875 Seat Belt)

3

6725373

SPRING PLATE Use W/Ref. 2 (6675074 seal belt)

4

GUIDE NLA - Order 6703703 - Was 6565355

5

6630207

RIVET 5 Was 6512797 - A

6

85D6

NUT, 5

7

17C716

BOLT

8

85D7

NUT

9

4E5

WASHER

10

61D5

NUT

11

6706324

SEAT BAR one piece - Was 6703301 - A

12

6568742

BUSHING

13

35C608

BOLT

14

83D6

NUT 5

15

6563557

WASHER

16

6563313

RETAINER

17

6704453

SPRING Was 6578252 - A

18

6563151

LINK

19

17C616

BOLT 5

20

6563148

BLOCK, SPRING

21

14J2512

PIN 5

22

6702430

SPRING, COMPRESSION Was 6563149 - A

23

6578150

LOCK

24

84G3712

BOLT 5

25

6700170

WASHER nylon - Was 65700170 - A

26

6559479

NUT

27

6705489

BOLT Was 84G003724B - A

28

6705474

LOCK SHIELD Never operate loader without pedal lock shield on both interlocks ... SEE WARNING ON PREVIOUS PAGE

29

6705720

DECAL Was 6705488 - A

30

59D6

NUT NUT

31

6722392

INSTRUCTIONS for Ref. 28

32

6706796

KIT See Illustration SEAT BAR KIT/ C3341 - gas spring seat bar

33

KIT NLA - W/Ref. 2 & 3 - Order Ref. 2 (6675074 Seat Belt) & (2) Of Ref. 3 (6725373 Spring Plate) - Was 6713061 - A
