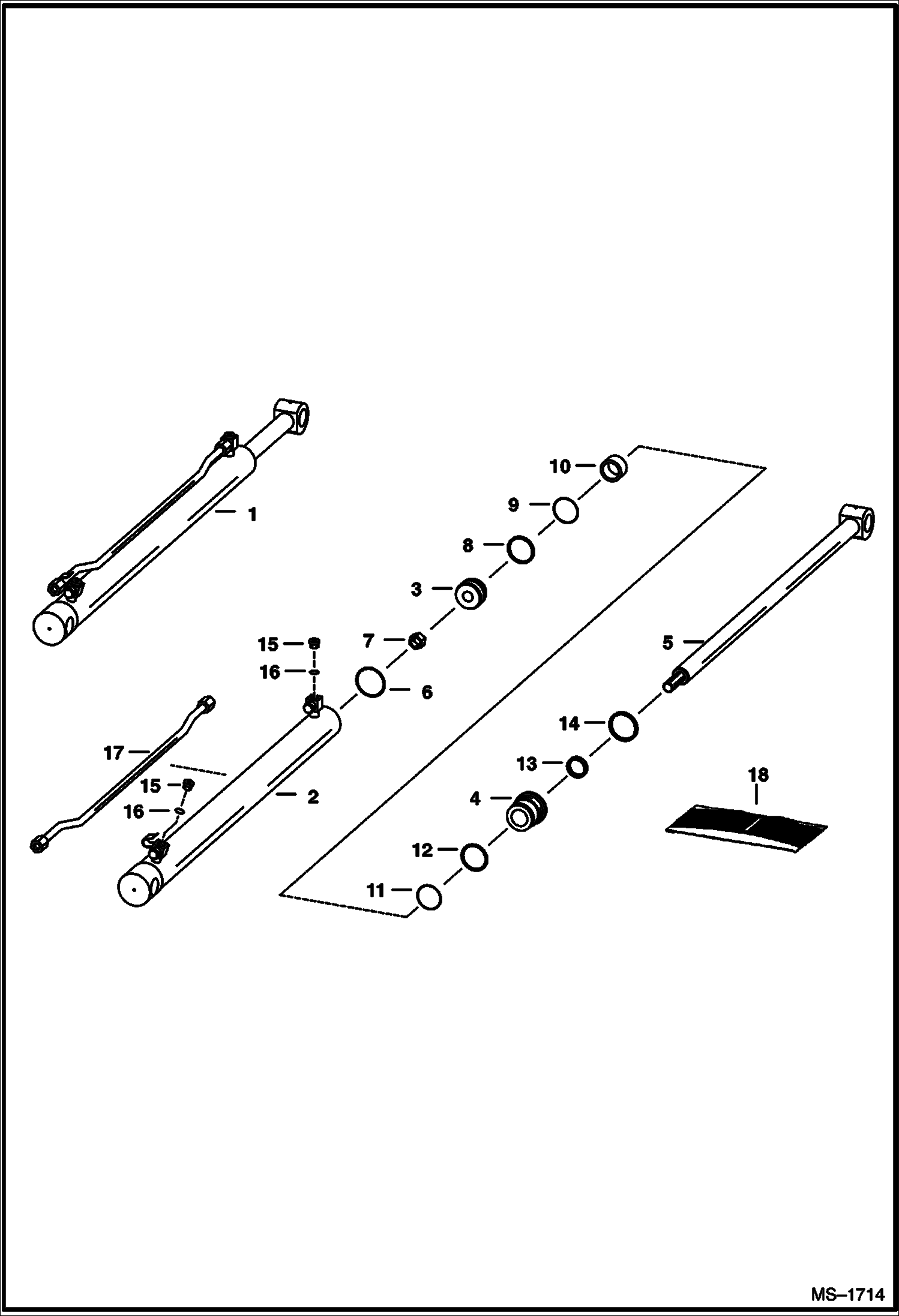

Запчасти Bobcat 800s LIFT CYLINDER HYDRAULIC SYSTEM

1

6587125

CYLINDER, LIFT Ref. 2-6

2

6587133

CASE

3

6661820

PISTON W/Ref. 8 & 9 - W/Non-Replaceable wear sleeves - Was 6665207 - A

4

6539236

HEAD

5

6587126

ROD

6

58K140

O-RING

7

92D16

NUT

8

6519328

SEAL

9

25K30126

O RING 10

10

6587134

SPACER

11

25K60128

O RING 10 Was 54K60128 - A

12

80K328

BK UP RG back-up

13

6667326

SEAL rod - Was 6538141 - A

14

6690707

WIPER, ROD CYL Was 6665086 - A

15

47K5

PLUG W/Ref. 16 - flat boss face

15

90KV5

PLUG W/Ref. 16 - tapered boss face

16

79K6

O RING 10 flat boss face

16

95K6

O'RING tapered boss face

17

6532739

TUBE

18

6586915

SEAL KIT Ref. 7 - 14
