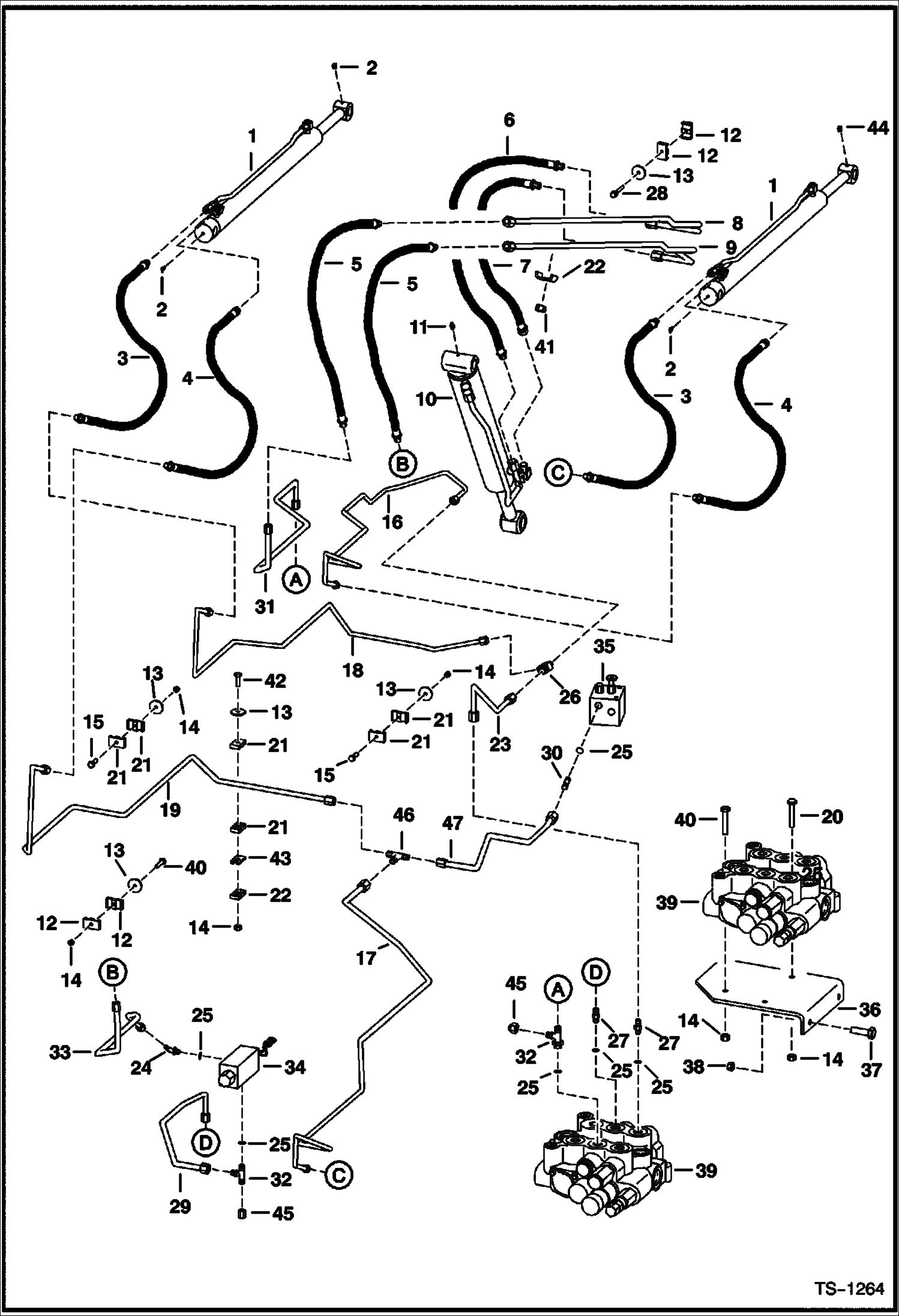

Запчасти Bobcat 800s HYDRAULIC CIRCUITRY (W/O Bucket Positioning Valve) (For Proportional Auxiliaries) (S/N 5128 18874 & Above, 5084 18086 & Above & 5097 18113 & Above) HYDRAULIC SYSTEM

1

CYLINDER See Illustration LIFT CYLINDER/ MS1714 LIFT

2

11H15

GREASE FITTING

3

6700235

HOSE

4

6700234

HOSE

5

6700242

HOSE

6

6578774

HOSE

7

6578773

HOSE

8

6704130

TUBE

9

6703588

TUBE

10

CYLINDER See Illustration TILT CYLINDER/ MS1713 TILT

11

10H25

FITTING, GREASE 5

12

6701893

CLAMP

13

872229

WASHER

14

85D5

NUT 5

15

10C528

BOLT

16

6707030

TUBE

17

6708570

TUBE

18

6707033

TUBE

19

6708571

TUBE

20

17C540

BOLT

21

6701892

CLAMP

22

6502203

CLAMP

23

6704745

TUBE

24

17K7

ELBOW W/Ref. 25

25

79K10

O RING 10

26

6569146

TEE

27

15K7

FITTING W/Ref. 25

28

84G3728

BOLT

29

6707024

TUBE

30

6646581

CONNECTOR See Illustration LIFT & TILT CONTROL SYSTEM/ E2234 W/Ref. 25

31

6708610

TUBE

32

21K7

TEE W/Ref. 25

33

6708611

TUBE

34

6664849

VALVE See Illustration TILT LOCK VALVE/ C3387 TILT LOCK

35

6664850

VALVE See Illustration LIFT LOCK VALVE/ C3386 - lift lock

36

6579692

MOUNT valve

37

17C616

BOLT 5

38

85D6

NUT, 5

39

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ MS1729 See Illustration HYDRAULIC CONTROL VALVE/ MS1726

40

17C528

BOLT

41

59D6

NUT

42

17C544

BOLT

43

6702548

PAD clamp

44

12H15

FITTING, GREASE 5

45

36K7

FITTING

46

10K7

TEE

47

6708569

TUBE
