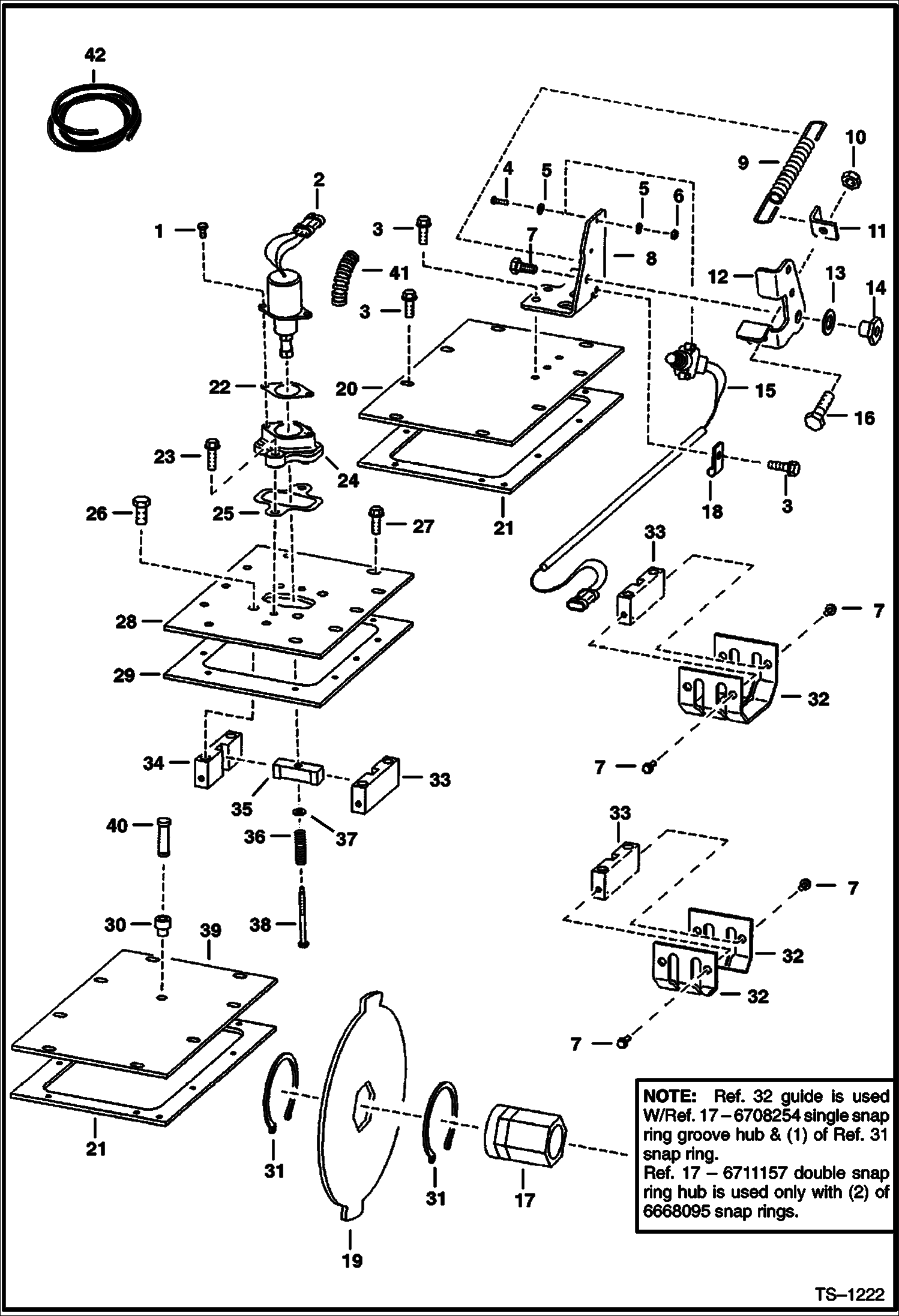

Запчасти Bobcat 800s DISC BRAKE DRIVE TRAIN

1

17C412

BOLT 5 Was 17C000410B - B

2

6681512

SOLENOID W/Ref. 41 - Was 6667992 - A

3

84G3712

BOLT 5

4

23G812

SCREW

5

25E8

WSHR

6

12D8

NUT

7

17C610

BOLT

8

6707313

PEDAL MOUNT

9

6585860

SPRING

10

95D6

NUT Was 91D000006B - A

11

6707315

ANGLE

12

6707314

PEDAL brake

13

6700170

WASHER plastic

14

6559479

NUT

15

6707337

SWITCH, LOCK TRACTION

16

17C620

BOLT

17

6708254

HUB See Illustration GEARCASE/ B20249 SINGLE SNAP RING GROOVE

17

6711157

HUB See Illustration GEARCASE/ B20249 DOUBLE SNAP RING GROOVE

18

30H23

CLAMP

19

6707691

BRAKE disc

20

6578505

COVER

21

6703097

GASKET, TRANS COVER

22

6706737

GASKET

23

84G3720

BOLT

24

6706718

MOUNT

25

6708016

GASKET

26

47C820

BOLT Was 17C000820B - B

27

84G3716

SCREW 5

28

6706683

COVER

29

6708070

GASKET, COVER BRAKE Was 6706968 - B

30

6553411

BUSHING

31

742666

SNAP RING Was 6658672 - B,D

31

6668095

SNAP RING

32

GUIDE NLA - disc brake - one piece - Was 6708977 - B

32

6708373

GUIDE disc brake - two piece

33

6705898

BLOCK guide - R.H.

34

6705897

BLOCK guide - L.H.

35

6705896

GUIDE

36

6708018

SPRING

37

25E13

WASHER 5

38

6708267

BOLT

39

6700330

COVER

40

6680970

BREATHER See Illustration MAIN FRAME/ MS1710 Was 6646626 - A

41

CONDUIT NLA - 5''(127 mm) long - Order Ref. 42

42

6584978

CONDUIT bulk - sold per foot
