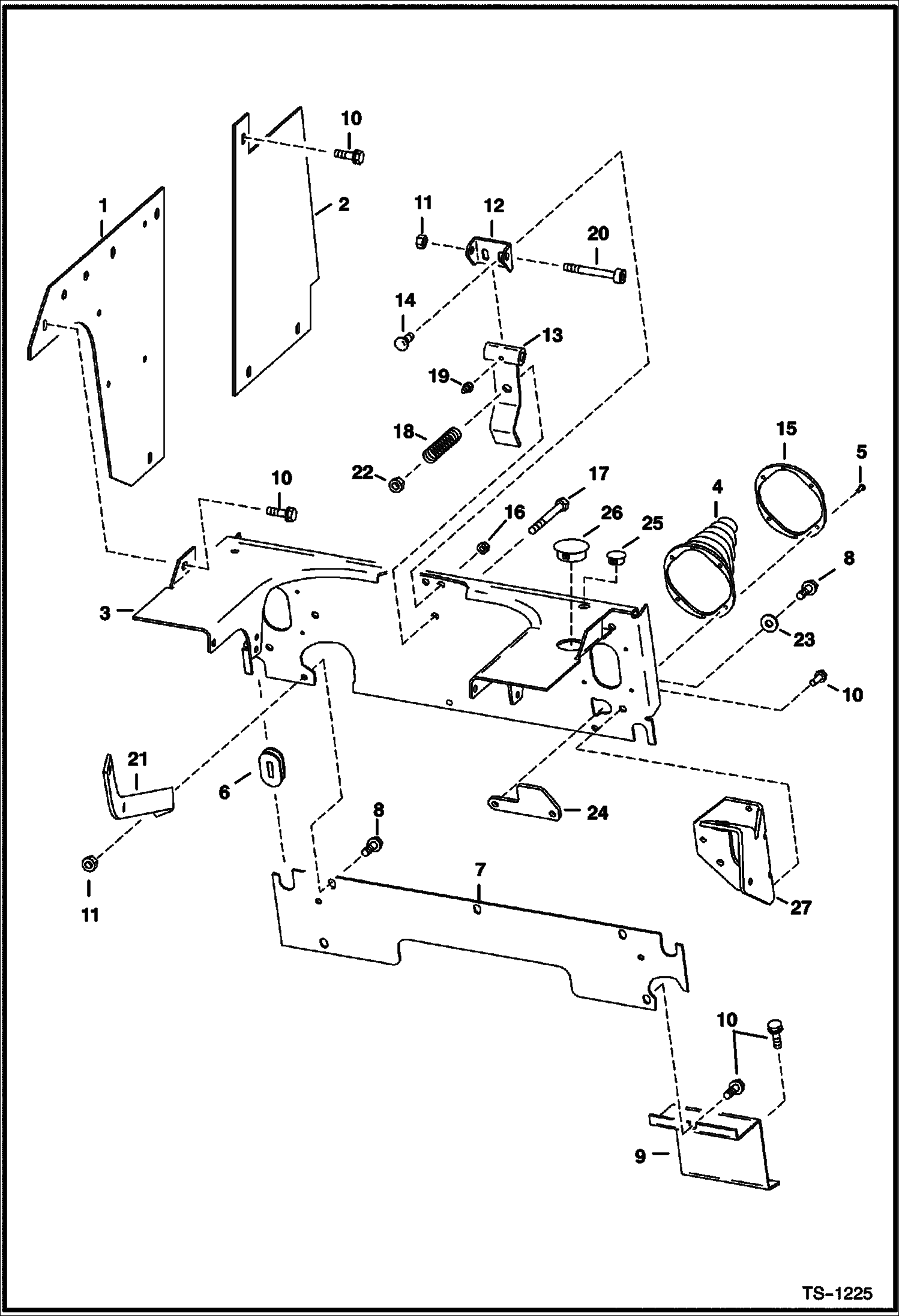

Запчасти Bobcat 800s PANELS MAIN FRAME

1

6718487

PANEL Was 6710647 - A

2

6701345

PANEL

3

6707475

PANEL See Illustration HAND CONTROLS/ B20407

4

6532127

BOOT W/Ref. 15

5

6630207

RIVET 5

6

6577961

GROMMET

7

6707343

PANEL Was 6700211 - B,D

8

84G3716

SCREW 5

9

6700772

PANEL

10

84G3712

BOLT 5

11

95D6

NUT Was 91D000006B - A

12

6701951

MOUNT

13

6701950

ARM

14

10C512

BOLT

15

PLATE NLA - Order Ref. 4

16

59D5

NUT 5 Was 85D000005B - B

17

17C664

BOLT

18

6505082

SPRING

19

10H25

FITTING, GREASE 5

20

38C836

BOLT

21

BRACE See Illustration HAND CONTROLS/ B20407

22

59D6

NUT

23

616783

WASHER

24

6703330

LEVER stop

25

6657719

PLUG 0.75'' dia hole - Was 6649949 - B,D

26

6707674

PLUG

27

BRACKET See Illustration HAND CONTROLS/ B20407 R.H. - Was 6733022 - A

27

BRACKET See Illustration HAND CONTROLS/ B20407 L.H. - Was 6733024 - A
