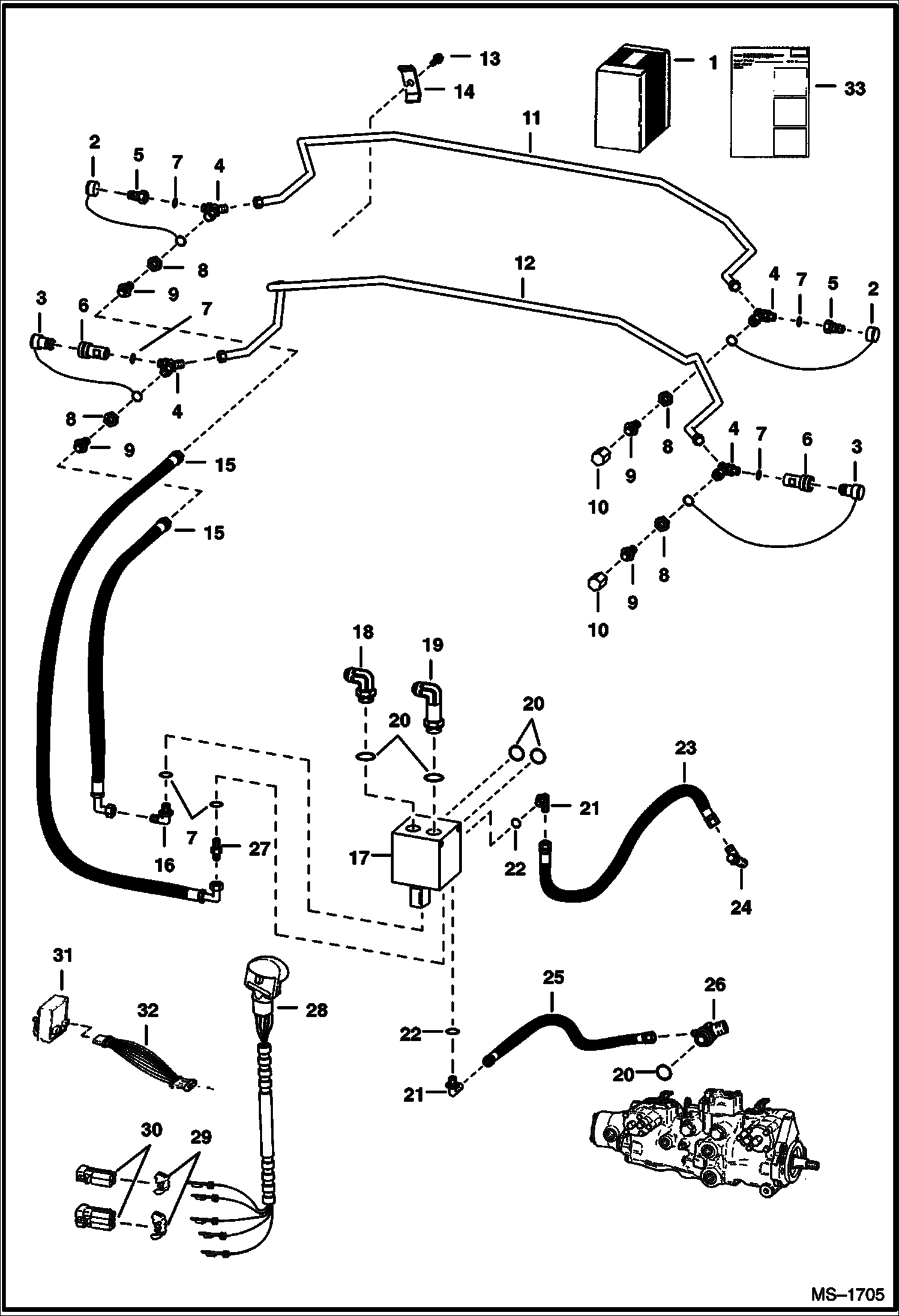

Запчасти Bobcat 800s REAR AUXILIARY (S/N 5102 50692, 5084 15216, 5101 26792 & Above) (S/N 5128 11001-15999 W/O High Horsepower Hydraulics Option) ACCESSORIES & OPTIONS

1

6706163

KIT Ref. 2-26 & 33 - Was SALES

2

1513549

CAP

3

1519324

PLUG

4

6706220

TEE W/Ref. 7

4

58K11

O RING 10 face seal

5

6648969

QUICK COUPLER male

6

6648967

QUICK COUPLER female

6

6655795

SEAL KIT

7

79K6

O RING 10

8

61E04

NUT

9

51E0404

ADAPTER

10

63E04

CAP

11

6706167

TUBE

12

6706168

TUBE

13

84G3716

SCREW 5

14

6500989

CLAMP

15

6706221

HOSE

16

17K5

ELBOW W/Ref. 7

17

6649686

VALVE See Illustration REAR AUXILIARY VALVE/ B12959 DIVERTER

18

17K8

FITTING W/Ref. 20

19

6519187

ELBOW W/Ref. 20

20

79K12

O RING 10

21

17K3

ELBOW W/Ref. 22

22

79K4

O RING 10

23

6706276

HOSE

24

21K5

TEE W/Ref. 7

25

6706228

HOSE

26

6706144

CONNECTOR W/Ref. 20

27

15K5

FITTING Part of Base Equipment

28

6680414

HANDLE ASSY. Also Order Ref. 29 & 30 - Was 6705921 - A

28

6640690

PIN

28

6641176

SEAL

29

6641180

LOCK Use W/ 2-pin connector

29

6640700

LOCK 3-pin

30

6641179

CONNECTOR 2-pin

30

6640699

CONNECTOR 3-pin

31

MODULE See Illustration CONTROLS ELECTRICAL CIRCUITRY/ MS1708 NOT IN KIT

32

6704114

HARNESS for momentary reverse flow

33

6722589

INSTRUCTIONS
