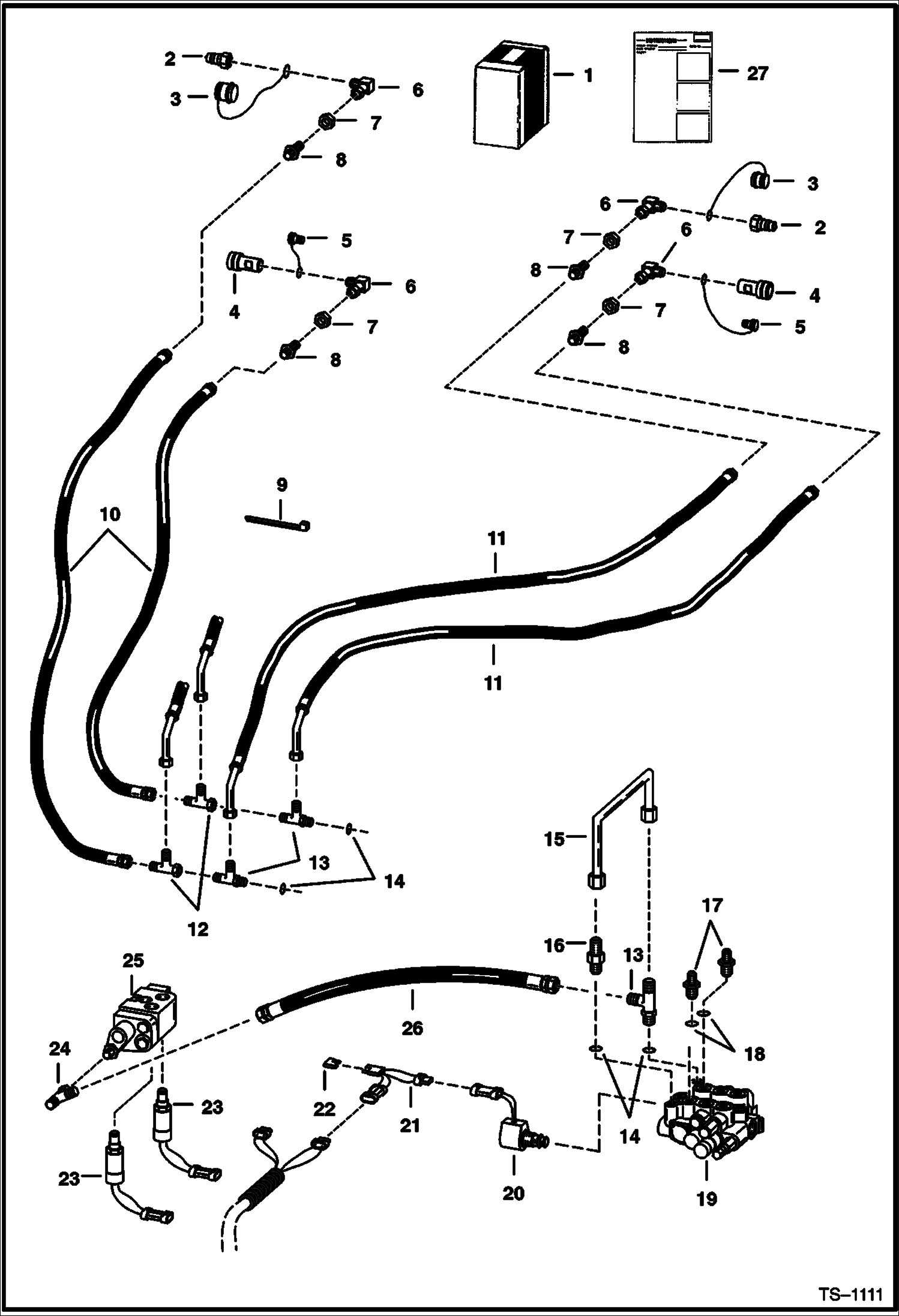

Запчасти Bobcat 800s REAR AUXILIARY (S/N 5102 50691, 5084 15215, 5101 26791 & Below) (S/Ns 5103 75001, 5097 15001 & Above) ACCESSORIES & OPTIONS

1

KIT SALES

1

6704134

KIT Ref. 2 - 18, 21, 22, 26 & 27 - Was SALES

2

2341398

COUPLER Male

2

COUPLER NLA - Male -connect under pressure - Was 6657037 - A

3

1513549

CAP

4

2342026

COUPLING Female

4

COUPLER NLA - Female -connect under pressure - Was 6657038 - A

5

1519324

PLUG

6

1631632

ELBOW

6

6703827

ELBOW Use W/connect under pressure couplers

7

86F5

NUT

8

45K5

FITTING

9

6610510

TIE

10

6700282

HOSE

11

6700281

HOSE

12

13K5

TEE for high horsepower hyd. only

13

21K5

TEE W/Ref. 14

14

79K6

O RING 10

15

6702507

TUBE

16

15K5

FITTING W/Ref. 14

17

731795

CONNECTR W/Ref. 18

18

79K10

O RING 10

19

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ MS1701 See Illustration HYDRAULIC CONTROL VALVE/ TS1008 NOT IN KITS

20

6653395

VALVE, SOLENOID

20

6665758

VALVE W/O-Ring

20

79K7

O RING 10

20

6717708

COIL, 14 VOLT 14 volt - w/nut - Was 6665759 - A

20

6679961

NUT

20

6586459

SEAL KIT

21

6703898

HARNESS

22

6703899

DIODE

23

6649018

SOLENOID

24

13K5

TEE

24

21K5

TEE

25

VALVE See Illustration FRONT AUXILIARY VALVE/ C3266 FRONT AUXILIARY - NOT IN KITS

26

6617708

HOSE

27

6720952

INSTRUCTIONS
