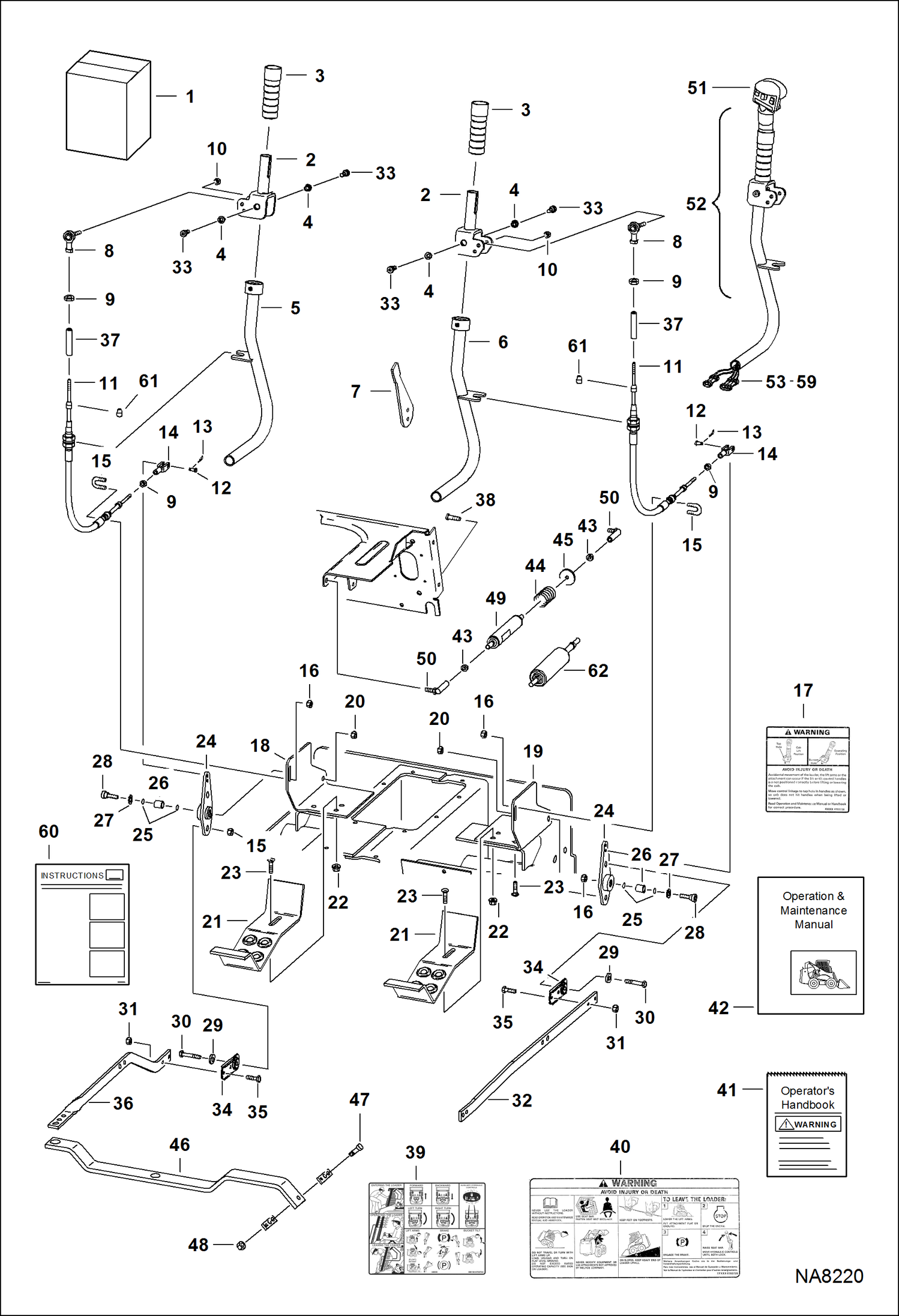

Запчасти Bobcat 800s HAND CONTROLS KIT ACCESSORIES & OPTIONS

1

KIT NLA - Cobra style handle - Ref. 2 - 45, 47, 48, 52 & 60 - Order kit from Sales - Was 6703676 - A

1

KIT NLA - Multi switch handle - Ref. 2 - 45, 47, 48, 52 & 60 - Order kit from Sales - Was 6706823 - A

1

KIT NLA - Order kit from Sales - Was 6708160 - A

2

6702786

LEVER Use W/Ref. 11, (6658613 Cable)

2

6707349

LEVER Use W/Ref. 11, (6666379 Cable)

3

6702621

GRIP Use W/Ref. 11, (6658613 Cable)

3

6707367

GRIP Use W/Ref. 11, (6666379 Cable)

4

6702990

BUSHING bronze sleeve

5

6702787

LEVER Use W/Ref. 11, (6658613 Cable)

5

6707351

LEVER Use W/Ref. 11, (6666379 Cable)

6

6702791

LEVER Use W/Ref. 11, (6658613 Cable)

6

6707352

LEVER Use W/Ref. 11, (6666379 Cable)

7

6702775

LEVER throttle

8

6631036

JOINT

9

8D4

NUT

10

86D4

NUT

11

6658613

CABLE 31.5'' (800,1mm) long

11

6666379

CABLE 33.5'' (850.9mm) long

12

4F4051

PIN

13

6513495

COTTER PIN

14

2J4200

CLEVIS

15

6592766

U-BOLT

16

83D5

NUT 5

17

6703726

DECAL warning

18

6706420

MOUNT cable - Was 6702778 - A

19

6706421

MOUNT cable - Was 6702777 - A

20

85D6

NUT, 5

21

6702776

BRACKET

22

57D6

NUT 5

23

37C620

BOLT carriage

24

6706281

BELLCRANK W/Ref. 26 - Was 6704292 - A

25

58K014

O-RING 10

26

6702782

BUSHING bronze

27

6655781

BEARING thrust

28

38C816

BOLT shoulder

29

6563914

WASHER

30

38C610

BOLT - Was 6704285 - A

31

85D4

NUT 5

32

6703122

LINK tilt

33

38C606

BOLT

34

6658682

BEARING swivel

35

17C410

BOLT 10

36

6702773

LINK lift

37

6658930

BOOT

38

25G612

SCREW socket hex head

39

6703724

DECAL operating

40

6703725

DECAL warning

41

6708159

HANDBOOK, OPERATOR'S W/WIRE ROPE

41

6703678

HANDBOOK KIT

41

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

41

6558310

SLEEVE wire rope

42

6724035

MANUAL operator - Was 6721035 - D

43

8D6

NUT 5

44

6703463

SPRING

45

619021

WASHER, 5

46

LINK See Illustration CONTROL PEDALS/ B20362 NOT IN KIT

47

38C612

BOLT

48

59D6

NUT

49

GAS SPRING NLA - Japan Option - Order Ref. 62 - Was 6649551 - A

50

6599744

BALL JOINT Not in Kit

51

6704454

HANDLE ASSY. See Illustration CONTROLS ELECTRICAL CIRCUITRY/ MS1708 COBRA - Also Order Ref. 53 & 54

51

6680413

HANDLE ASSY R.H. - Multi switch - Also Order Ref. 53, 54, 57 & 58 - Was 6706340 - A

51

6640690

PIN

51

6641176

SEAL

51

6680412

HANDLE ASSY L.H. - Multi switch - Also Order Ref. 53-56 & 59 - Was 6707976 - A

51

6640690

PIN

51

6640691

PIN

51

6641176

SEAL

51

6662257

PIN

51

6680447

DECAL - Was 6677370 - A

52

LEVER ASSY. NLA - R.H. - Cobra style - W/Ref. 2-4, 6, 33, 51, 53 & 54 - Order component parts & 6666379 cable - Was 6704487 - A

52

LEVER ASSY. NLA - L.H. - Cobra style - W/Ref. 2 - 5, 33, 51, 53 & 54 - order component parts & 6666379 cable - Was 6704488 - A

52

LEVER ASSY. NLA - R.H. - Multi switch style - W/Ref. 2 - 4, 6, 33, 51, 53, 54, 57 & 58 - order component parts & 6666379 cable - Was 6707099 - A

52

LEVER ASSY. NLA - L.H. - Multi switch style - W/Ref. 2 - 5, 33, 51, 53 - 56 & 59-order component parts & 6666379 cable - Was 6707100 - A

53

6641179

CONNECTOR 2-pin

53

6640699

CONNECTOR 3-pin

54

6641180

LOCK Use W/ 2-pin connector

54

6640700

LOCK 3-pin

55

6664800

LOCK 3-pin triangle - Was 6664186 - B

56

6641178

CONNECTOR 2-pin

57

6641173

CONNECTOR 6-pin

58

6641181

LOCK 6-pin

59

6664599

CONNECTOR 3-pin triangle - Was 6664184 - B

60

6722847

INSTRUCTIONS - Was 6720917 - A

61

6666534

SEAL

62

7188108

GAS SPRING
