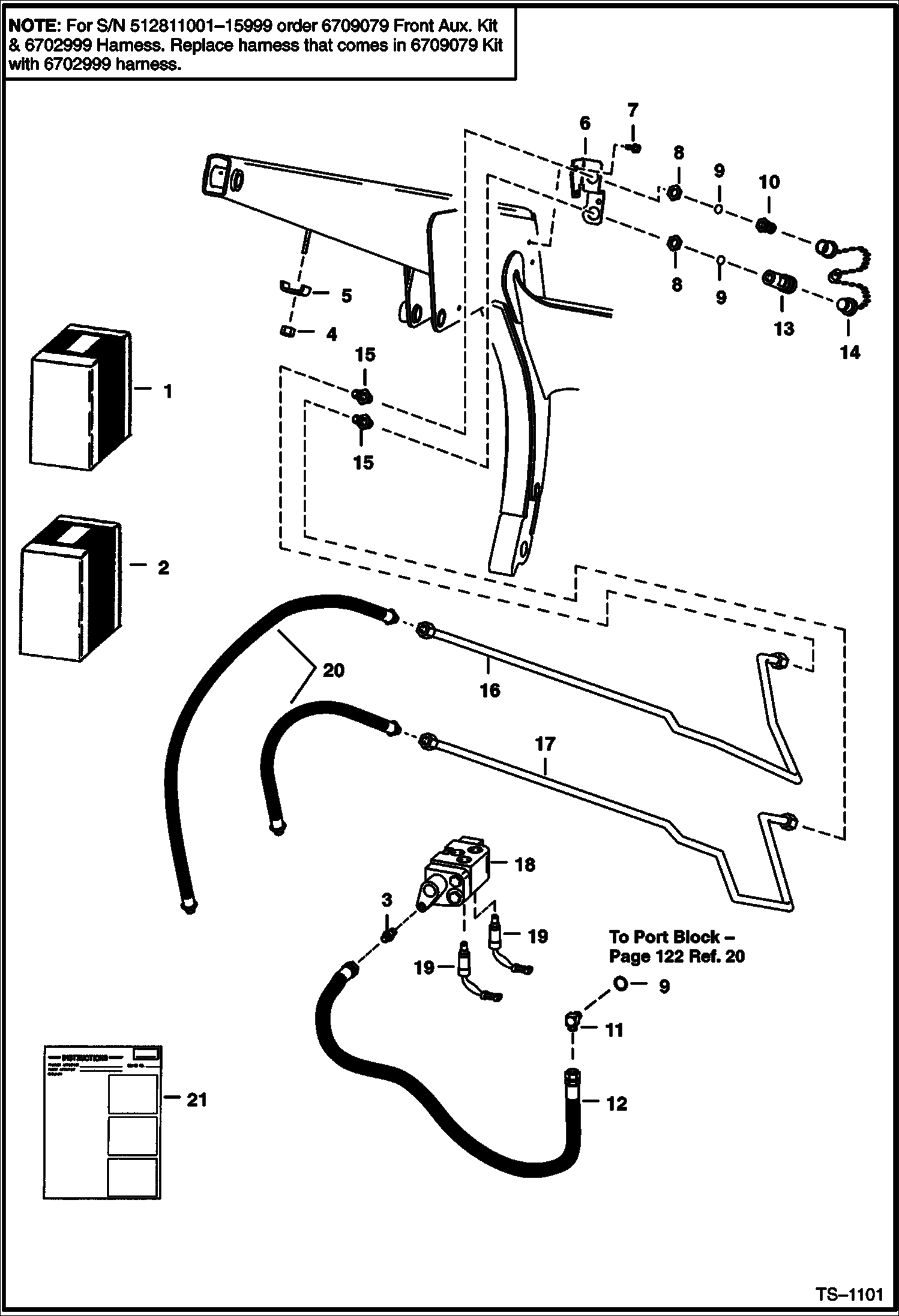

Запчасти Bobcat 800s FRONT AUXILIARY (Left Side) (S/N 5102 50691, 5084 15215, 5101 26791 & Below) (S/N 5103 75001, 5097 15001 & Above) ACCESSORIES & OPTIONS

1

6704746

KIT Ref. 2, 4 - 10, 13 - 17 & 19 - 21

1

KIT NLA - SEE NOTE

2

6704726

KIT See Illustration ELECTRICAL CONTROLS KIT/ C3311 ELEC. CONTROLS KIT

3

15K5

FITTING Part of Base Equipment

4

59D6

NUT

5

6502203

CLAMP Was 6703216 - B

6

6706751

BRACKET Was 6704113 - A

7

84G3112

BOLT 5 5/16'' dia.

7

84G3716

SCREW 5 3/8'' dia. - Was 84G003712B - B

8

86F8

NUT 5

9

79K10

O RING 10

10

6598757

COUPLER, POPPET MALE straight

11

1300913

ELBOW W/Ref. 9

12

6617708

HOSE

13

6598758

COUPLER, POPPET FEMALE straight

13

48K16

O RING 10

13

6665430

BACKUP RING

14

6513709

CAP PLUG W/Plug Assy. - Rubber

14

6515168

CAP steel - Not in Kit

14

6515167

PLUG steel - Not in Kit

15

6579875

CONNECTOR

16

6704140

TUBE

17

6704108

TUBE

18

VALVE See Illustration FRONT AUXILIARY VALVE/ C3266 FRONT AUXILIARY - NOT IN KIT

19

6649018

SOLENOID See Illustration FRONT AUXILIARY VALVE/ C3266

20

6708253

HOSE Was 6530780 - A

21

6722225

INSTRUCTIONS
