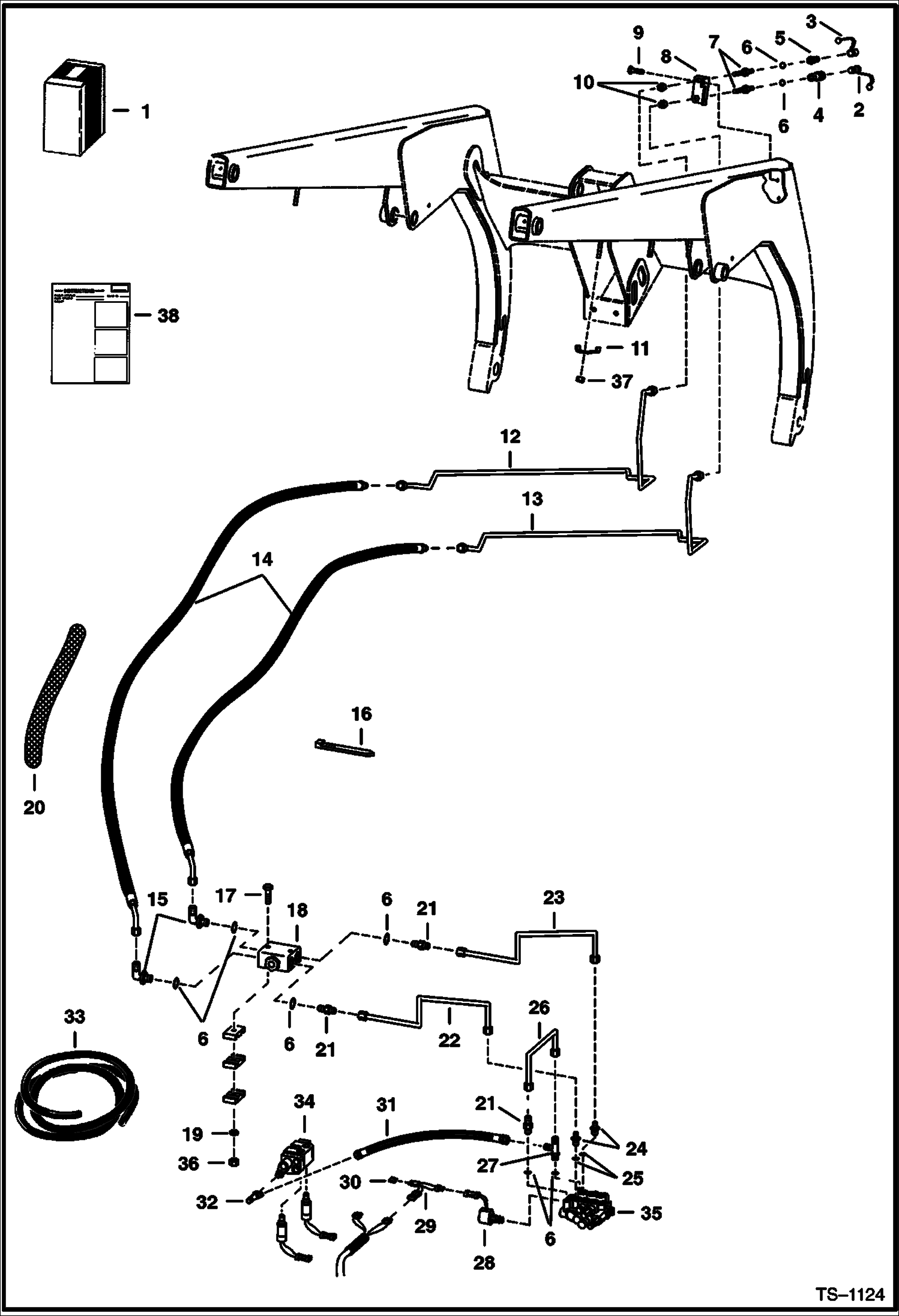

Запчасти Bobcat 800s FRONT AUXILIARY (Right Side) (S/N 5102 50691, 5084 15215, 5101 26791 & Below) (S/N 5103 75001, 5097 15001 & Above) ACCESSORIES & OPTIONS

1

6704818

KIT Ref. 2 - 33 & 38 - Was SALES

2

1519324

PLUG

3

1513549

CAP

4

6648967

QUICK COUPLER female

4

6655795

SEAL KIT

5

6648969

QUICK COUPLER male

6

79K6

O RING 10

7

45K5

FITTING

8

6706750

BRACKET Was 6703411 - A

9

84G3112

BOLT 5 5/16'' dia.

9

84G3716

SCREW 5 3/8'' dia. - Was 84G003712B - B

10

86F5

NUT

11

6703216

CLAMP

12

6703413

TUBE

13

6703412

TUBE

14

6703430

HOSE Was 6700281 - B

15

17K5

ELBOW W/Ref. 6

16

6624289

STRAP, TIE Was 6512052 - A

17

17C560

BOLT

18

6630527

VALVE lock

18

6660645

SEAL KIT

19

25E15

WASHER

20

COVER NLA - 35''(889,0 mm) long - Order Ref. 33

21

15K5

FITTING W/Ref. 6

22

6702511

TUBE

23

6702512

TUBE

24

731795

CONNECTR W/Ref. 25

25

79K10

O RING 10

26

6702507

TUBE

27

21K5

TEE W/Ref. 6

28

6653395

VALVE, SOLENOID

28

6665758

VALVE W/O-Ring

28

79K7

O RING 10

28

6717708

COIL, 14 VOLT 14 volt - w/nut - Was 6665759

28

6679961

NUT

28

6586459

SEAL KIT

29

6703898

HARNESS

30

6703899

DIODE

31

6617708

HOSE

32

13K5

TEE

33

6651436

HOSE COVER bulk - Sold Per Foot

34

VALVE See Illustration FRONT AUXILIARY VALVE/ C3266 FRONT AUXILIARY - NOT IN KIT

35

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ MS1701 See Illustration HYDRAULIC CONTROL VALVE/ TS1008 CONTROL - NOT IN KIT

36

85D5

NUT 5 Not in Kit

37

59D6

NUT Not in Kit

38

6722237

INSTRUCTIONS
