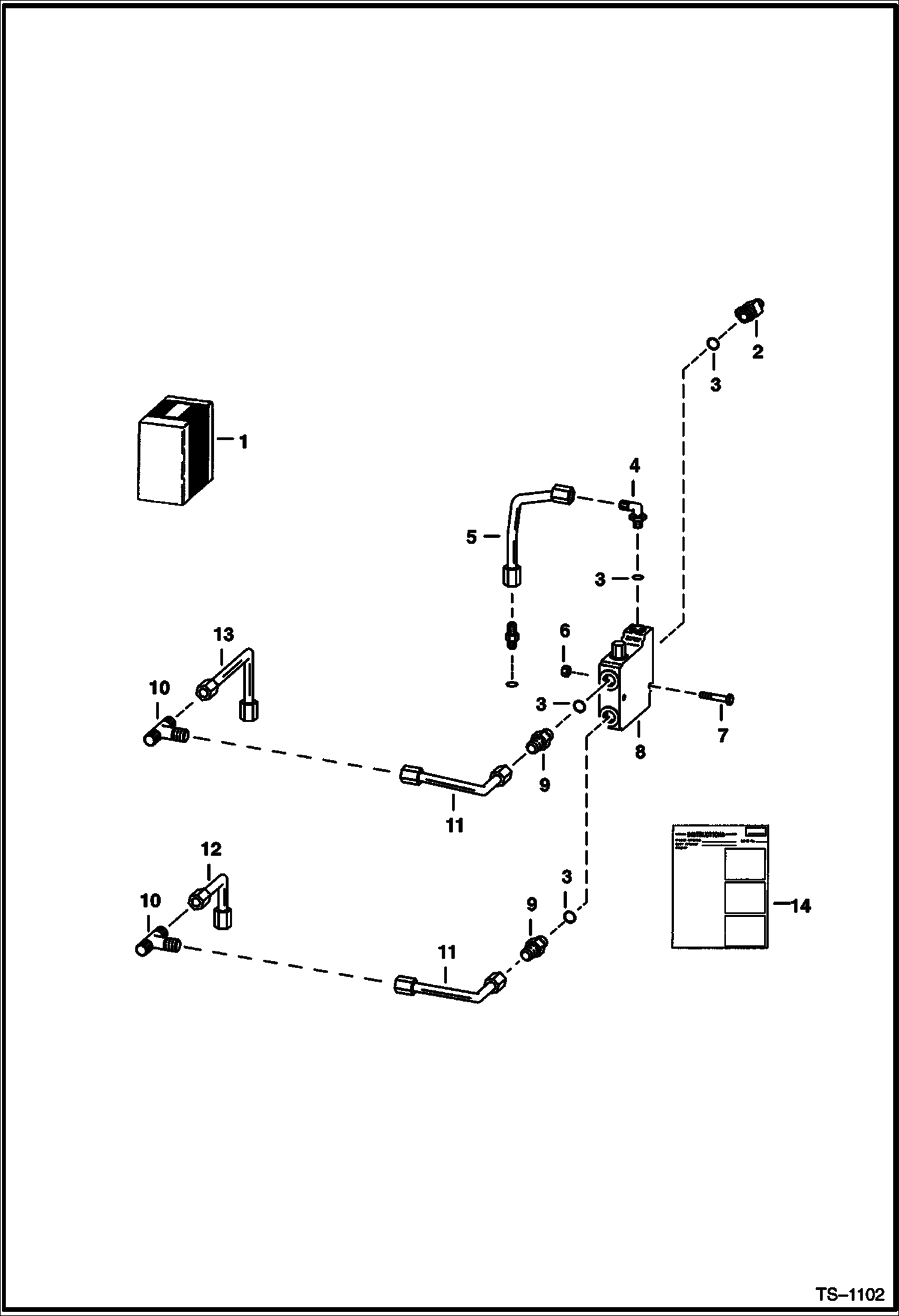

Запчасти Bobcat 800s BUCKET POSITIONING VALVE KIT ACCESSORIES & OPTIONS

1

6704749

KIT Ref. 2 - 14 - BPV equipped w/solenoid - See Installation Instruction 6720321 for other parts required for on/off function

2

6578183

TEE W/Ref. 3

3

79K10

O RING 10

4

17K7

ELBOW W/Ref. 3

5

6579669

TUBE

6

85D5

NUT 5

7

17C540

BOLT

8

VALVE See Illustration BUCKET POSITIONING VALVE/ C3062 NLA- Order 6673959 valve-if you don't have an on/off switch also order 6647784 plug, 79K8 o-ring, 6647785 spring, & 6647783 load check- Was 66663

9

15K7

FITTING W/Ref. 3

10

10K7

TEE

11

6579672

TUBE

12

6579675

TUBE

13

6579674

TUBE

14

6722226

INSTRUCTIONS
