Запчасти Bobcat 800s ENGINE & ATTACHING PARTS (Engine Mounts) POWER UNIT

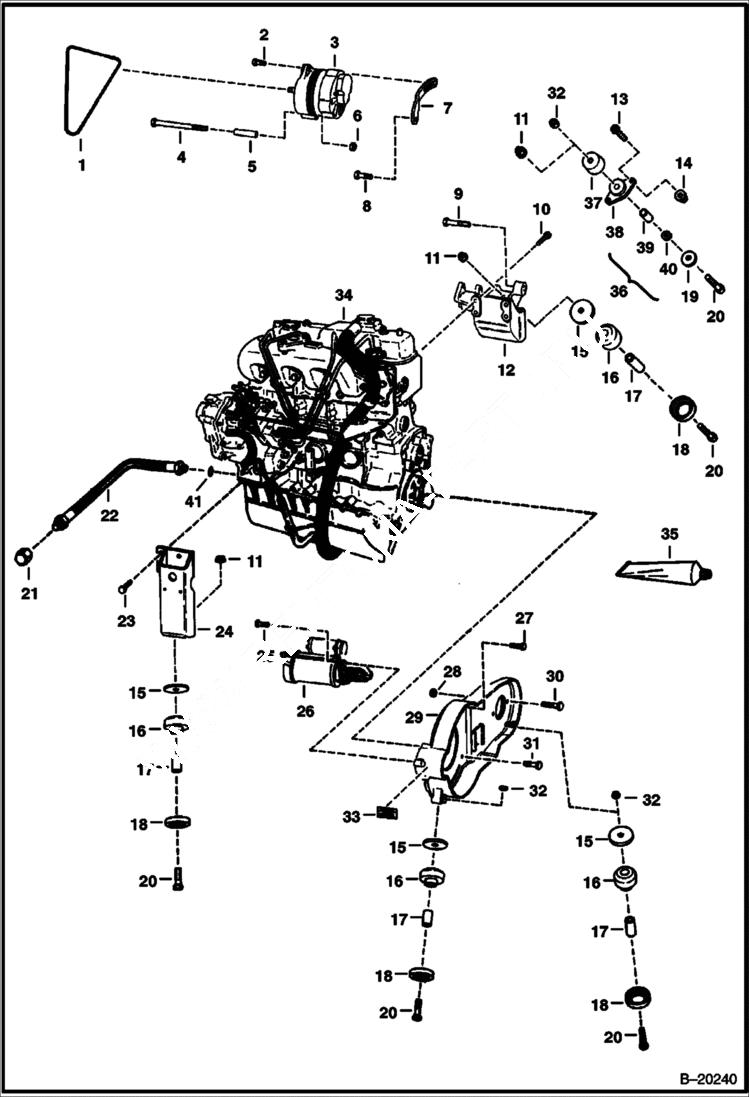

Схема запчастей Bobcat 800s - ENGINE & ATTACHING PARTS (Engine Mounts) POWER UNIT

Артикул

Название

Примечание

Количество

1

6655314

BELT, ALT alternator

2

35C516

BOLT 10

3

ALTERNATOR See Illustration ALTERNATOR/ C3312

4

17C6104

BOLT

5

6579805

SPACER

6

61D6

NUT 5

7

6579771

BRACKET

8

29CM825

BOLT

9

17C840

BOLT hyd. pump mounting

10

5CM1035

BOLT

11

83D8

NUT 5

12

MOUNT See Illustration ENGINE & ATTACHING PARTS/ B20355 ENGINE, ALTERNATOR & HYD. PUMP

13

25G616

SCREW

14

57D6

NUT 5

15

6705106

WASHER

16

MOUNT See BTI273 NLA

16

6661785

MOUNT, ENG

17

BUSHING See BTI273 NLA

17

6706043

SPACER

18

6661787

WASHER

19

WASHER See BTI273 NLA - Was 6702546 - C

20

17C852

BOLT 5 Was 17C000848B - B

21

36K7

FITTING

22

6701344

HOSE engine oil drain - W/Ref. 41

23

6659937

BOLT Was 3984320B - A

24

6579635

MOUNT

25

35C620

BOLT 5

26

STARTER See Illustration HYDROSTATIC CIRCUITRY/ E2119

27

5CM1025

BOLT

28

85D8

NUT, 5

29

6578951

MOUNT

30

17C832

BOLT hyd. pump mounting

31

12CM1230

BOLT

32

6652918

NUT

33

6702942

DECAL See Illustration DECALS/ B20370 WARNING

34

ENGINE See Illustration ENGINE & GASKET KITS/ B13269

35

6650407

ADHESIVE tube - 1 oz - Used on Ref. 9

36

MOUNT KIT See BTI273 NLA - Ref. 38 - 40 - Was 6722145 - C

37

SNUBBER CUP See BTI273 NLA - Was 6703733 - C

38

MOUNT See BTI273 NLA - Was 6660453 - C

39

BUSHING See BTI273 NLA - Was 6704449 - C

40

WASHER See BTI273 NLA - Was 6704448 - C

41

79K10

O RING 10

Выбрано товаров: 43
