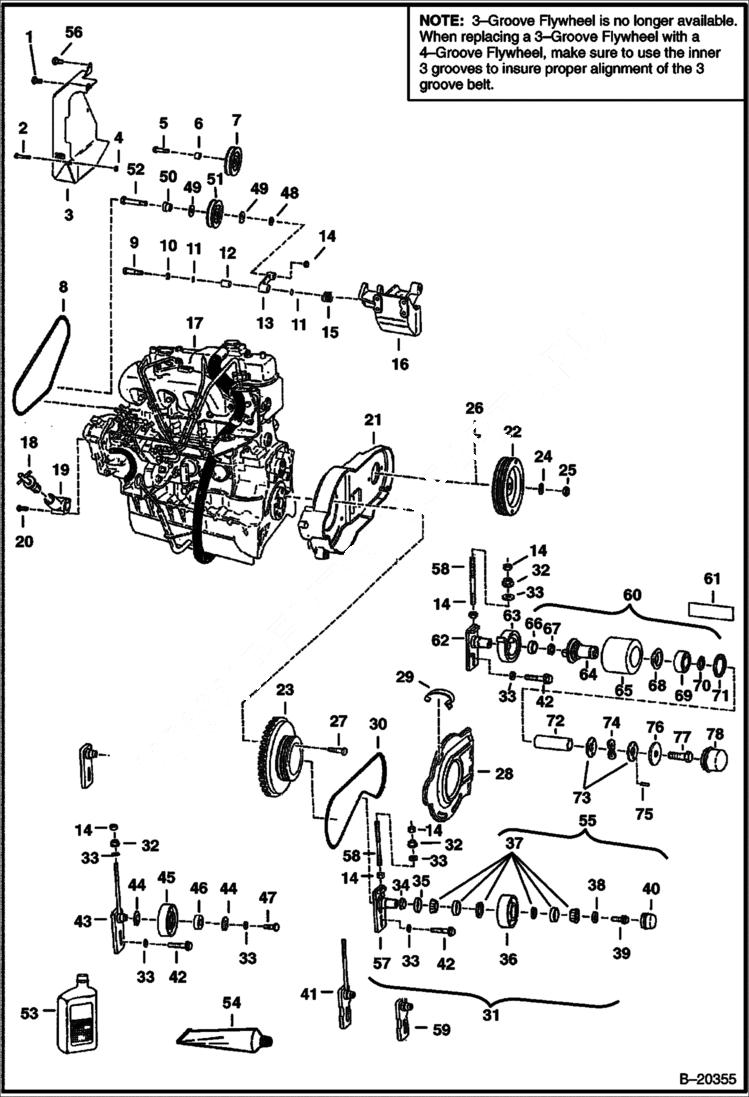

Запчасти Bobcat 800s ENGINE & ATTACHING PARTS (Belt Drive System) POWER UNIT

1

1CM812

BOLT

2

35C528

SCREW

3

6579759

SHIELD

4

61D5

NUT

5

35C628

BOLT

6

6578452

SPACER

7

PULLEY NLA - cooling fan drive idler - 3.76'' (95,5 mm) dia. -Order 6662997 Pulley - Was 6653253 - B

7

6662997

PULLEY, FAN DRIVE IDLER cooling fan drive idler - 4'' (101,6 mm) dia.

8

6701265

BELT, FAN cooling fan drive

9

38C820

SCREW Was 6577807 - A

10

6655781

BEARING thrust

11

6704820

O-RING Was 58K000014B - B

12

BEARING NLA - bronze - Was 6655780 - A

12

6670682

BEARING nylon

13

6725212

ARM W/Ref. 12 - Was 6703507 - A

14

61D6

NUT 5

15

6700722

SPRING

16

MOUNT NLA - engine, alt., & hyd. pump - Order 6706165 Mount, Ref. 48, 49 (2) & 50-52 - Was 6579358 - A

16

6706165

MOUNT engine, alt., & hyd. pump - with extra ear on left surface W/ 3/8'' dia. threaded hole

17

ENGINE See Illustration ENGINE & GASKET KITS/ B13269

18

6649962

OIL FILL CAP oil fill

19

6568956

OIL FILL TUBE

20

1CM650

SCREW Was 1CM00656B - D

21

6578951

MOUNT

22

6579333

PULLEY hyd. pump - 3 groove

22

6705807

PULLEY hyd. pump - 4 groove

23

FLYWHEEL NLA - 3 groove - Order 6705805 Flywheel & Ref. 28 - SEE NOTE - Was 6701888 - A

23

6705805

FLYWHEEL 4 groove

23

6513662

RING GEAR

24

6576033

WASHER

25

92D12

NUT Was 86D000012B - B

26

6J807

KEY, WOODRUFF

26

6682261

KEY square key

27

6665036

BOLT Was 6631605 - A

28

6705808

SHIELD Was 6700605 - A

29

6701160

CLIP

30

6660766

BELT, DRIVE pump drive - 3 groove - Was 6658306 - A

30

6662855

BELT, DRIVE pump drive - 4 groove

31

IDLER ASSY. NLA - FIXED - REF. 34 - 41 - 3 GROOVE - Order Ref. 60 & 61 - WAS 6705451 - A

31

6708606

IDLER ASSY. fixed - Ref. 14, 34-39, 57 & 58 (4 groove - Was 6707192) - A

32

57D6

NUT 5

33

616783

WASHER

34

6661070

SLEEVE wear - Also Order Ref. 35

35

6661066

SEAL Also Order Ref. 34

36

6704416

PULLEY groove - Also Order Ref. 55 - 3

36

6707191

PULLEY groove - Also Order Ref. 55 - 4 - Was 6705810 - A

37

BEARING NLA - Order Ref. 55 - Was 6661071 - A

38

6704484

WASHER

39

35C612

BOLT

40

6660967

CAP grease

41

BRACKET NLA - 3 groove-Order 6708607 Bracket Ref. 58, (6708598 Rod & Ref. 14) (62D000006B Nut) - Was 6705450 - A

41

BRACKET NLA - 4 groove - Order Ref. 14, 57 & 58 - Was 6705859 - A

42

17C620

BOLT

43

BRACKET NLA - Order Ref. 31

44

6653758

SNAP RING

45

PULLEY NLA - idler - Order Ref. 31

46

BEARING NLA - Order Ref. 31

47

17C612

BOLT 5

48

6704444

WASHER

49

6660995

GREASE RING grease

50

6704443

BUSHING spacer

51

6662997

PULLEY, FAN DRIVE IDLER cooling fan drive idler - 4'' (101,6 mm) dia.

52

17C636

BOLT

53

6661405

OIL quart can - For Use W/Ref. 31

54

6633583

SEALANT, POLYURETHANE 300 ML Use W/Ref. 34 & 41 and W/Ref. 36 & 40

55

6722248

REPAIR KIT bearing - Ref. 34-37 & 40

56

1CM870

BOLT

57

6708567

BRACKET

58

6708598

ROD

59

6708607

BRACKET

60

6901216

IDLER, BELT DRIVE ASSY See BTI322 SPRING LOADED TO REPLACE 3-GROOVE FIXED IDLER - Also Order Ref. 58 & 61 - W/REF. 62 - 78 - Was 6711698 - B

61

6711905

DECAL belt tension - spring loaded Idler - Was 6709030 - B

62

6735883

BRACKET Was 6708767 - A

63

6705491

SPRING torsion

64

HUB ASSY NLA - Order Ref. 60

65

6704391

PULLEY

66

6661112

SEAL

67

6703168

BEARING thrust

68

6664209

SEAL

69

BEARING NLA - ball - Order Ref. 50

70

6658536

RING

71

6658847

RING

72

6704393

BEARING bronze sleeve

73

6705231

WASHER

74

6710585

WASHER wave spring

75

6713370

PIN Was 14J001808B - B

76

6705232

WASHER

77

17C610

BOLT

78

6708770

CAP grease
