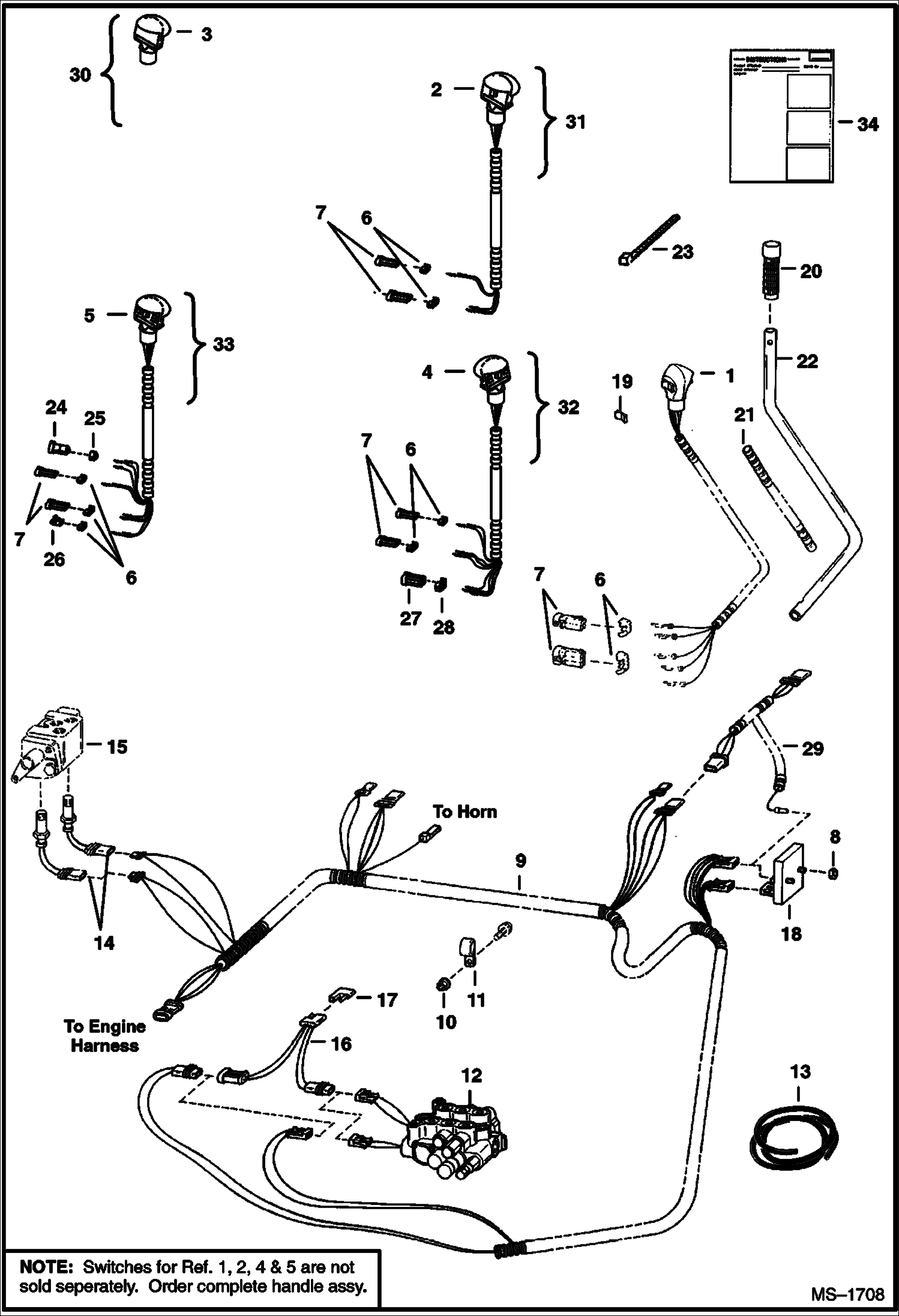

Запчасти Bobcat 800s CONTROLS ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM
№
Артикул
Название
Примечание
Количество
1
6704454
HANDLE ASSY. Cobra style - W/Ref. 19 & 21 - Also Order Ref. 6 & 7
2
6680414
HANDLE ASSY. two switch - Also Order Ref. 6 & 7 or Ref. 31 - Was 6705921 - A
2
6640690
PIN
2
6641176
SEAL
3
6680415
HANDLE LH blank - Was 6705920 - A
4
6680413
HANDLE ASSY R.H. multi switch - Also Order Ref. 6, 7, 27 & 28 or Ref. 32 - Was 6706340 - A
4
6640690
PIN
4
6641176
SEAL
5
6680412
HANDLE ASSY L.H. multi switch - Also Order Ref. 6, 7 & 24-26 or Ref. 33 - Was 6707976 - A
5
6640690
PIN
5
6640691
PIN
5
6641176
SEAL
5
6662257
PIN
5
6680447
DECAL Was 6677370 - A
6
6641180
LOCK Use W/ 2-pin connector
6
6640700
LOCK 3-pin
7
6641179
CONNECTOR 2-pin
8
85D4
NUT 5
9
HARNESS NLA - Order 6705283 Harness - Was 6703878 - A
9
6705283
HARNESS
9
6702999
HARNESS Use W/O Ref. 15
10
89D6
NUT
11
30H42
CLAMP
12
VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ MS1701 See Illustration HYDRAULIC CONTROL VALVE/ TS1008
13
6584978
CONDUIT bulk - sold per foot
14
6649018
SOLENOID
15
VALVE See Illustration FRONT AUXILIARY VALVE/ C3266 FRONT AUXILIARY
16
6703898
HARNESS Not Use W/ 6702999 Harness
17
6703899
DIODE Not Use W/ 6702999 Harness
18
6671669
MODULE, CONTROL AUX aux. control - Was 6706215 - C
19
6664315
DECAL switch
21
CONDUIT NLA - 36'' (914,4 mm) long - Order Ref. 13
22
6702543
LEVER, STEERING See Illustration HAND CONTROLS/ B20352
23
6610510
TIE
24
6664599
CONNECTOR 3-pin triangle - Was 6664184 - A
25
6664800
LOCK 3-pin triangle - Was 6664186 - A
26
6641178
CONNECTOR 2-pin
27
6641173
CONNECTOR 6-pin
28
6641181
LOCK 6-pin
29
6705284
HARNESS Use for momentary reverse flow
30
6706565
KIT L.H. blank handle - Ref. 3 & 34
31
6706566
KIT two switch handle - Ref. 2, 6, 7 & 34
32
6706567
KIT R.H. multi switch handle - Ref. 4, 6, 7, 27, 28 & 34
33
6706568
KIT L.H. multi switch handle - Ref. 5, 6, 7, 24, 26 & 34
34
6722759
INSTRUCTIONS
