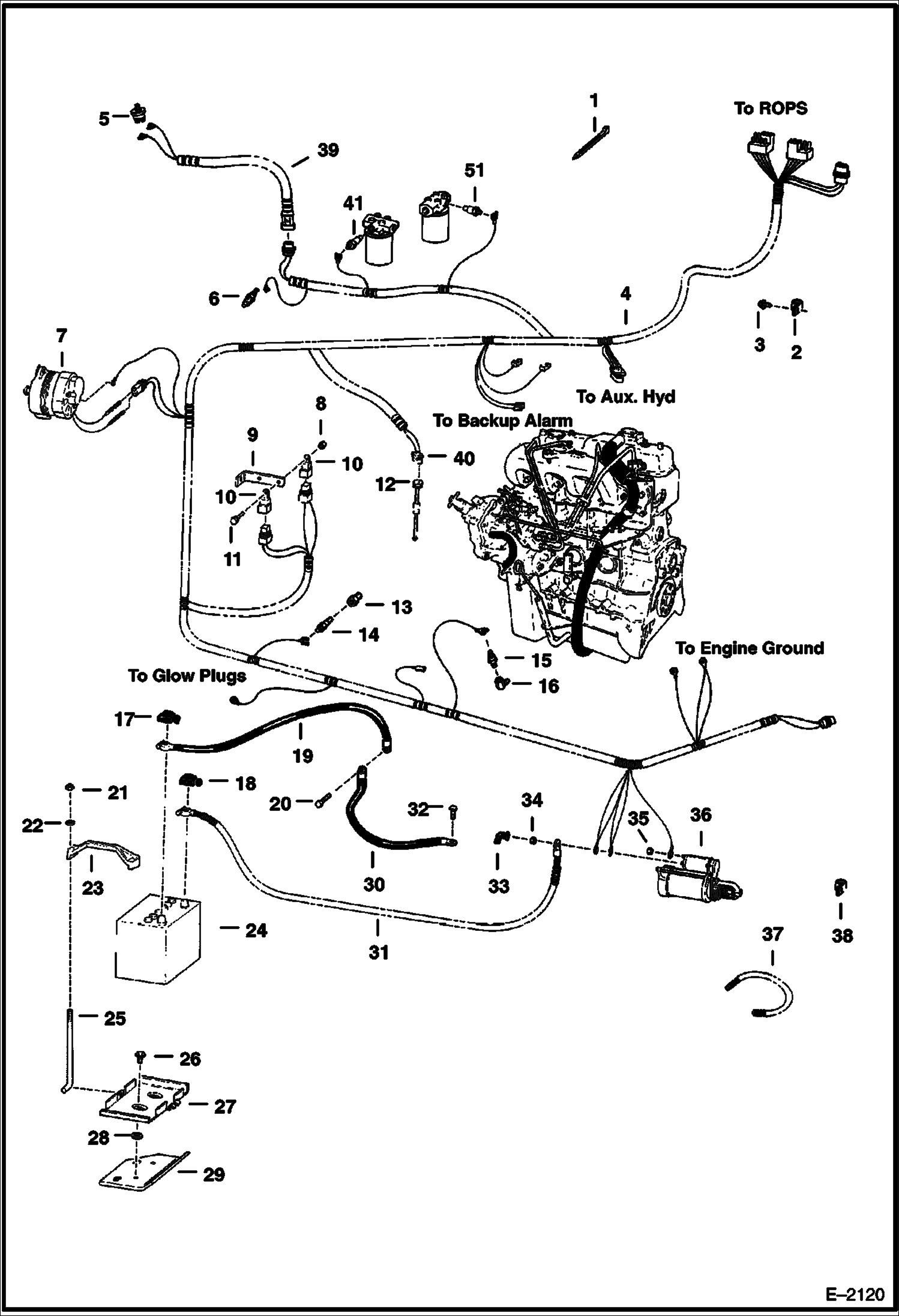

Запчасти Bobcat 800s ENGINE ELECTRICAL CIRCUITRY (W/O B.O.S.S. Option) ELECTRICAL SYSTEM

1

6610510

TIE Was 1715312B - A

2

30H57

CLAMP

2

30H50

CLIP

3

84G3116

SCREW

4

HARNESS NLA - engine - Order 6704932 Harness & Ref. 39 - Was 6704587 - A

4

6704932

HARNESS engine - Use W/Ref. 39

4

6706222

HARNESS engine - Use W/Ref. 39

5

6661341

SWITCH hyd. chg. pressure

6

6632633

SWITCH hyd temp

7

ALTERNATOR See Illustration ALTERNATOR/ C3312

8

50D12

NUT

9

6702650

MOUNT

10

6651975

SWITCH relay - starter & glow plug

11

45G1212

BOLT

12

7216451

SENSOR, FUEL W/ O-ring - Was 6680453 - A

12

79K14

O RING 10

12

6658958

SENSOR fuel - W/Gasket

12

6717579

GASKET

13

6564767

ADAPTER

14

6658818

SENDER eng temp - threaded connector

15

6631010

SWITCH, PRESS OIL ENG eng. oil pressure

16

6707040

ELBOW Was 6658634 - A

17

6599652

BOOT

18

2356058

BOOT

19

6579806

CABLE ground

20

5CM1016

BOLT Was 2CM01016B - B

21

59D5

NUT 5

22

25E15

WASHER

23

6569203

CLAMP

24

6665032

BATTERY, DRY 700 AMP Was 6631611 - A

24

6630153

BATTERY CAP

25

6576280

BOLT

26

84G3716

SCREW 5

27

6712536

PAN Was 6577809 - A

28

6555455

WASHER

29

6579989

BRACKET

30

6563025

CABLE ground

31

CABLE NLA - positive -34''(863,6mm) long - Order 6576188 cable, 30''(762mm) of Ref. 37 - Was 6579809 - A

31

6576188

CABLE positive - 40'' (1016mm) long

32

84G3712

BOLT 5

33

6560172

COVER

34

4DM10

NUT

35

4DM5

NUT

36

STARTER See Illustration HYDROSTATIC CIRCUITRY/ E2119

37

6563505

CONDUIT bulk - Sold Per Foot

38

30H46

CLIP

39

6704931

HARNESS

40

6646383

CONNECTOR fuel sender

40

6632946

TERMINAL female

41

6632053

SWITCH See Illustration HYDROSTATIC OIL FILTER/ B20148A FILTER
