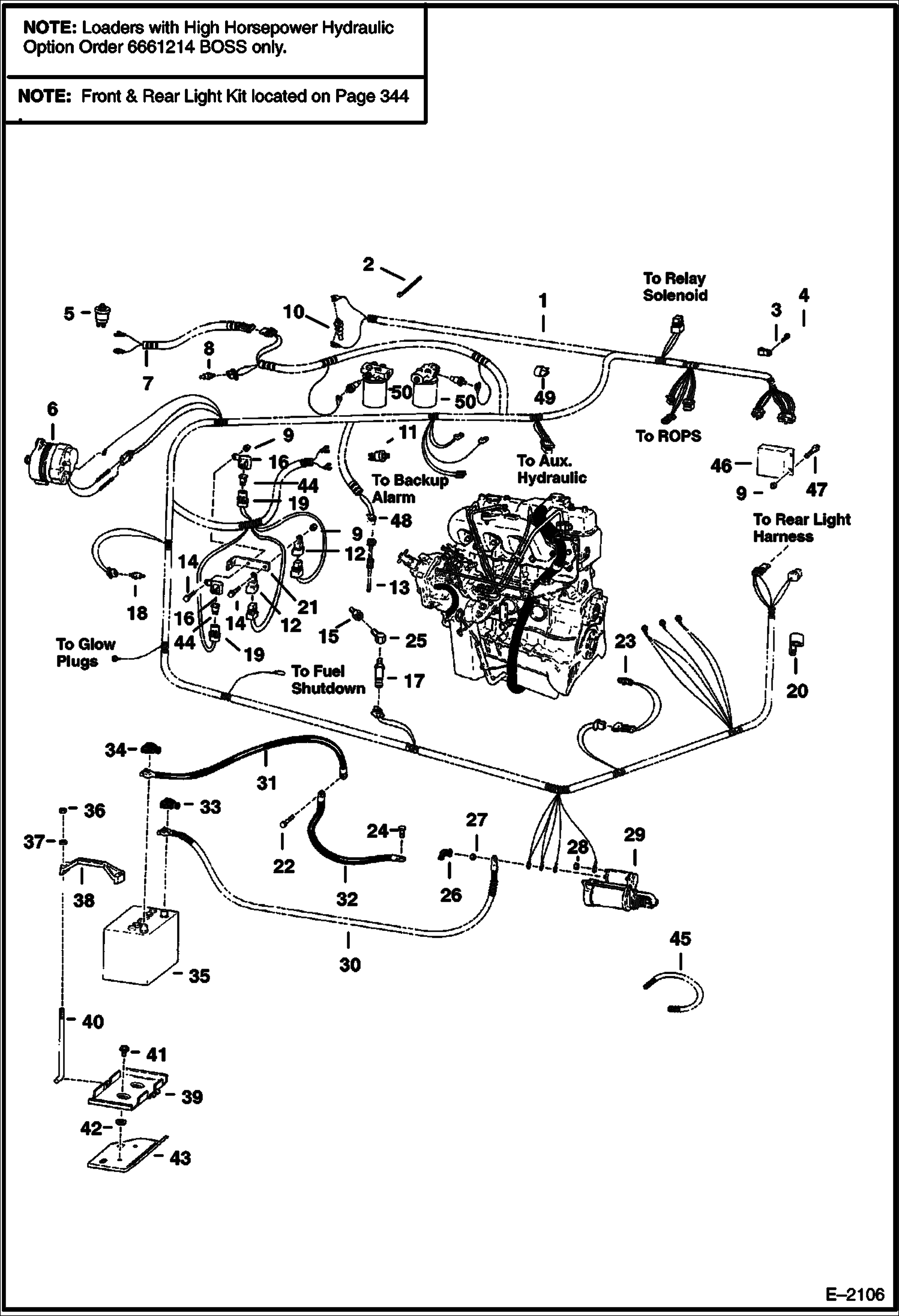

Запчасти Bobcat 800s ENGINE ELECTRICAL CIRCUITRY (W/ B.O.S.S. Option) ELECTRICAL SYSTEM

1

6704234

HARNESS engine -W/resistor- for one post hyd. chg. press. sender - solenoid on L.H. side of loader

1

6706094

HARNESS engine - W/O resistor - for two post hyd. chg. press. sender - solenoid on R.H. side of loader

2

6610510

TIE Was 6705035 - A

3

30H57

CLAMP

3

30H50

CLIP

4

84G3116

SCREW

4

84G3712

BOLT 5

5

SENDER See BTI271 NLA - one post - hyd. chg. pressure - Was 6655589 - A

5

6661518

SENSOR two post - hyd. chg. pressure

6

ALTERNATOR See Illustration ALTERNATOR/ C3312

7

6704345

HARNESS transducer - for one post hyd. chg. press. sender

7

6704931

HARNESS transducer - for two post hyd. chg. press. sender

8

6654200

SENSOR hydro. temp

9

50D12

NUT

10

6648326

SWITCH coolant level

11

6660316

SWITCH vacuum

12

6651975

SWITCH relay - starter & glow plug

13

7216451

SENSOR, FUEL W/ O-ring - Was 6680453 - A

13

79K14

O RING 10

13

6658958

SENSOR fuel - W/Gasket

13

6717579

GASKET

14

45G1212

BOLT

15

6667584

NIPPLE Was 6651946 - A

16

6657306

CAP, FUSE

17

6660204

SENSOR eng. oil pressure

18

6654202

SENSOR eng. temp.

19

6657305

HOLDER fuse

20

30H46

CLIP

21

6702650

MOUNT

22

5CM1016

BOLT Was 2CM01016B - A

23

6684037

SENSOR RPM Counter - Was 6658260 - B

24

84G3712

BOLT 5

25

6707040

ELBOW Was 6658634 - A

26

6560172

COVER

27

4DM10

NUT

28

4DM5

NUT

29

STARTER See Illustration STARTER/ D2119

30

CABLE NLA - positive - 34''(863,6mm) long - order 6576188 Cable - W/30'' (762 mm) of Ref. 45 - Was 6579809 - A

30

6576188

CABLE positive - 40''(1016mm) long

31

6579806

CABLE ground

32

6563025

CABLE ground

33

2356058

BOOT

34

6599652

BOOT

35

6665032

BATTERY, DRY 700 AMP Was 6631611 - A

35

6630153

BATTERY CAP

36

59D5

NUT 5

37

25E15

WASHER

38

6569203

CLAMP

39

6712536

PAN Was6577809 - A

40

6576280

BOLT

41

84G3716

SCREW 5

42

6555455

WASHER

43

6579989

BRACKET

44

6702444

FUSE 25A 5

45

6563505

CONDUIT bulk - Sold Per Foot

46

6667828

BOSS initialized - Was 6661214 - A

46

6666916

BOSS not initialized - Was 6722444 - A

46

6666918

BOSS backup - Was 6661110 - A

47

10C412

BOLT

48

6646383

CONNECTOR fuel sender

48

6632946

TERMINAL female

49

6599698

CLIP

50

6660260

SWITCH See Illustration HYDROSTATIC OIL FILTER/ B20148 FILTER
