Запчасти Bobcat 800s CAB ELECTRICAL CIRCUITRY (W/O B.O.S.S. Option) ELECTRICAL SYSTEM

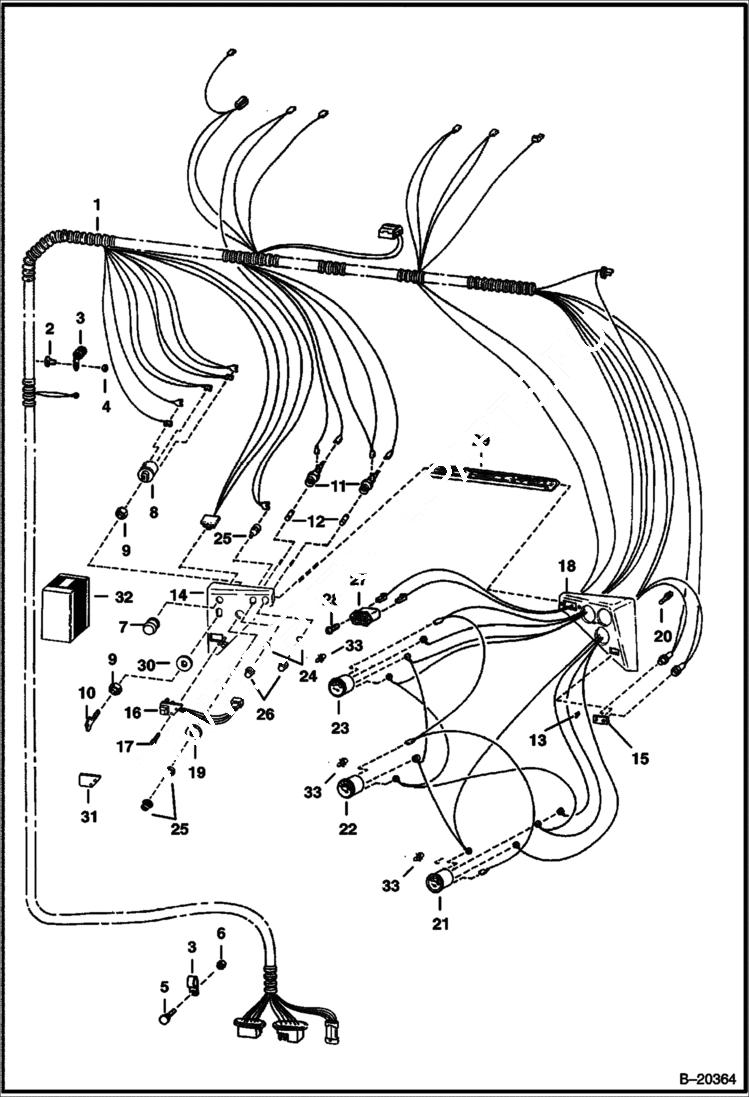

Схема запчастей Bobcat 800s - CAB ELECTRICAL CIRCUITRY (W/O B.O.S.S. Option) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6704494

HARNESS

2

35C416

BOLT

3

30H54

CLIP

4

83D4

NUT 10

5

10C412

BOLT

6

61D4

NUT 5

7

6512808

SWITCH Was 6657719 - A

8

SWITCH See BTI289 NLA - ignition - Order Ref. 32 - Was 6519592 - A

8

6665606

SWITCH ignition W/Ref. 9 & 10

9

6598721

NUT For Ref. 8 (NLA/6519592 Switch)

9

6674202

NUT For Ref. 8 (6665606 Switch)

10

6512809

KEY ignition - For Ref. 8, (NLA/6519592 Switch)

10

KEY NLA - for 6665606 switch - Order 6693241- Was 6709527 - A

10

6693241

KEY 10 ignition - single key W/O ring

11

6513469

HOLDER fuse

12

1319451

FUSE 5

13

6572065

BULB

14

6704635

PANEL L.H.

15

6572056

LENS

16

6704724

SWITCH aux. controls module - Was 6704694 - A

17

6669225

BOLT Was 58G000408B - A

18

6572053

PANEL RH

19

6703705

PLATE For Ref. 8, (NLA 6519592 Switch)

19

6709028

PLATE For Ref. 8 (6665606 Switch) - Was 6708701 - A

20

6702642

SCREW

21

GAUGE NLA - eng temp - W/clamp - Order 6669663 gauge & 6679027 clamp - Was 6658817 - A

21

6669663

GAUGE eng temp - W/O clamp

22

VOLTMETER NLA - W/clamp - Order 6669664 voltmeter & 6679027 clamp - Was 6658819 - A

22

6669664

VOLTMETER W/O clamp

23

FUEL GUAGE NLA - W/clamp - Order 6669665 gauge & 6679027 clamp - Was 6658820 - A

23

6669665

FUEL GUAGE W/O clamp

24

6514643

GASKET

25

6632973

SWITCH glow plug

26

6514642

CAP fuse holder

27

6664886

HOURMETER Was 6631657 - A

28

65G608

SCREW

29

6578780

CROSSMEMBER

30

PLATE NLA - brake start - Order Ref. 32 - Was 6702263 - A

31

PLATE NLA - Order Ref. 16

32

6724282

SWITCH KIT Ref. 8, 10 & 19

33

6599696

SOCKET & BULB assy.

33

895771

#161 BULB
