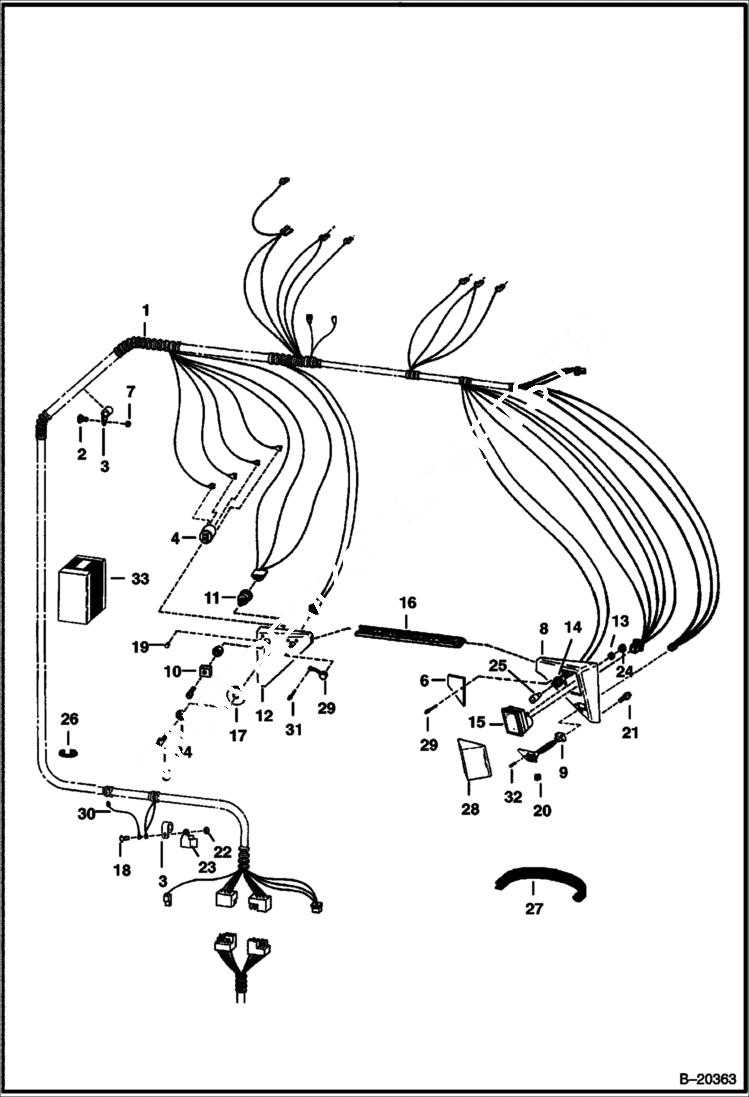

Запчасти Bobcat 800s CAB ELECTRICAL CIRCUITRY (W/ B.O.S.S. Option) ELECTRICAL SYSTEM

1

6705136

HARNESS Was 6704407 - A

2

35C412

BOLT

2

35C412

BOLT

2

35C412

BOLT

2

35C412

BOLT

2

35C412

BOLT

3

30H54

CLIP

3

30H54

CLIP

3

30H54

CLIP

3

30H54

CLIP

3

30H54

CLIP

3

30H54

CLIP

3

30H54

CLIP

3

30H54

CLIP

3

30H54

CLIP

3

30H54

CLIP

3

30H54

CLIP

4

SWITCH See BTI289 NLA - ignition - Order Ref. 33 - Was 6519592 - A

4

6665606

SWITCH ignition

5

6512809

KEY ignition - For Ref. 4, (NLA/6519592 Switch)

5

KEY NLA - for 6665606 switch - includes two keys W/ring - Order 6693241 - Was 6709527 - A

5

6693241

KEY 10 ignition - single key W/O ring

6

6702678

PLATE service codes

7

83D4

NUT 10

7

83D4

NUT 10

7

83D4

NUT 10

7

83D4

NUT 10

7

83D4

NUT 10

8

6702660

PANEL R.H.

9

6667903

SWITCH, AUX aux. controls module - Was 6700603 - A

10

6599781

KNOB light switch

11

6512808

SWITCH

12

6702608

PANEL L.H.

13

17E8

WASHER

14

6649331

SOCKET light - W/6'' wire leads

15

DISPLAY LCD monitor - mounted w/nuts - NLA - order 7131641 kit - Was 6665923

15

7131641

KIT, DISPLAY LCD LCD monitor - screw mounted - includes screws, display & instructions

15

LCD monitor NLA - LCD monitor mounted w/screws

15

6691063

SCREW

15

6904890

INSTRUCTIONS

16

6578780

CROSSMEMBER

16

6578780

CROSSMEMBER

16

6578780

CROSSMEMBER

16

6578780

CROSSMEMBER

16

6578780

CROSSMEMBER

17

PLATE NLA - For Ref. 4 (NLA/6519592 Switch) - Order Ref. 33 - Was 6702263 - A

17

6709028

PLATE For Ref. 4 (6665606 Switch) - Was 6708701 - A

18

10C412

BOLT

19

6660955

PLUG

20

6660594

BUTTON on/off

21

6702642

SCREW

22

61D4

NUT 5

23

6651975

SWITCH relay

24

12D8

NUT

25

6578357

BULB

26

MOULDING NLA - 6'' (152,4 mm) long - Order Ref. 27

27

6630138

MOULDING bulk - Sold Per Foot

28

6700487

SHIELD snap in place

29

6651703

CAP

30

6705978

WIRE ground - See S/L Feb. 93

30

6705978

WIRE

30

6705978

WIRE

30

6705978

WIRE

31

6704892

RIVET Was 6658512 - A

32

6669225

BOLT Was 58G000408B - A

33

6724282

SWITCH KIT Ref. 4, 5 & 17

34

6598721

NUT For Ref. 4 (NLA/6519592 Switch)

34

6674202

NUT For Ref. 4 (6665606 Switch)
