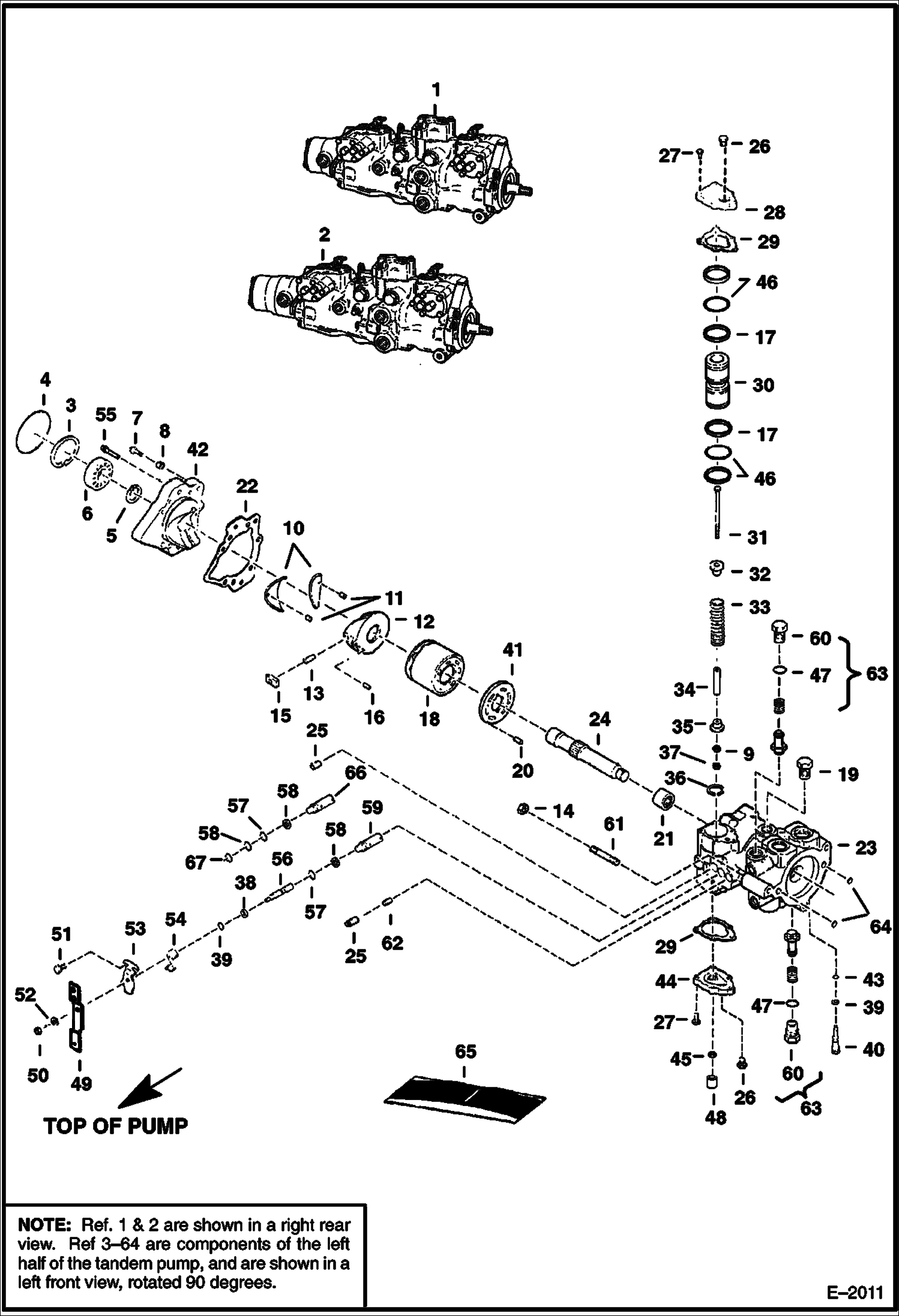

Запчасти Bobcat 800s HYDROSTATIC PUMP (Left Half) (M91-46910, 46911, 46916, 46917, 46918, 46919, 46921, 46133 & 4 HYDROSTATIC SYSTEM

1

PUMP NLA - Order 6671021 Pump - W/gear pump -M91-46911-2 ports each side - Was 6660481 - A

1

6662350REM

PUMP, HYD COMPLETE, W/O GEAR PUMP Remanufactured - M91-46911R W/gear pump - 2 ports each side - Was 6662350 - A

1

6671021REM

PUMP, HYD COMPLETE, W/O GEAR PUMP W/gear pump - M91-46919 -2 ports each side-Was 6671021 - A

1

PUMP NLA - W/gear pump - M91-46917 - 4 ports one side - Order 6666335 Pump - Was 6662963 - A

1

PUMP NLA - W/gear pump - M91-46921 - 4 ports one side - Order 6666335REM Pump - Was 6665550 - A

1

PUMP NLA - W/gear pump - M91-46134 - 4 ports one side - Order 6666561REM - Was 6666335 - A

1

6666561REM

PUMP, HYD COMPLETE, W/O GEAR PUMP

2

PUMP NLA - Order 6662918 Pump-W/double gear pump-M91-46910 - for high horse-power option - Was 6660482 - A

2

6662918

PUMP W/double gear pump - M91-46918 - for high horse- power option

2

PUMP NLA - W/double gear pump - M91-46916 - 4 ports one side - for high horse-power option - Was 6662962 - A

2

6669079REM

PUMP, HYD COMPLETE, W/O GEAR PUMP W/double gear pump - M91-46133 - 4 ports one side - for high horse-power option - Was 6669079 - A

2

6662918REM

PUMP, HYD TANDEM, W/O GEAR PUMP NLA - Remanufactured - W/Double Gear Pump - For High Horse Power Option - Was 6662351REM - A

3

669863

RING, SNAP

4

6645080

O-RING See Illustration GEAR PUMP/ MS1689

4

6660339

GASKET See Illustration HIGH HORSEPOWER HYDRAULICS/ MS1688 FOR HIGH HORSEPOWER OPTION PUMP

5

658128

RING, SNAP

6

654299

BEARING

7

6653741

SCREW

8

6634592

PIN

9

6653728

NUT locking

10

6634613

BEARING journal - M91-46910, 46911, 46916, 46917, 46918, 46919 & 46921

10

6634613

BEARING journal - M91-46133 & 46134 - Was 6666889 - A

11

791355

ROLL PIN M91-46910, 46911, 46916,46917, 46918, 46919 & 46921

11

6666890

PIN M91-46133 & 46134

12

6634382

SWASHPLATE

13

6632464

PIN

14

61D8

NUT 5

15

6631428

SLEEVE

16

6673049

PIN Was 6634591 - A

17

6659256

BEARING

18

6631478

ROTATING PIECE M91-46910, 46911, 46918 &46919

18

6670274

BLOCK M91-46916, 46917, 46921, 46133 & 46134 - Was 6634311 - A

19

47K8

PLUG

20

6634553

PIN

21

6631022

BEARING

22

6640612

GASKET

23

6656075

HOUSING M91-46910, 46911, 46918 &46919

23

6656074

HOUSING M91-46916, 46917, 46921,46133 & 46134 - Was 6664370 - A

24

6657316

SHAFT

25

6518510

PLUG

26

6645086

PLUG

27

6660434

SCREW

28

6645072

COVER servo

29

6634425

GASKET

30

6634429

PISTON servo

31

6677160

SCREW Was 6631470 - A

32

6631444

GUIDE

33

6631430

SPRING

34

6631446

STOP

35

6631445

GUIDE

36

6631469

SNAP RING

37

6648256

NUT

38

6645079

O-RING For Spool

39

6631467

BACK-UP RING For Spool

40

6632462

VALVE by-pass

41

VALVE NLA - valve - Order 6666596 & 6665122 plate - Was 6634471 - A

41

6666596

PLATE valve

42

6657317

COVER, FLANGE

43

58K012

O-RING 10

44

6645071

COVER

45

6631458

NUT

46

6634488

KIT

47

79K12

O RING 10

48

6631451

COVER

49

6657319

HANDLE

50

6653734

NUT

51

6653733

SCREW

52

6653735

WASHER

53

6631453

BRACKET

54

6631449

SPRING

55

6666220

SCREW .4375 (11,1 mm) -Was 6656077 - A

56

SPOOL NLA - Order (2) of 6666211 Spool one for each half of tandem pump - Was 6634428 - A

56

6666211

VALVE SPOOL

57

6631468

WASHER For sleeve

58

25K20020

O RING 10 For sleeve

59

6657315

SLEEVE, WEAR -0.05

60

6660418

PLUG

61

6631642

STUD

62

6657320

ORIFICE

63

6653221

CHECK VALVE W/Ref. 47 & 60-5000 PSI(345 Bar)

63

6662847

RELIEF VALVE W/Ref. 47 & 60-4350 PSI(300 Bar)

63

6662846

RELIEF VALVE W/Ref. 47 & 60-3986 PSI(280 Bar)

64

6653738

O-RING

65

6664371

KIT, SEAL See Illustration HYDROSTATIC PUMP/ B20353 W/Ref. 4, 22, 25, 29, 38, 39, 44, 46, 47, 58, 62, 63, 75, 77 & 79 and W/Ref. 4, 17, 19, 22, 29, 38, 39, 43, 46, 47, 58, 62, 63, 75, 76, 77 & 79 on t

66

SLEEVE NLA - repair

67

6631471

WASHER
