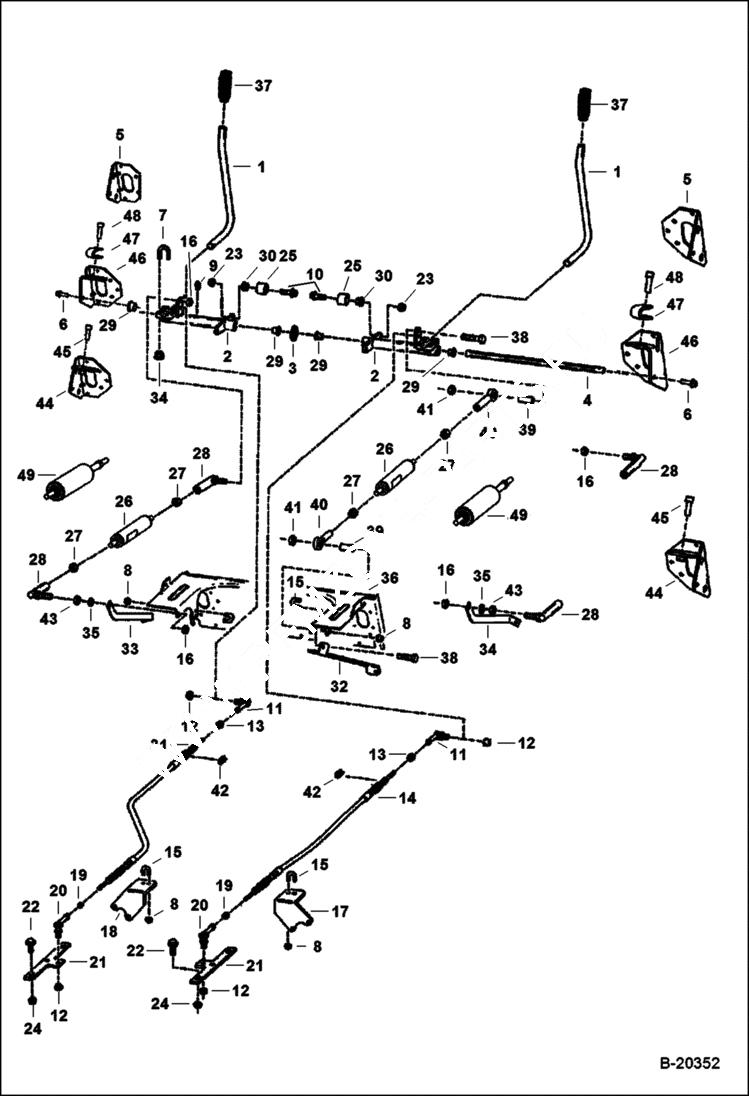

Запчасти Bobcat 800s HAND CONTROLS HYDROSTATIC SYSTEM

1

6702543

LEVER, STEERING

2

6703881

BELLCRANK

3

6599741

WASHER wave

4

ROD NLA - Use W/17C-616 bolt - Order 6716545 Rod & (2) 45C000624B Bolt - Was 6576250 - A

4

6716545

ROD Use W/45C-624 Bolt

5

6577230

BRACKET

6

17C616

BOLT 5

6

45C620

BOLT

7

6732997

U-BOLT Was 6700768 - A

8

85D5

NUT 5

9

6518200

FITTNG, GREASE 10

10

6705966

BOLT Was 93G000628B - B

11

6631036

JOINT R.H. thread - I.D. only

12

86D4

NUT

13

8D4

NUT

14

6710273

CABLE W/Ref. 43-30'' (762mm) long - Was 6655825 - A

15

6592766

U-BOLT

16

62D6

NUT 5 Was 86D000006B - B

17

6703627

MOUNT

18

6703626

MOUNT

19

13D4

NUT L.H. thread

20

6652799

BALL JOINT L.H. thread - I.D. only

21

6704616

LEVER pintle - Was 6703633 - A

22

35C610

BOLT 5

23

57D6

NUT 5

24

95D6

NUT Was 91D000006B - A

25

6704435

WEAR CAM

26

GAS SPRING NLA - Japan Option - Order Ref. 49- Was 6649551 - A

27

8D6

NUT 5

28

6599744

BALL JOINT

29

6703879

BUSHING, PLASTIC W/tab

30

83D6

NUT 5

31

6710274

CABLE W/Ref. 42-32''(812,8MM) LONG - WAS 6658251 - A

32

6708064

BRACE R.H. - Was 6703546 - A

33

6703551

BRACE L.H. - Was 6703546 - A

34

BRACE NLA - Order Ref. 32 & (2) of Ref. 38-41

35

25E18

WASHER

36

6579459

PANEL See Illustration PANELS/ TS1009

37

6513963

GRIP not Use W/Cobra style or multi- switch handles

37

6702621

GRIP See Illustration CONTROLS ELECTRICAL CIRCUITRY/ MS1708

38

17C636

BOLT

39

6708314 BUSHING

40

6512954 ROD END

41

91D-6 NUT

42

6666534 SEAL

43

62D6

NUT 5

44

BRACKET NLA - R.H. - Order Ref. 46-48 - Was 6733022 - A

44

BRACKET NLA - L.H. Order Ref. 46-48 - Was 6733024 - A

45

93G824

BOLT Was 73G824 - A

46

7128600

BRACKET RH

46

7128601

BRACKET LH

47

7121779

PAD

48

73G828

BOLT

49

7188108

GAS SPRING
