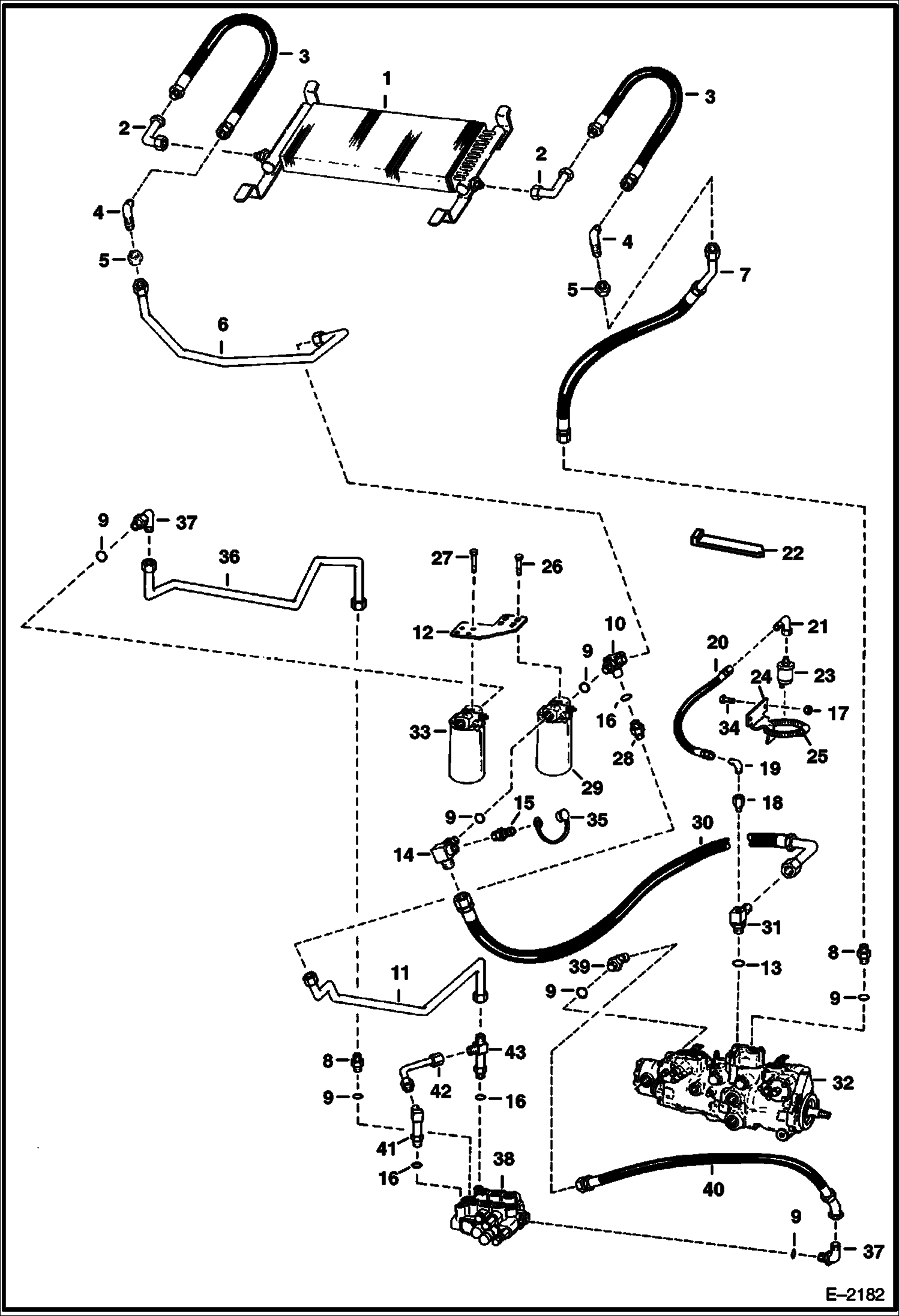

Запчасти Bobcat 800s HYDROSTATIC CIRCUITRY (S/Ns 5128 11001, 5102 50692, 5084 15216, 5101 26792 & Above) HYDROSTATIC SYSTEM

1

6662948

COOLER oil

2

6703012

TUBE

3

6654205

HOSE

4

88F8

FITTING

5

86F8

NUT 5

6

6706049

TUBE

7

6706235

TUBE

8

15K8

FITTING W/Ref. 9 - Was 15K000007B - B,D

9

79K12

O RING 10

10

6706365

ADAPTER W/Ref. 9 - W/ BOSS

10

6706364

ADAPTER W/Ref. 9 - W/O BOSS

11

6706180

TUBE

12

6706141

MOUNT

13

79K10

O RING 10

14

6714783

ADAPTER W/Ref. 9 - Was 6706238 - A

15

6630168

COUPLER W/Ref. 16

16

79K6

O RING 10

17

85D4

NUT 5

18

6563922

SNUBBER W/Filter

18

6563920

FILTER

19

83F3

ELBOW 5

20

6530901

HOSE

21

85F3

ELBOW

22

6610510

TIE

23

SENDER See Illustration ENGINE ELECTRICAL CIRCUITRY/ E2106 HYD. CHG. PRESS.

24

6704319

MOUNT

25

42H24

CLAMP-5

26

35C610

BOLT 5 Was 17C000608B - B

27

17C614

BOLT

28

15K5

FITTING W/Ref. 16

29

6661247

FILTER See Illustration HYDROSTATIC OIL FILTER/ B20148

29

6661247

FILTER

29

6661247

FILTER

29

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

29

6661334

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ B20148A W/INTERNAL CHECK

29

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

30

6707464

HOSE Was 6700233 - A

31

6579651

ELBOW W/Ref. 13

32

PUMP See Illustration HYDROSTATIC PUMP/ E2011

33

6661282

FILTER ASSY. See Illustration HYDROSTATIC OIL FILTER/ B20148 W/INTERNAL CHECK

33

6661282

FILTER ASSY.

33

6661282

FILTER ASSY.

33

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

33

6661335

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ B20148A W/INTERNAL CHECK

33

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

34

17C416

BOLT

35

6630367

CAP dust

36

6705951

TUBE

37

17K8

FITTING W/Ref. 9

38

See Illustration HIGH HORSEPOWER HYDRAULICS/ MS1701 See Illustration HYDRAULIC CONTROL VALVE/ TS1008 W/Ref. 41-43

39

18K8

FTG W/Ref. 9

40

6700239

HOSE

41

ADAPTER See Illustration HIGH HORSEPOWER HYDRAULICS/ MS1701 See Illustration HYDRAULIC CONTROL VALVE/ TS1155

42

TUBE See Illustration HIGH HORSEPOWER HYDRAULICS/ MS1701 See Illustration HYDRAULIC CONTROL VALVE/ TS1155

43

TEE See Illustration HIGH HORSEPOWER HYDRAULICS/ MS1701 See Illustration HYDRAULIC CONTROL VALVE/ TS1155
