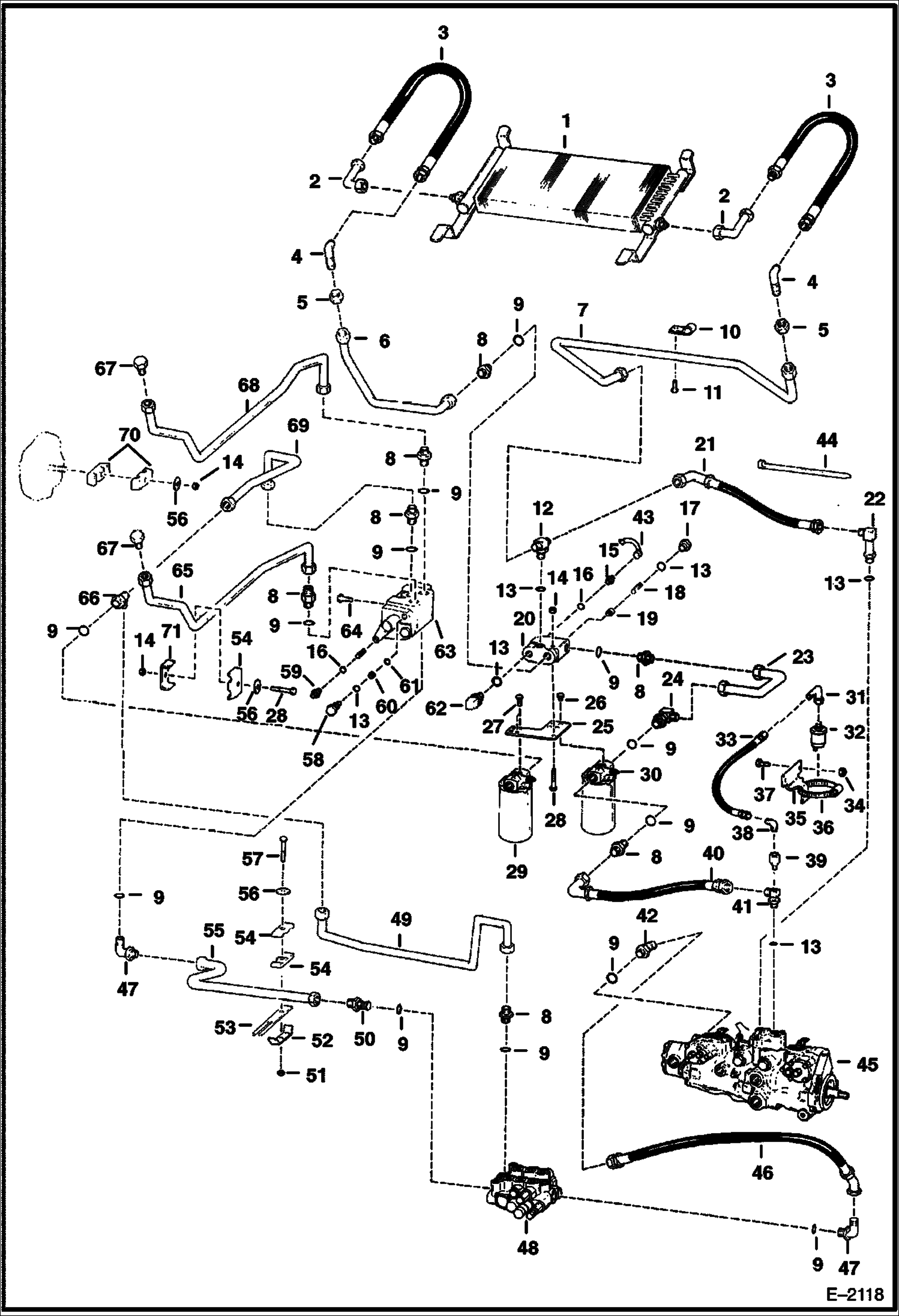

Запчасти Bobcat 800s HYDROSTATIC CIRCUITRY (S/N 5101 26791 & Below) HYDROSTATIC SYSTEM

1

6662948

COOLER oil - Was 6659359 - A

2

6703012

TUBE

3

6654205

HOSE

4

88F8

FITTING

5

86F8

NUT 5

6

6579665

TUBE

7

6579664

TUBE

8

15K8

FITTING W/Ref. 9

9

79K12

O RING 10

10

6H18

CLIP

11

84G3712

BOLT 5

12

6700209

TEE

13

79K10

O RING 10

14

85D6

NUT, 5

15

6630168

COUPLER W/Ref. 16

16

79K6

O RING 10

17

6561811

PLUG filter by-pass - W/Ref. 13

18

6567020

SPRING

19

6565620

POPPET poppet

20

6579689

PORT BLOCK

21

6705981

HOSE Was 6700232 - A

22

6519195

ELBOW W/Ref. 13

23

6579663

TUBE

24

6704696

ELBOW W/Ref. 9

25

6579693

MOUNT

26

35C610

BOLT 5 Was 17C000608B - B

27

17C614

BOLT

28

17C640

BOLT 5

29

6661335

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ B20148A W/INTERNAL CHECK VALVE

29

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

30

6661334

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ B20148A

30

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

31

85F3

ELBOW

32

SWITCH See Illustration ENGINE ELECTRICAL CIRCUITRY/ E2120 HYD. CHG. PRESS.

33

6530901

HOSE

34

85D4

NUT 5

35

6704319

MOUNT

36

42H16

CLAMP, HOSE 5 Was 42H000024B - B

37

17C416

BOLT

38

83F3

ELBOW 5

39

6563922

SNUBBER W/Filter

39

6563920

FILTER

40

6707464

HOSE Was 6700233 - A

41

6579651

ELBOW W/Ref. 13

42

18K8

FTG W/Ref. 9

43

6630367

CAP dust

44

6610510

TIE Was 30H000031B - B

45

PUMP See Illustration HYDROSTATIC PUMP/ E2011

46

6700239

HOSE

47

17K8

FITTING W/Ref. 9

48

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ MS1701 See Illustration HYDRAULIC CONTROL VALVE/ TS1008

49

6579877

TUBE

50

6534917

ADAPTER W/Ref. 9

51

85D5

NUT 5

52

6502203

CLAMP

53

6702548

PAD

54

6701892

CLAMP

55

6579879

TUBE

56

872229

WASHER

57

17C544

BOLT

58

6592720

PLUG W/Ref. 13, 36 & 37

59

36K5

CAP W/Ref. 16

60

80K14

BACK-UP WASHER Was 73K000014B - B

61

58K014

O-RING 10

62

24K7

PLUG W/Ref. 13

63

VALVE See Illustration FRONT AUXILIARY VALVE/ C3266 FRONT AUXILIARY

64

17C720

BOLT

65

6705177

TUBE Was 6579868 - A

66

21KB1212

FITTING, HYD TEE W/Ref. 9 - Was 21K000008B - A

67

6512538

PLUG Use in place of front auxiliary

68

6705178

TUBE Was 6579867 - A

69

6579878

TUBE

70

6592506

CLAMP

71

6568476

CLAMP
