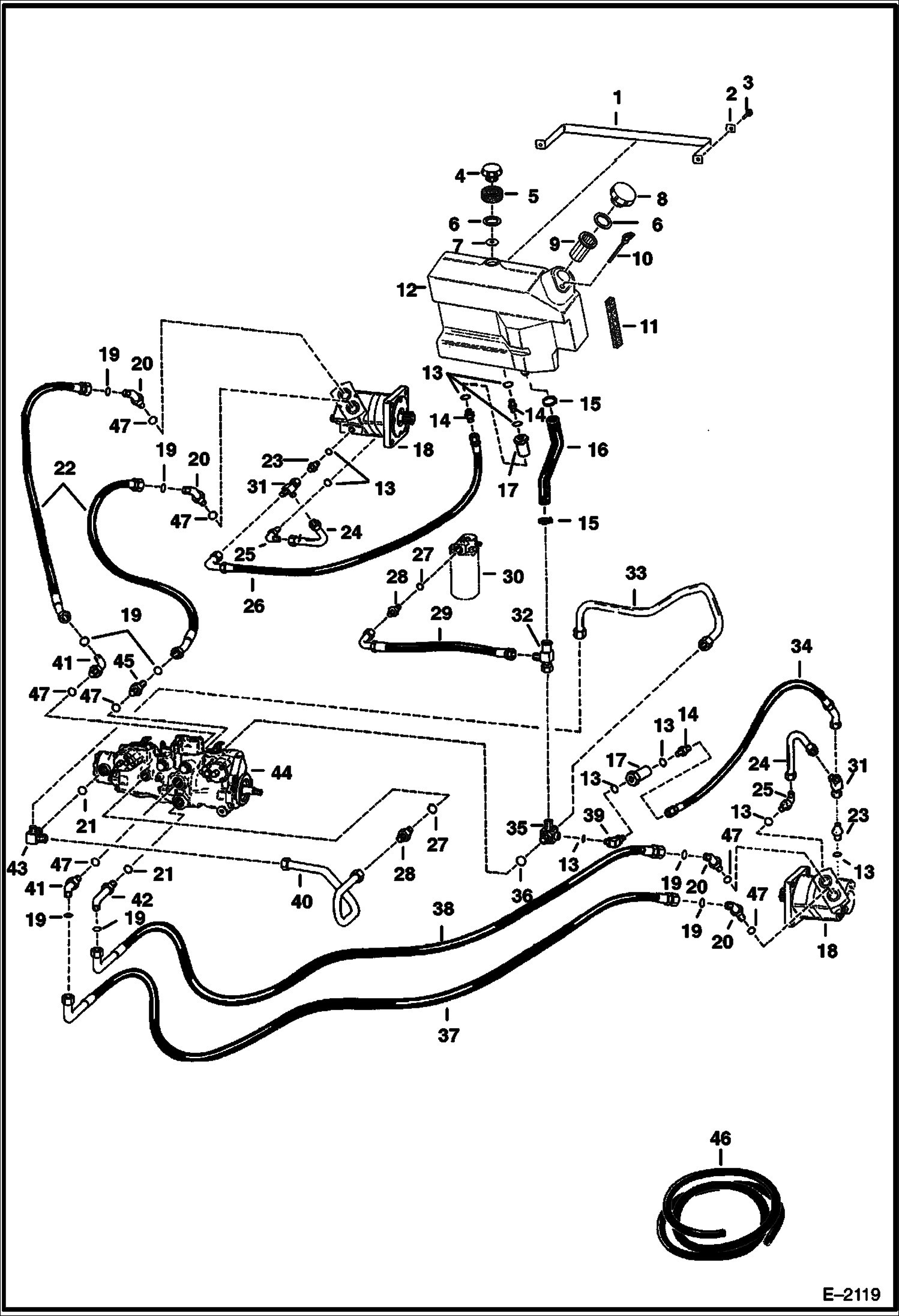

Запчасти Bobcat 800s HYDROSTATIC CIRCUITRY (S/Ns 5102 50691, 5084 15215, 5101 26791 & Below) (S/Ns 5103 75001, 5097 15001 & Above) HYDROSTATIC SYSTEM

1

6579939

BAND

2

6559447

WASHER square

3

84G3712

BOLT 5

4

6577785

CAP breather - Also Order Ref. 5 & 6

5

6703427

FOAM FILTER

6

6700631

GASKET

7

6701552

BAFFLE

8

6728149

CAP , HYD NON VENTED hyd. oil - Also Order Ref. 6 - Was 6532508 - A

9

7120881

SCREEN, FILLER Was 6569219 - A

10

6577459

DIPSTICK

10

25K20010

O RING 10

11

FOAM NLA - 16'' (406,4 mm) long - Also Order Ref. 46

12

6704551

TANK

13

79K6

O RING 10

14

15K5

FITTING W/Ref. 13

15

44H20

CLAMP Was 6666864 - A

16

6579685

HOSE

17

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527 - 90 micron

18

MOTOR See Illustration HYDROSTATIC MOTOR/ B20147

19

58K21

O RING 10

20

6665206

ELBOW W/Ref. 47 - Was 69E000016B - B

21

79K16

O RING 10

22

6700240

HOSE

23

RELIEF VALVE NLA - inline (225 PSI) - W/Ref. 13 - fWas 6658676 - A

24

6703815

TUBE

24

6703815

TUBE

24

6703815

TUBE

24

6703815

TUBE

24

6703815

TUBE

24

6705733

TUBE

24

6705733

TUBE

24

6705733

TUBE

24

6705733

TUBE

24

6705733

TUBE

25

17K5

ELBOW W/Ref. 13

26

6703013

HOSE Was 6706754 - B,D

27

79K12

O RING 10

28

15K8

FITTING W/Ref. 27

29

6707464

HOSE Was 6700233 - A

30

6661282

FILTER ASSY. See Illustration HYDROSTATIC OIL FILTER/ B20148 W/INTERNAL CHECK

30

6661282

FILTER ASSY.

30

6661282

FILTER ASSY.

30

6661282

FILTER ASSY.

30

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

30

6661335

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ B20148A W/INTERNAL CHECK

30

6661335

FILTER ASSY

30

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

31

13K5

TEE

32

6702001

TEE

33

6702513

TUBE

34

6578327

HOSE Was 6577891 - B

35

6702095

TEE W/Ref. 36

36

79K20

O RING 10

37

6704547

HOSE

38

6704548

HOSE

39

6704645

ELBOW

40

6702508

TUBE

41

42E1616

ELBOW W/Ref. 19 & 47 - Was 55E000016B - A

42

77E1616

ELBOW Was 77E000016B - A

43

6702516

TEE W/Ref. 21

44

PUMP See Illustration HYDROSTATIC PUMP/ E2011

45

41E1616

ADAPTER W/Ref. 19 & 47 - WAS 52E000016B - A

46

6511855

SEAL self adhesive - bulk - sold per foot

47

75K16

O RING 10
