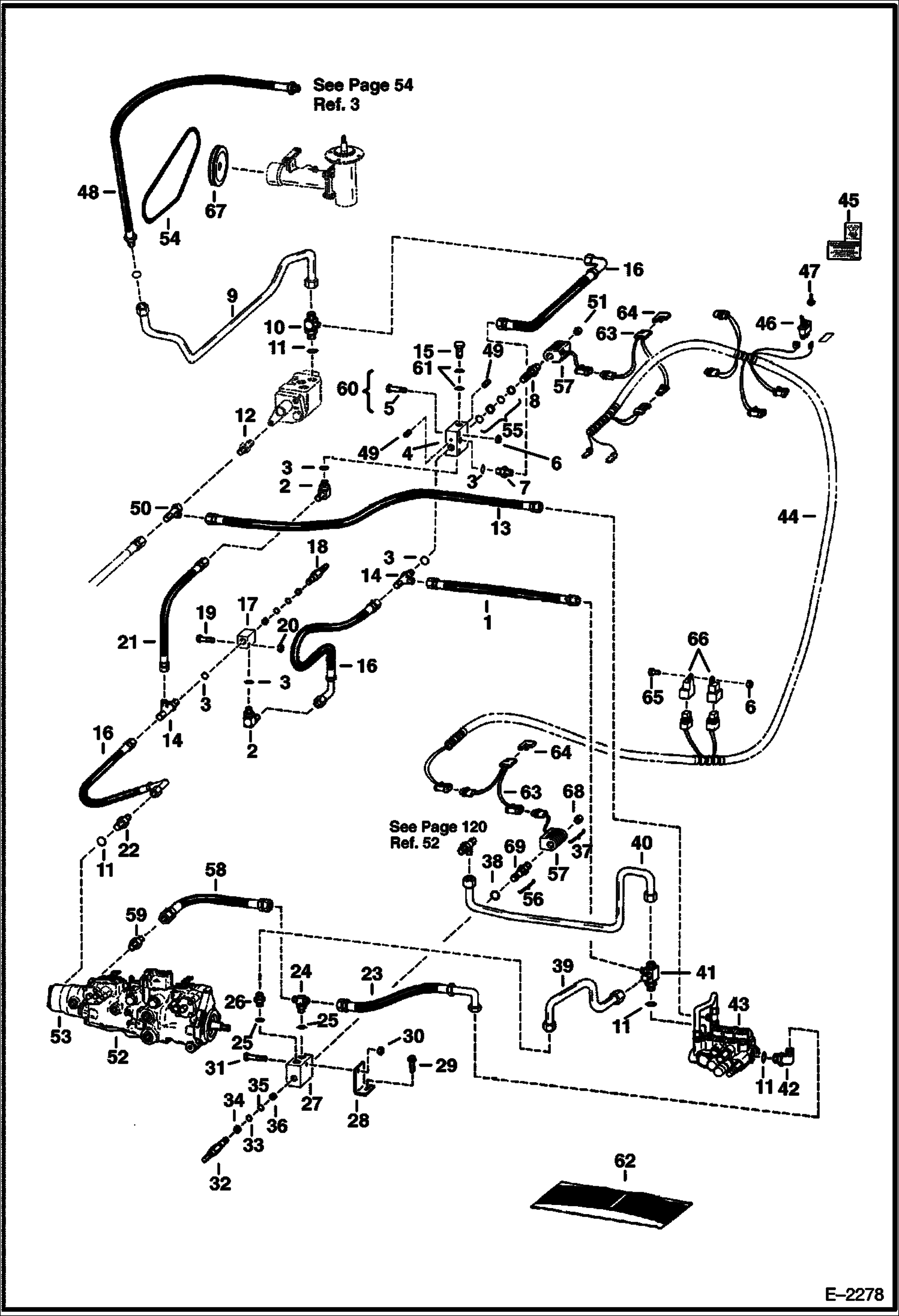

Запчасти Bobcat 800s HIGH HORSEPOWER HYDRAULICS (S/N 5128 11001 & Above - W/Apitech Valve) (S/Ns 5103 75001, 5097 15001 & Above) HIGH FLOW HYDRAULICS

1

6703153

HOSE

2

17K5

ELBOW W/Ref. 3

3

79K6

O RING 10

4

6660782

BLOCK manifold - Also Order (2) of Ref. 49

5

17C436

BOLT

6

85D4

NUT 5

7

15K5

FITTING W/Ref. 3

8

6667713

SPOOL valve - Was 6660784 - A

9

6705480

TUBE Was 6702510

10

6702515

TEE W/Ref. 11

11

79K12

O RING 10

12

13K5

TEE

12

13K5

TEE

13

6617708

HOSE

14

21K5

TEE W/Ref. 3

15

6667714

CHECK VALVE Was 6660783 - A

16

6703154

HOSE

17

6658831

BLOCK manifold

18

VALVE NLA - relief - pressure preset at factory - Was 6658838 - A

18

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

19

17C528

BOLT

20

85D5

NUT 5

21

6703152

HOSE

22

731795

CONNECTR W/Ref. 11

23

6707480

HOSE Was 6535276 - A

24

6700209

TEE W/Ref. 24

25

79K10

O RING 10

26

730963

CONNECTR

27

6703149

BLOCK manifold

28

6701860

BRACKET

29

84G3716

SCREW 5

30

85D6

NUT, 5

31

17C640

BOLT 5

32

RELIEF VALVE NLA - relief - W/Ref. 33-36 - pressure preset at factory - Was 6649321 - A

32

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

33

O-RING NSS

34

WASHER NSS - back-up

35

O-RING NSS

36

RING NSS - glide

37

6658883

SOLENOID W/Ref. 38, 57, 68 & 69

38

79K16

O RING 10

39

6702506

TUBE

40

6702509

TUBE

41

6702517

TEE W/Ref. 11

42

17K8

FITTING W/Ref. 11

43

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ MS1701 CONTROL

44

6703166

HARNESS

45

6706508

DECAL Was 6703167 - A

46

6658858

SWITCH

47

6515510

COVER switch

48

6708253

HOSE

49

16F2

PLUG

50

21K5

TEE

50

21K5

TEE

51

6662790

NUT

52

PUMP See Illustration HYDROSTATIC PUMP/ E2011 TANDEM W/DOUBLE GEAR PUMP

53

PUMP See Illustration HIGH HORSEPOWER HYDRAULICS/ MS1688 DOUBLE GEAR PUMP

54

6703924

BELT

55

6667715

SEAL KIT Was 6657408 - A

56

6660358

SEAL KIT

57

6660785

COIL

58

6707479

HOSE Was 6703906

59

15K8

FITTING

60

VALVE ASSY. NLA - Ref. 4, 8, 55, 57, 61, 62 & 68 - Order Components - Was 6660568 - A

61

6667716

SEAL KIT for Ref. 15 - Was 6660786 - A

62

6632279

KIT, SEAL Ref. 33-36

63

6703898

HARNESS

64

6703899

DIODE

65

17C412

BOLT 5

66

6651975

SWITCH relay

67

6703483

PULLEY, FAN DRIVE IDLER cooling fan drive assy

68

6662829

NUT

69

6662828

SPOOL
