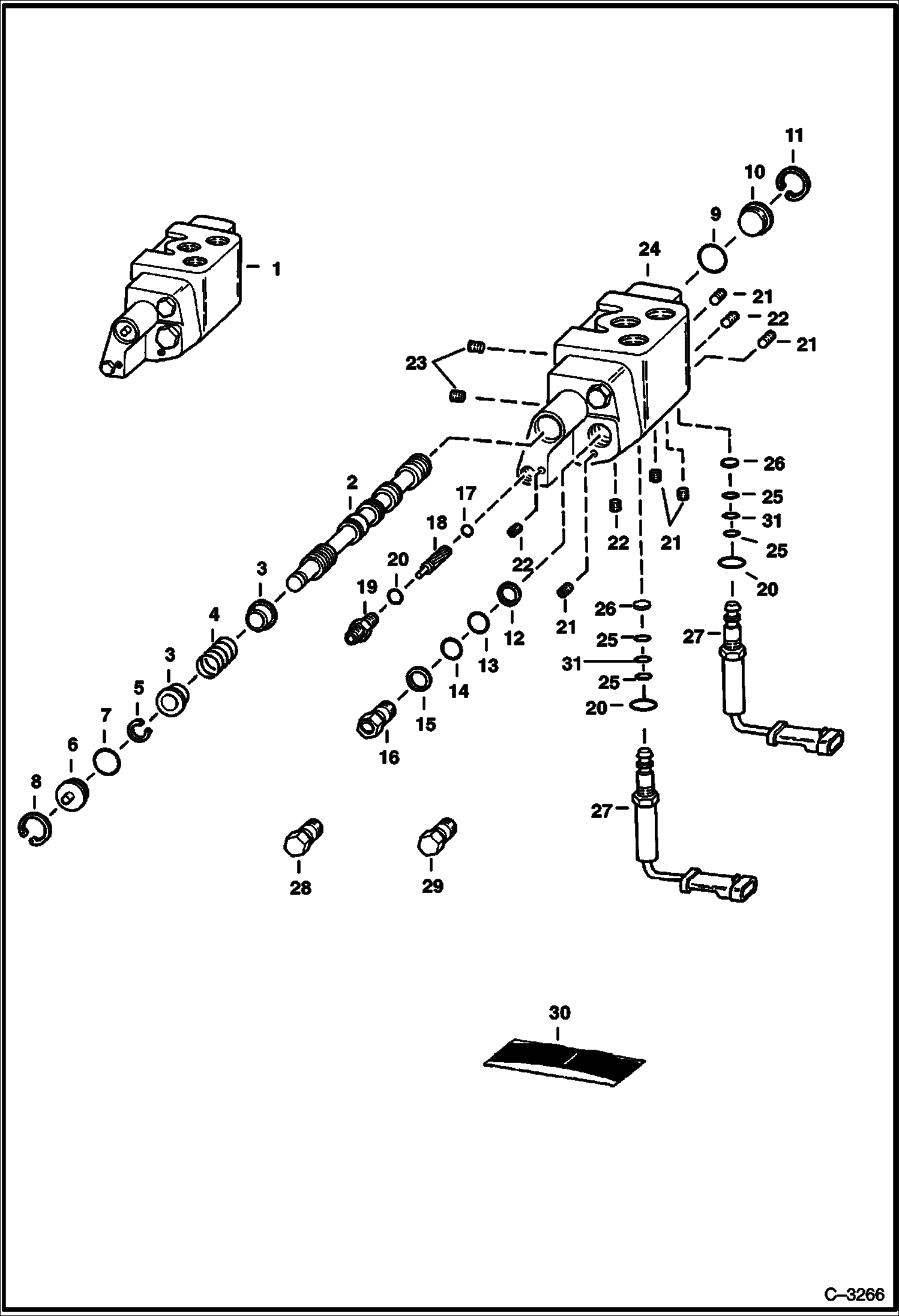

Запчасти Bobcat 800s FRONT AUXILIARY VALVE (Apitech Valve) (S/Ns 5102 50691, 5084 15215, 5101 26791 & Below) (S/Ns 5103 75001, 5097 15001 & Above) (2128 11001 & Above - HHH only) HYDRAULIC SYSTEM

1

VALVE NLA - front auxiliary - Ref. 2-24 -

1

Was 6661343 - A

1

1

1

2

SPOOL NSS

3

GUIDE NLA - Was 6659585 - A

4

6659586

SPRING

5

6659587

SCREW

6

6659588

PLUG

7

O-RING NSS

8

6659589

SNAP RING

9

O-RING NSS

10

6659590

PLUG

11

6659591

SNAP RING

12

BACK-UP RING NSS

13

O-RING NSS

14

O-RING NSS

15

BACK-UP RING NSS

16

PLUG NSS - Order 6661343 Valve - Was 6659592 - A

17

O-RING NSS

18

FILTER NLA - W/Ref. 17 - Was 6659593 - A

19

15K5

FITTING W/Ref. 20

20

79K6

O RING 10

21

6659596

PLUG

22

6659597

PLUG teflon - 1/8''

23

PLUG NSS

24

HOUSING NSS

25

25K20010

O RING 10 smaller O.D. than threads of Ref. 27 - Was NSS - D

26

ORIFICE NSS - Order Ref. 27

27

6673790

VALVE PULSAR W/Internal Orifice - When replacing Ref. 27 make sure that Ref. 26 is removed - W/Ref. 20, 25, 26 & 31 - Was 6649018 - A

28

6658127

RELIEF VALVE check (For Grapples)

29

6630187

VALVE relief (For Grapples)

30

6659600

SEAL KIT Ref. 7, 9, 12-15, 17 & 25

31

80K11

BK UP RG
