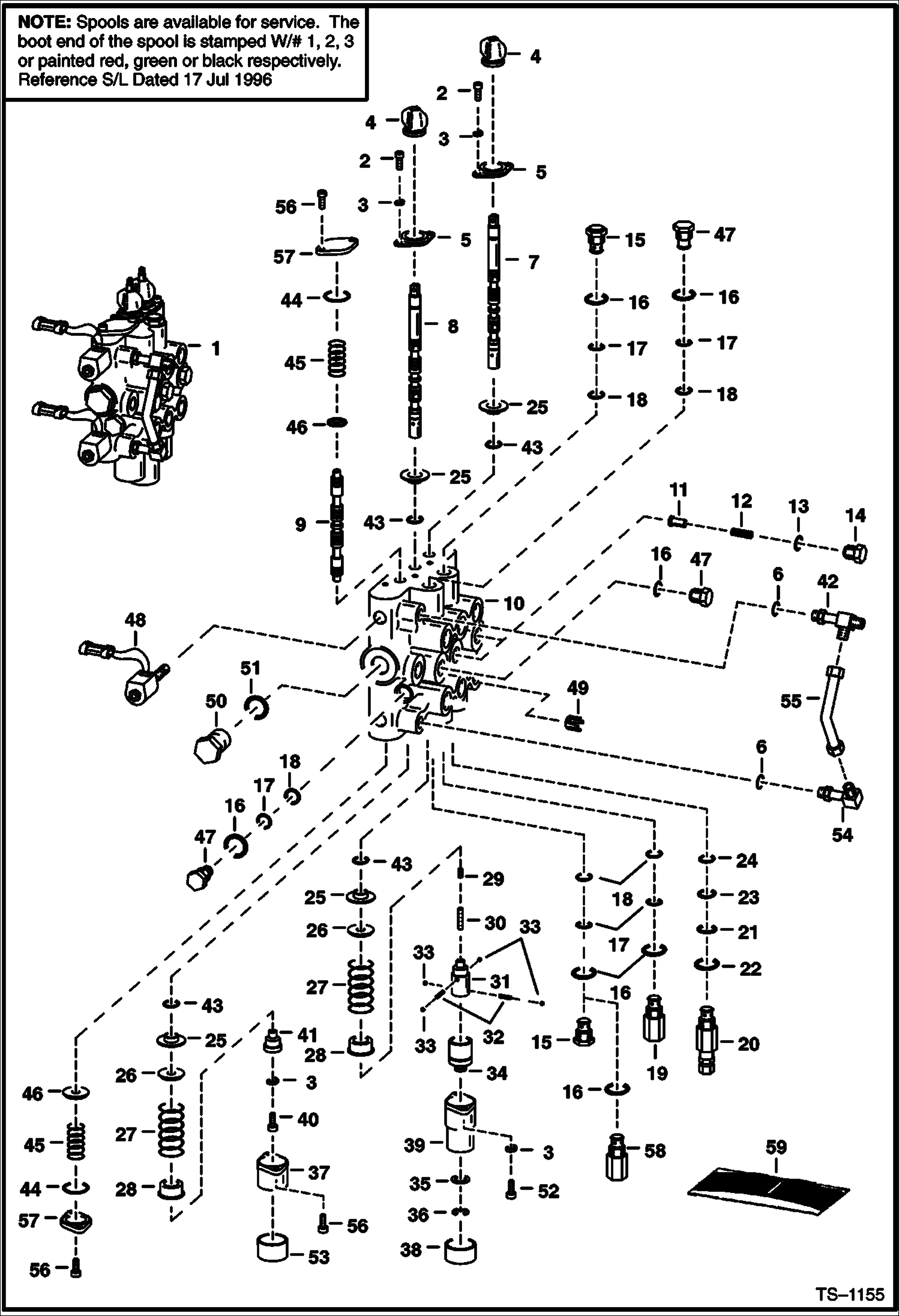

Запчасти Bobcat 800s HYDRAULIC CONTROL VALVE (S/Ns 5128 11001, 5102 50692, 5084 15216, 5101 26792 & Above) HYDRAULIC SYSTEM

1

VALVE See BTI295 NLA - Ref. 2 - 42-W/long spools - Was 6588236 - A

2

6588165

SCREW

3

22E4

WASHER

4

6587763

BOOT rubber

5

6592123

RETAINER

6

79K6

O RING 10

7

6666576

SPOOL lift - #1 or red - SEE NOTE

7

6666577

SPOOL lift - #2 or green - SEE NOTE

7

6666578

SPOOL lift - (3) black - SEE NOTE

8

6666579

SPOOL tilt - # 1 or Red - SEE NOTE

8

6666580

SPOOL tilt - # 2 or Green - SEE NOTE

8

6666581

SPOOL tilt - # 3 or Black - SEE NOTE

9

6588074

SPOOL auxiliary - SEE NOTE - Also See S/L dated 17 Sept 92

10

BODY NSS

11

6592115

SEAT load check

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check

15

6667549

VALVE anti-cavity check - W/Ref. 16-18 - Was 6661345 - A

16

79K10

O RING 10

17

80K14

BACK-UP WASHER Was 73K000014B - B

18

58K014

O-RING 10 back-up washer required

18

6677106

O-RING back up washer not required

19

6599161

RELIEF VALVE port relief - W/Ref. 16-18

20

VALVE NLA - main relief - W/Ref. 21-24 - pressure preset at factory - Was 6659328 - A

20

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

21

58K017

O-RING 10 Was NSS - D

22

6665569

WASHER back-up - Was NSS - D

23

25K20016

O RING 10 Was NSS - D

24

6665570

RING glide - Was NSS - D

25

6538466

BUSHING

26

7211397

WASHER, SPRING Was 6587523 - A

27

6587580

SPRING

28

6592100

COLLAR

29

PLUG NLA - Plastic - Order 6596807 Plug & 54K020002B O-Ring - Was 6592752 - A

29

6596807

PLUG plastic - 0.46'' long

29

54K20002

O'RING 10

30

6586918

SCREW

31

6587575

ADAPTER

32

6592107

SPRING

33

6592105

BALL

34

6531270

SLEEVE, DETENT

35

6592098

WASHER

36

799119

RING

37

7101345

BONNET, DETENT HYD VALVE Was 6587633 - A

38

6660644

CAP Was 6631704 - A

39

BONNET NLA - .25'' flange - Order 6589226 Bonnet, 6660644 Cap & (2) of 6588982 Screws -Was 6592094 - A

39

6589226

COVER, END 0.63'' flange

40

6588166

SCREW

41

6592109

ADAPTER

42

6587889

TEE W/Ref. 6

43

6665089

SEAL See BTI374 lip seal - Was 6659554 - A

44

58K124

O RING 10

45

6588197

SPRING

46

6537096

WASHER

47

6592720

PLUG W/Ref. 16-18

48

6653395

VALVE, SOLENOID

48

6665758

VALVE W/O-Ring

48

79K7

O RING 10

48

6717708

COIL, 14 VOLT 14 volt - w/ nut - Was 6665759 - A

48

6679961

NUT

48

6586459

SEAL KIT Was 6534559 - A

49

6532633

RESTRICTOR 0.153

50

24K8

PLUG W/Ref. 51

51

79K12

O RING 10

52

6588163

SCREW 7/8'' long

52

6588982

SCREW 1'' long

53

6662848

CAP

54

6558510

ELBOW W/Ref. 6

55

6577690

TUBE

56

69G414

BOLT .75'' long - Use W/NLA 6538574 End Cap - Was 6588164 - A

56

6588982

SCREW 1'' long-Use W/6588981 End Cap

57

END CAP NLA - .375'' thick - Order 6588981 End Cap & (2) of 6588982 Screws - Was 6538574 - A

57

6588981

END CAP .625'' thick

58

6664373

VALVE optional port relief & anti-cav. - W/Ref. 16 - 2500 PSI - use in tilt cylinder base end port

59

6816250

KIT, SEAL one spool - Ref. 4, 52 & 57 - Was 6803605 - A

59

6589861

SEAL KIT complete - Ref. 4,13, 16-18, 21-24, 44, 52 & 57 - Was 6586466 - A

59

6632279

KIT, SEAL Ref. 21-24

59

6809425

SEAL KIT Ref. 13 & 16-18 - Was 6586461 - A
