Запчасти Bobcat 800s AUXILIARY HYDRAULICS (S/Ns 5102 50691, 5084 15215, 5101 26791 & Below) (S/Ns 5103 75001, 5097 15001 & 5128 11001 & Above - W/Apitech Valve) HYDRAULIC SYSTEM

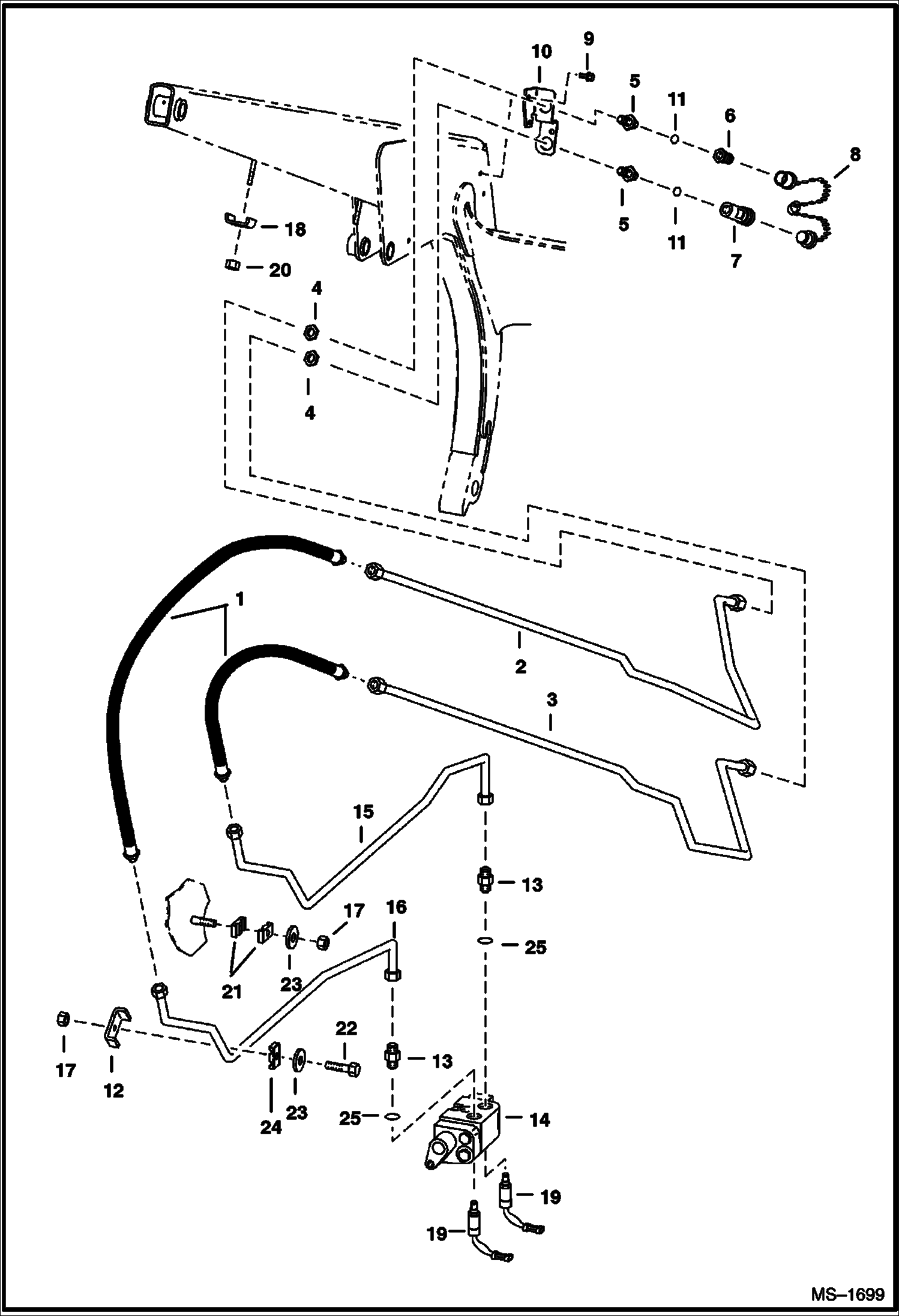

Схема запчастей Bobcat 800s - AUXILIARY HYDRAULICS (S/Ns 5102 50691, 5084 15215, 5101 26791 & Below) (S/Ns 5103 75001, 5097 15001 & 5128 11001 & Above - W/Apitech Valve) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6708253

HOSE Was 6530780 - A

2

6704140

TUBE See Illustration HIGH HORSEPOWER HYDRAULICS/ E2094 - Ref. 22 for tube on high horsepower option

3

6704108

TUBE

4

86F8

NUT 5

5

6579875

CONNECTOR

6

6598757

COUPLER, POPPET MALE straight

7

6598758

COUPLER, POPPET FEMALE straight

7

48K16

O RING 10

7

6665430

BACKUP RING

8

6513709

CAP PLUG W/Plug Assy. - Rubber

8

6515167

PLUG steel

8

6515168

CAP steel

9

84G3112

BOLT 5 5/16'' dia.

9

84G3716

SCREW 5 3/8'' dia. - Was 84G-3712 - B

10

BRACKET NLA - Order 6706751 Bracket & (2) of 84G003712B Bolts-Was 6704113 - A

10

6706751

BRACKET See Illustration HIGH HORSEPOWER HYDRAULICS/ E2094 - Ref. 18 for bracket on high horsepower hydraulics

11

79K10

O RING 10

12

6568476

CLAMP

13

15K8

FITTING W/Ref. 11

14

VALVE See Illustration FRONT AUXILIARY VALVE/ C3266 - front auxiliary

15

6705178

TUBE See Illustration HIGH HORSEPOWER HYDRAULICS/ E2278 - Ref. 9 for tube on high horsepower hydraulics - Was 6579867 - A

16

6705177

TUBE Was 6579868 - A

17

85D6

NUT, 5

18

6502203

CLAMP Was 6703216 - B

19

6649018

SOLENOID See Illustration FRONT AUXILIARY VALVE/ C3266

20

59D6

NUT

21

6592506

CLAMP

22

17C640

BOLT 5

23

872229

WASHER

24

6701892

CLAMP

25

79K12

O RING 10

Выбрано товаров: 31
