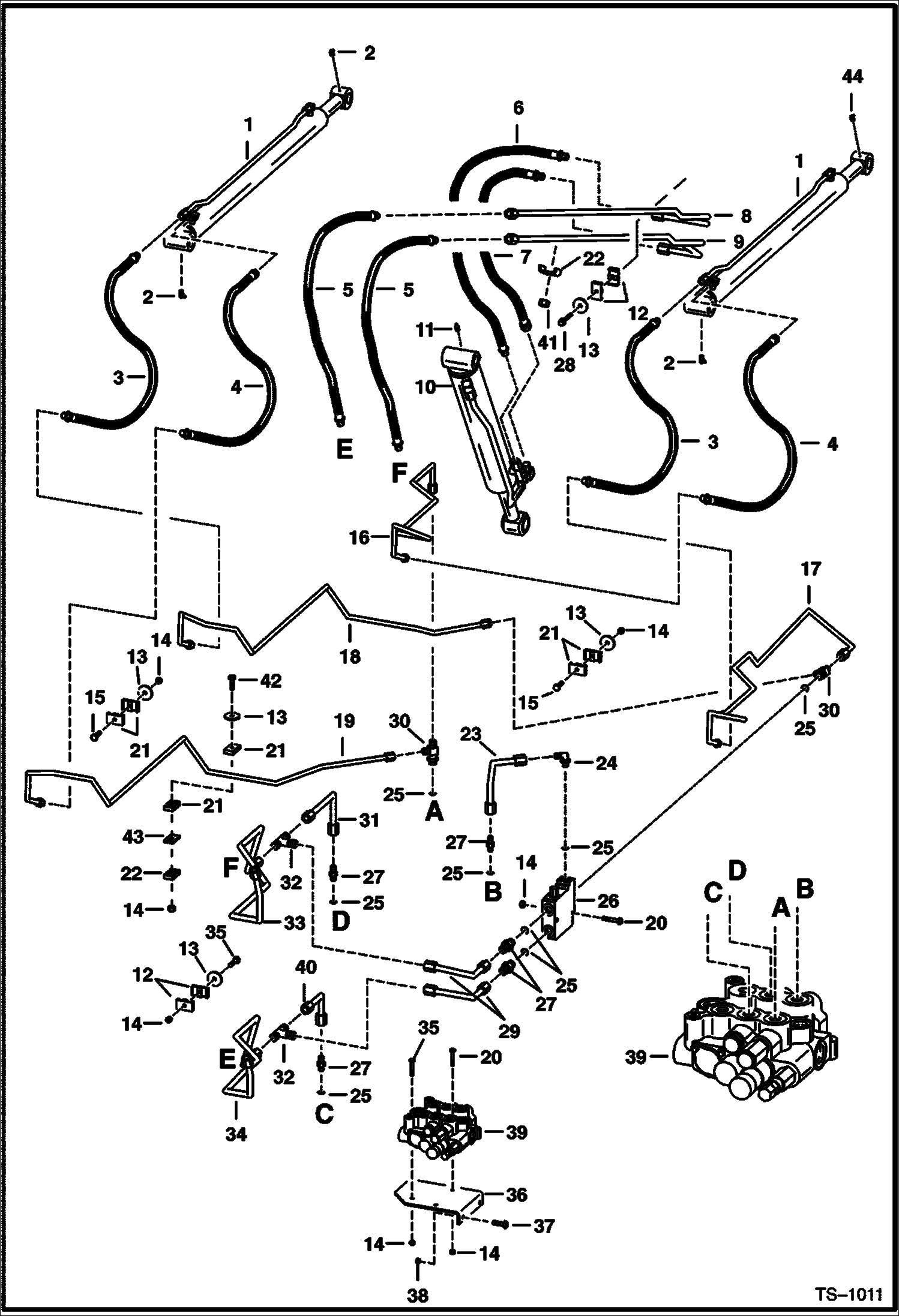

Запчасти Bobcat 800s HYDRAULIC CIRCUITRY (W/Bucket Positioning Valve) HYDRAULIC SYSTEM

1

CYLINDER See Illustration LIFT CYLINDER/ MS1687 See Illustration LIFT CYLINDER/ TS1013 - lift

2

11H15

GREASE FITTING

3

6700235

HOSE

4

6700234

HOSE

5

6700242

HOSE

6

6578774

HOSE

7

6578773

HOSE

8

6704130

TUBE

9

6703588

TUBE

10

CYLINDER See Illustration TILT CYLINDER/ TS1098 See Illustration TILT CYLINDER/ TS1012 - tilt

11

10H25

FITTING, GREASE 5

12

6701893

CLAMP

13

872229

WASHER

14

85D5

NUT 5

15

10C528

BOLT

16

6579668

TUBE

17

6579667

TUBE

18

6579670

TUBE

18

6579670

TUBE

18

6579670

TUBE

18

6579670

TUBE

18

6579670

TUBE

18

6705953

TUBE

18

6705953

TUBE

18

6705953

TUBE

18

6705953

TUBE

18

6705953

TUBE

18

6705953

TUBE

19

6579671

TUBE

19

6579671

TUBE

19

6579671

TUBE

19

6579671

TUBE

19

6579671

TUBE

19

6705952

TUBE

19

6705952

TUBE

19

6705952

TUBE

19

6705952

TUBE

19

6705952

TUBE

19

6705952

TUBE

20

17C540

BOLT

21

6701892

CLAMP

22

6502203

CLAMP

23

6579669

TUBE

24

17K7

ELBOW W/Ref. 25

25

79K10

O RING 10

26

VALVE See Illustration BUCKET POSITIONING VALVE/ C3062 - NLA- Order 6673959 valve-if you don't have an on/off switch also order 6647784 plug, 79K8 o-ring, 6647785 spring, & 6647783 load check- Was 666

27

15K7

FITTING W/Ref. 25

28

84G3724

BOLT Was 84G003728B

29

6579672

TUBE

30

6578183

TEE W/Ref. 25

31

6579674

TUBE

32

10K7

TEE

33

6579676

TUBE

34

6579677

TUBE

35

17C528

BOLT

36

6579692

MOUNT valve

37

17C616

BOLT 5

38

85D6

NUT, 5

39

VALVE See Illustration HYDRAULIC CONTROL VALVE/ TS1008 See Illustration HIGH HORSEPOWER HYDRAULICS/ MS1701 See Illustration HYDRAULIC CONTROL VALVE/ TS1155

40

6579675

TUBE

41

59D6

NUT

42

17C544

BOLT

43

6702548

PAD clamp

43

6702548

PAD

43

6702548

PAD

43

6702548

PAD

43

6702548

PAD

43

6702548

PAD

44

12H15

FITTING, GREASE 5 for RH lift cylinder rod end
