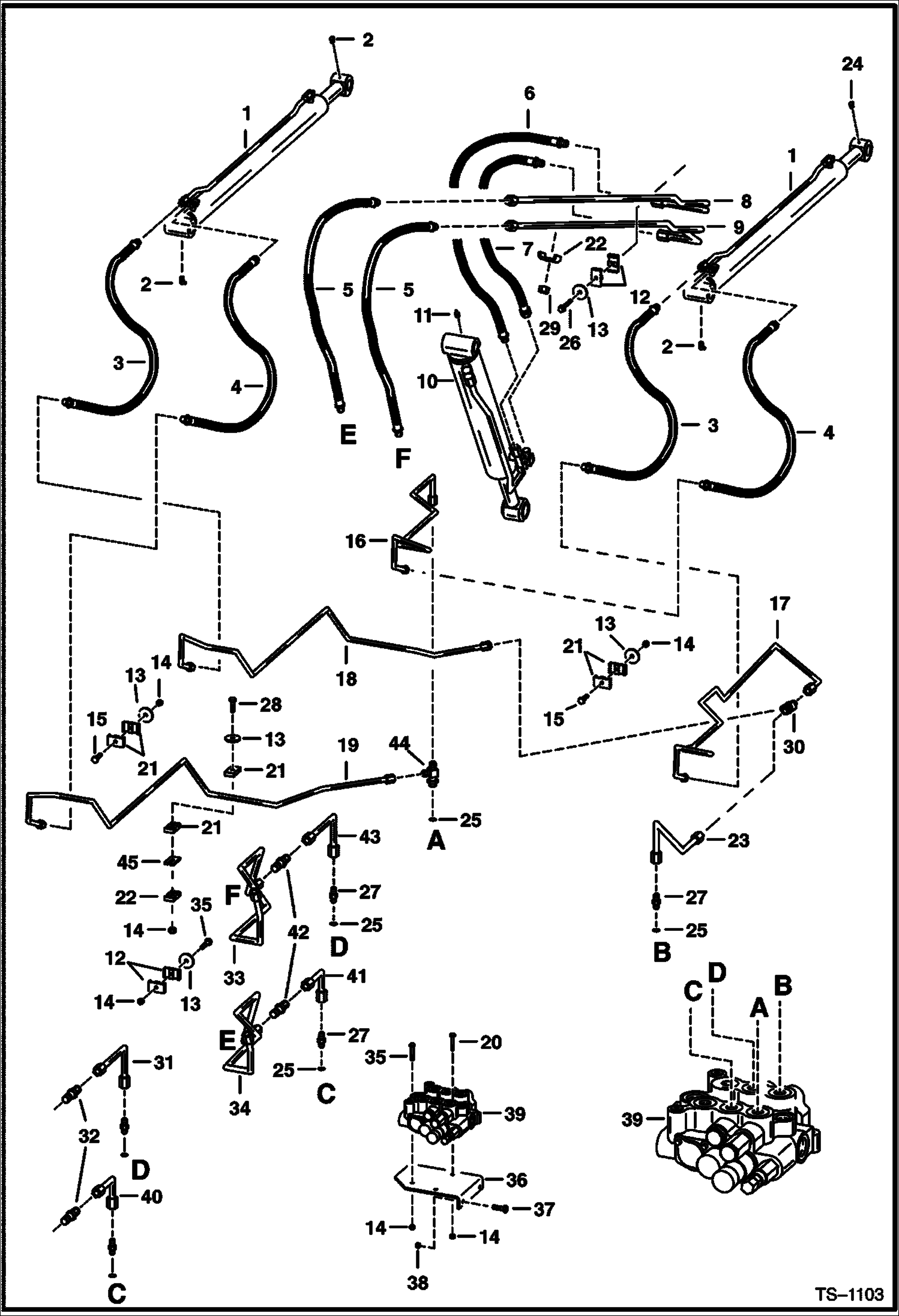

Запчасти Bobcat 800s HYDRAULIC CIRCUITRY (W/O Bucket Positioning Valve) HYDRAULIC SYSTEM

1

CYLINDER See Illustration LIFT CYLINDER/ MS1687 See Illustration LIFT CYLINDER/ TS1013 - lift

2

11H15

GREASE FITTING

3

6700235

HOSE

4

6700234

HOSE

5

6700242

HOSE

6

6578774

HOSE

7

6578773

HOSE

8

6704130

TUBE

9

6703588

TUBE

10

CYLINDER See Illustration TILT CYLINDER/ TS1098 See Illustration TILT CYLINDER/ TS1012 - tilt

11

10H25

FITTING, GREASE 5

12

6701893

CLAMP

13

872229

WASHER

14

85D5

NUT 5

15

10C528

BOLT

16

6579668

TUBE

17

6579667

TUBE

18

6579670

TUBE

18

6705953

TUBE

18

6705953

TUBE

19

6579671

TUBE

19

6705952

TUBE

19

6705952

TUBE

20

17C540

BOLT

21

6701892

CLAMP

22

6502203

CLAMP

23

6704745

TUBE

24

12H15

FITTING, GREASE 5 for RH lift cylinder rod end

25

79K10

O RING 10

26

84G3724

BOLT Was 84G003728B - B

27

15K7

FITTING W/Ref. 25

28

17C544

BOLT

29

59D6

NUT

30

6569146

TEE W/Ref. 25

31

6704743

TUBE

32

87F7

UNION

33

6579676

TUBE

34

6579677

TUBE

35

17C528

BOLT

36

6579692

MOUNT valve

37

17C616

BOLT 5

38

85D6

NUT, 5

39

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ MS1701 See Illustration HYDRAULIC CONTROL VALVE/ TS1008

40

6704744

TUBE

41

6579675

TUBE

41

6579675

TUBE

42

45K7

CONNECTR

42

45K7

CONNECTR

43

6579674

TUBE

43

6579674

TUBE

44

6578183

TEE W/Ref. 25

45

6702548

PAD clamp
